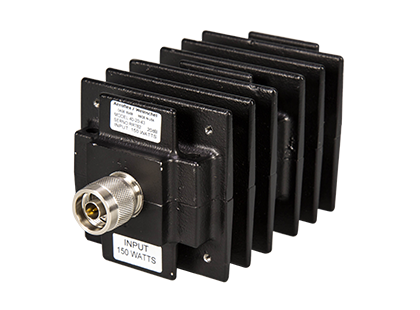

Attenuator 3-1010-124
The Anritsu 3-1010-124 is a high-power, fixed 40 dB RF attenuator designed to reduce signal levels in transmission lines while maintaining impedance matching and minimizing signal distortion.
Key Features
- Ideal for reducing signal strength without introducing variable attenuation
- Supporting high-power RF applications
- Suitable for a broad spectrum of RF needs
- N(f) (female) on input side and N(m) (male) on output side, configured for uni-directional transmission
Technical Specifications
| Model | 3-1010-124 |
|---|---|
| Insertion Loss | Fixed attenuation of 40 dB at input-to-output |
| Rated Input Power | Up to 100 watts |
| Frequency Range | DC (0 Hz) up to 8.5 GHz |
| Connector Configuration | N-female (input) to N-male (output) |
| Directionality | Uni-directional design, ensuring attenuation in one direction only |
