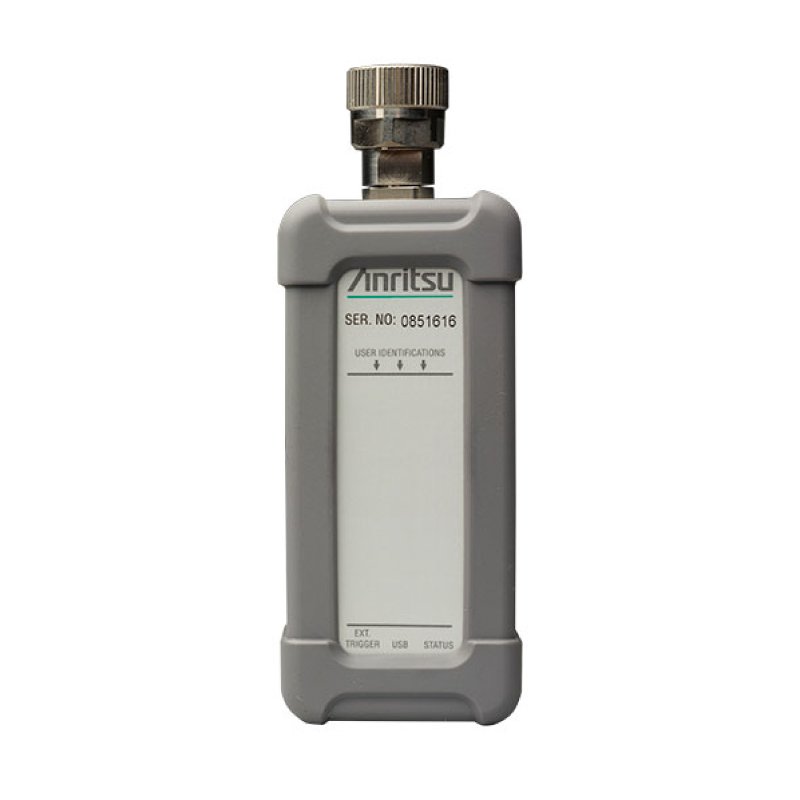

MA24108A Power Sensor
The Anritsu MA24108A power sensor is designed to provide accurate average power measurements from 10 MHz to 8 GHz over 60 dB of dynamic range. The sensor employs a "dual path" architecture that provides (similar to thermal sensor) True-RMS measurements over the entire frequency and dynamic range, enabling users to make highly accurate average power measurements for CW, multi-tone, and digitally modulated signal up to 8 GHz. The sensors have internal and external triggering capability that facilitates individual slot power measurements of TDMA waveforms as well as burst power measurements of periodic and non-periodic waveforms.
Key Features
- Broad frequency range (10 MHz to 8 GHz)
- True RMS measurements
- NIST Traceable calibrations
- Compatible with Anritsu handhelds

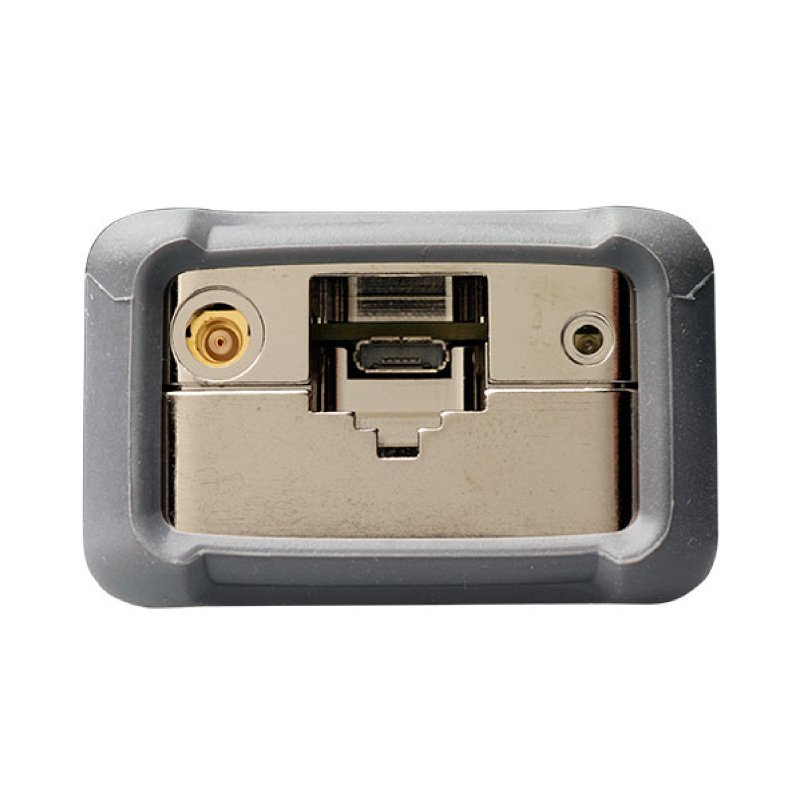

- Built-in internal and external trigger (only used with PC)
- High power handling (+33 dBm)
- 1 mW calibration need eliminated
- Worldwide calibration and service centers
Technical Specifications
| Frequency Range | 10 MHz to 8 GHz |
|---|---|
| Dynamic Range | -40 dBm to +20 dBm |
| SWR | <1.17, 10 MHz to 150 MHz <1.12, 150 MHz to 2 GHz <1.22, 2 GHz to 8 GHz |

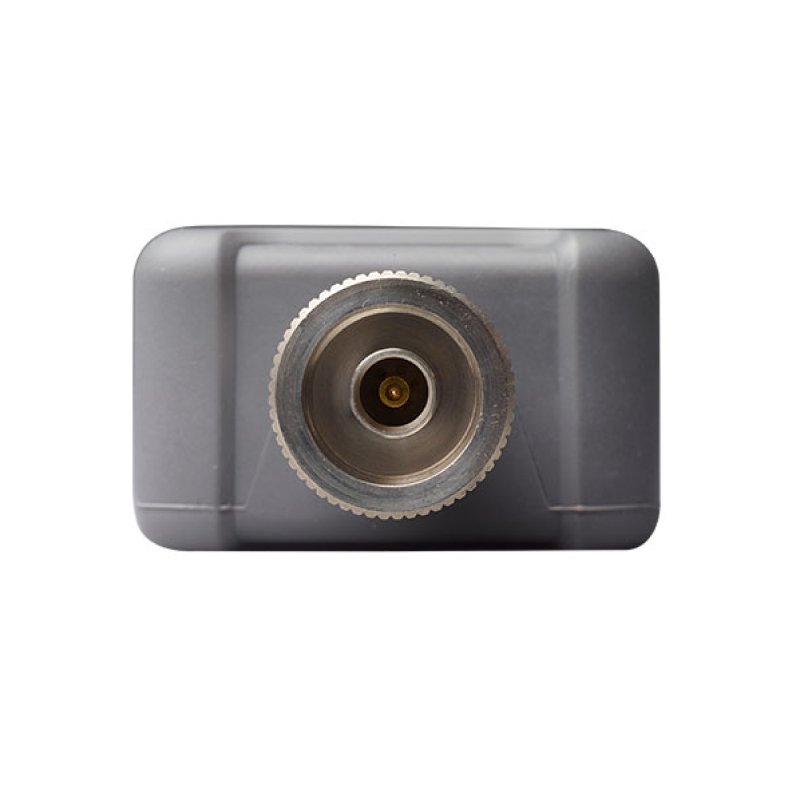

| RF Connector | N(m) |
