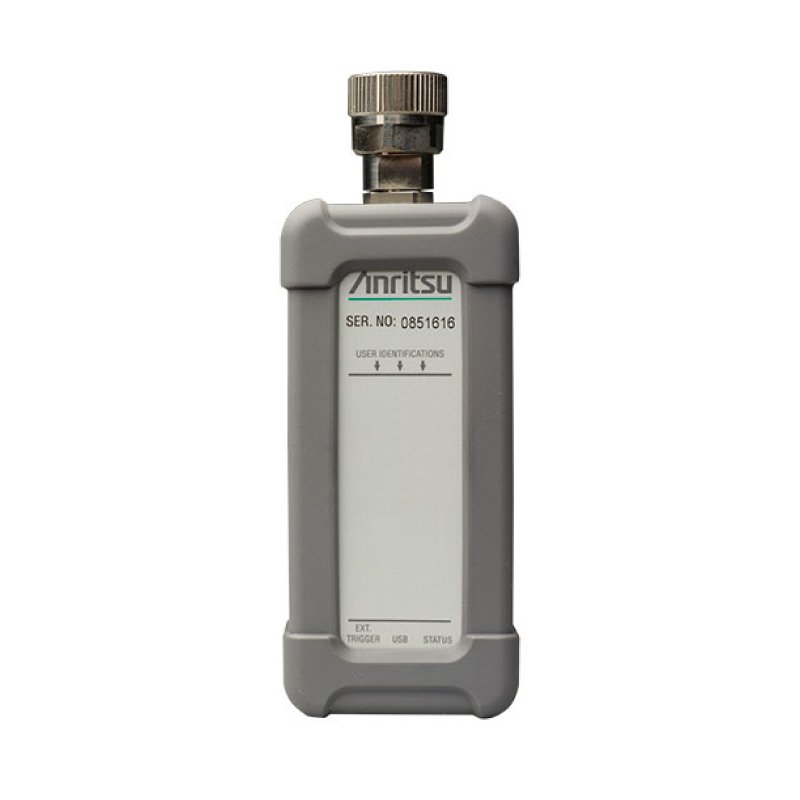

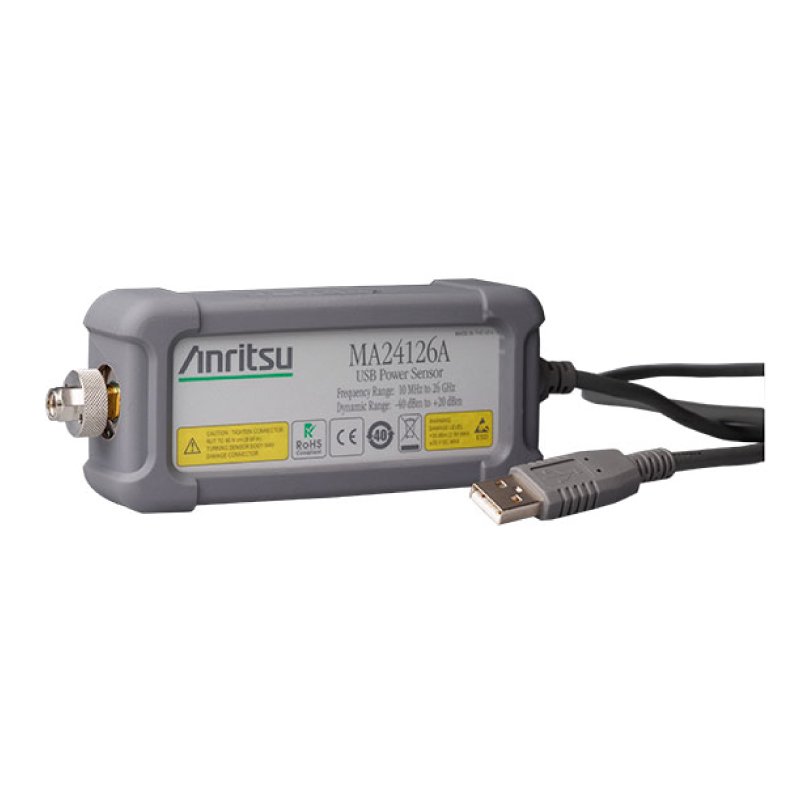

MA24126A Microwave USB Power Sensor
The Anritsu MA24126A Microwave USB Power Sensor is designed to provide accurate average power measurements from 10 MHz to 26 GHz over 60 dB of dynamic range. It employs a "dual path" architecture that provides True-RMS measurements over the entire frequency and dynamic range (similar to thermal sensor), enabling users to make highly accurate average power measurements for CW, multi-tone, and digitally modulated signals up to 26 GHz. The sensor has an internal and external triggering capability that facilitates individual slot power measurements of TDMA waveforms, as well as burst power measurements of periodic and non-periodic waveforms.
Key Features
- Broad frequency range (10 MHz to 26 GHz)
- True RMS measurements
- NIST Traceable calibrations
- High power handling (+33 dBm)
- 1 mW calibration need eliminated
Technical Specifications
| Frequency Range | 10 MHz - 26 GHz |
|---|---|
| Dynamic Range | -40 dBm to +20 dBm |
| SWR | <1.17, 10 MHz to 150 MHz <1.12, 150 MHz to 2 GHz <1.22, 2 GHz to 12 GHz <1.25, 12 GHz to 18 GHz <1.35, 18 GHz to 26 GHz |
| Linearity *1 | <3% |

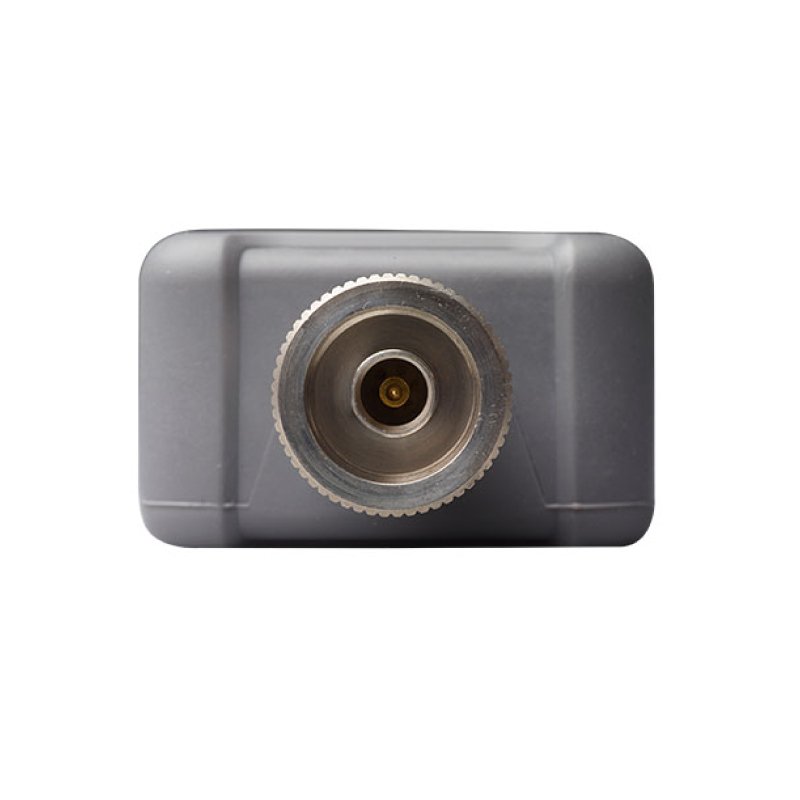

| RF Connectors | K (m) |
