MA24400A USB Peak Power Sensors

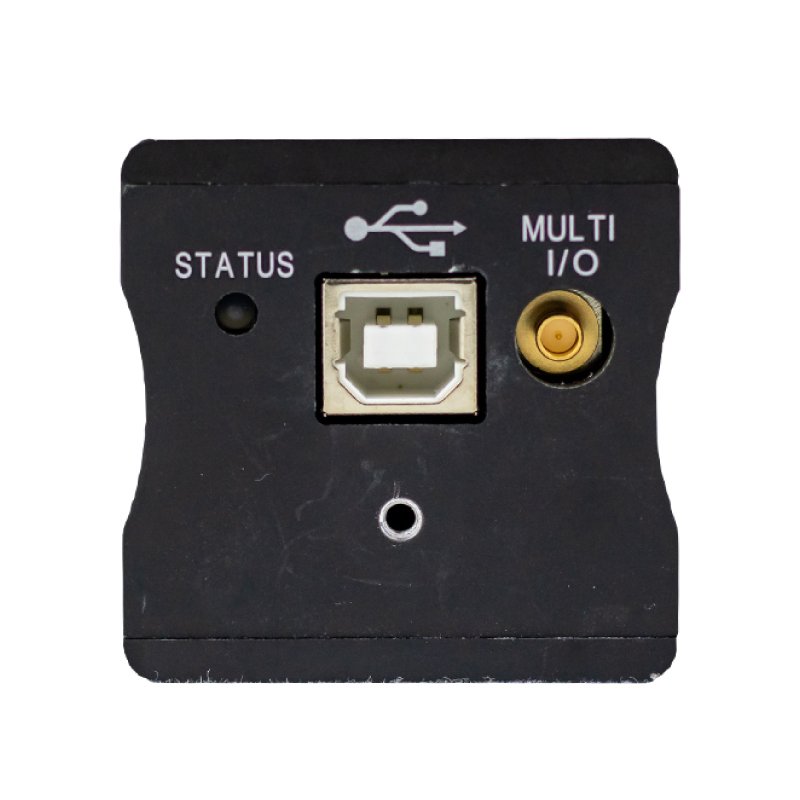

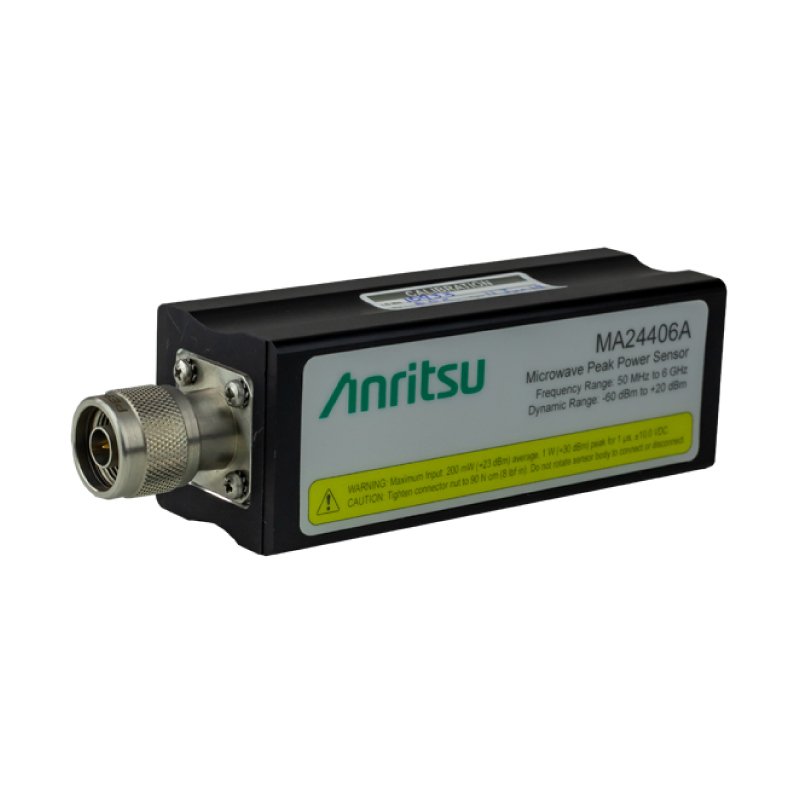

The Anritsu MA24400A USB Peak Power Sensor are designed to meet the challenges of signal measurement and characterization in a complex world of wireless communications. With industry leading rise time and video bandwidth (VBW) of up to 195 MHz (sensor dependent), Anritsus USB peak power sensors are able to measure the peak power of wideband modulated signals, like 802.11ac, as well as pulses as narrow as 10 ns.
Key Features
- 6 GHz, 8 GHz, 18 GHz, and 40 GHz models
- Up to 195 MHz VBW and 3 ns rise time
- 100,000 measurements per second
- Real-time processing of power readings
- 100 MS/s continuous and 10 GS/s effective sampling rates
- 100 ps time resolution for rising/falling edge measurements
- Full pulse profiling
- Crest factor, CCDF and statistical measurements
Technical Specifications
| Frequency Models | Available in 6 GHz, 8 GHz, 18 GHz, and 40 GHz models |
|---|---|
| Video Bandwidth (VBW) | Up to 195 MHz depending on sensor model |
| Rise Time | As fast as 3 ns |
| Measurement Speed | Up to 100,000 measurements per second |
| Sampling Rate | 100 MS/s continuous and 10 GS/s effective sampling rates for fast signal capture |
| Time Resolution | 100 ps time resolution for rising and falling edge measurements |
| Pulse Profiling | Capability for full pulse profiling of signals |
| Statistical Measurements | Supports crest factor, Complementary Cumulative Distribution Function (CCDF), and other statistical measurements |
| Application | Designed for peak power measurement and characterization of wideband modulated signals such as 802.11ac and pulses as narrow as 10 ns |
