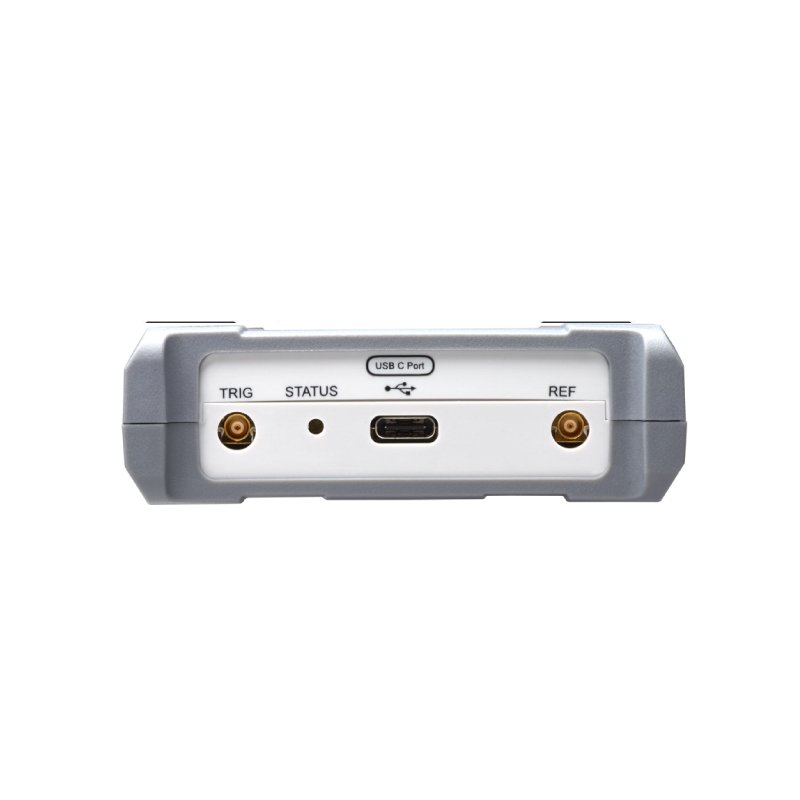

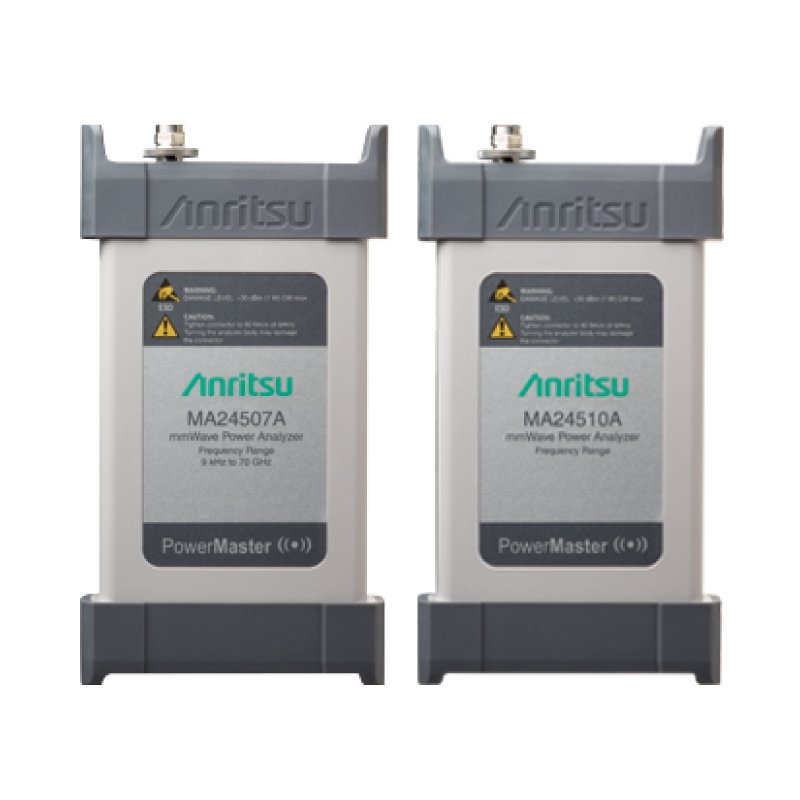

MA245xxA Power Master Frequency Selectable
The Anritsu Power Master is an ultra-portable, USB-based mmWave power analyzer that provides simple, numeric and frequency selective average power RF measurements. The Power Master features two frequency coverage options between 9 kHz to 70 GHz and 9 kHz to 110 GHz. The Power Master provides very broadband power range coverage with a floor as low as -90 dBm.
Key Features
- Low power capability to measure signals as low as 90 dBm
- Excellent for over-the-air testing, especially with mmWave signals that have high propagation loss
- User settings to control measurement speeds and noise floor
- Channel Monitor mode in PowerXpert for monitoring up to six frequency channels at once
- Power Hunter mode in PowerXpert for searching up to six signals within a frequency range
- Mounting holes for direct mounting to connect probes for over-the-air or on-wafer testing
Technical Specifications
| Type | Power Master Frequency Selectable |
|---|---|
| Category | rf-microwave-measuring |
| Frequency Coverage | Two options: 9 kHz to 70 GHz and 9 kHz to 110 GHz |
| Power Measurement Range | Down to -90 dBm |
| Measurement Capability | Frequency selective average power RF measurements |
| Special Application | Ideal for over-the-air testing, especially mmWave signals with high propagation loss |
| User Controls | Adjustable measurement speeds and noise floor settings |
| Modes | Power Hunter mode searches up to six signals within a specified frequency range |
| Physical Features | Mounting holes for direct mounting to connect probes for over-the-air or on-wafer testing |
| Portability | Ultra-portable USB-based design suitable for field and laboratory use |
