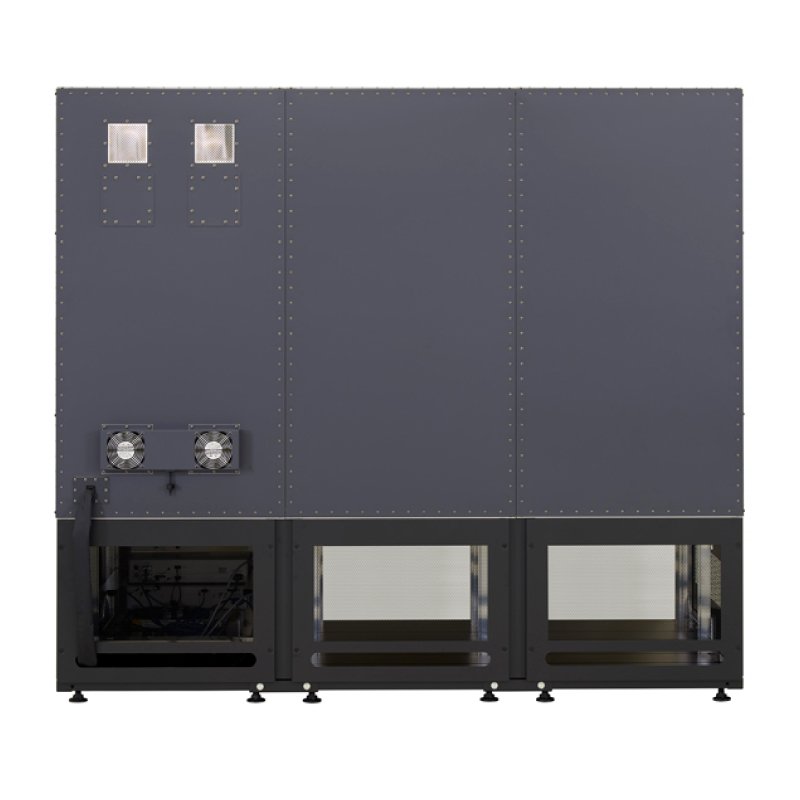

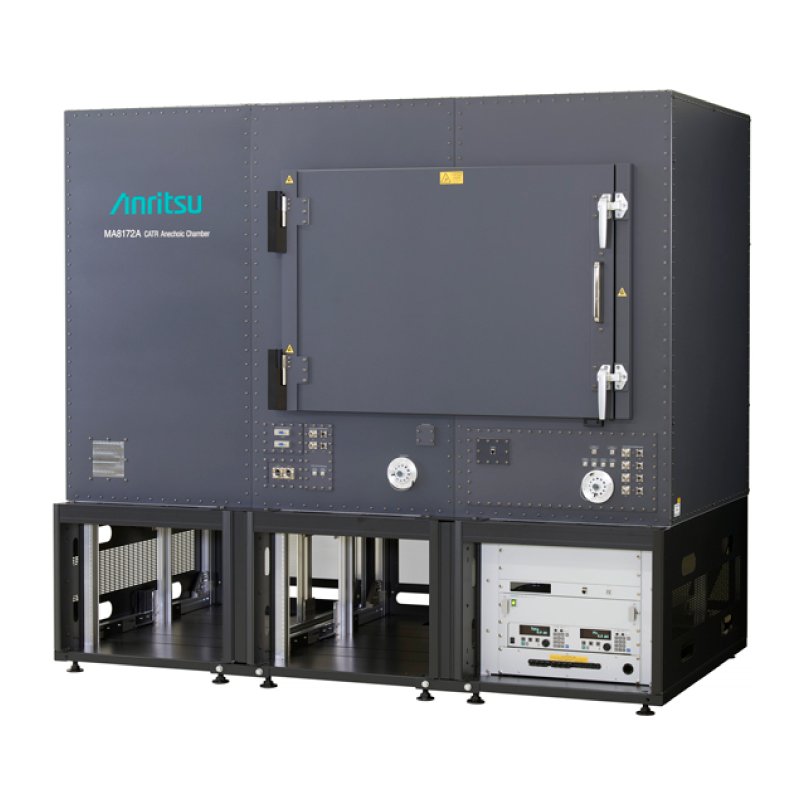

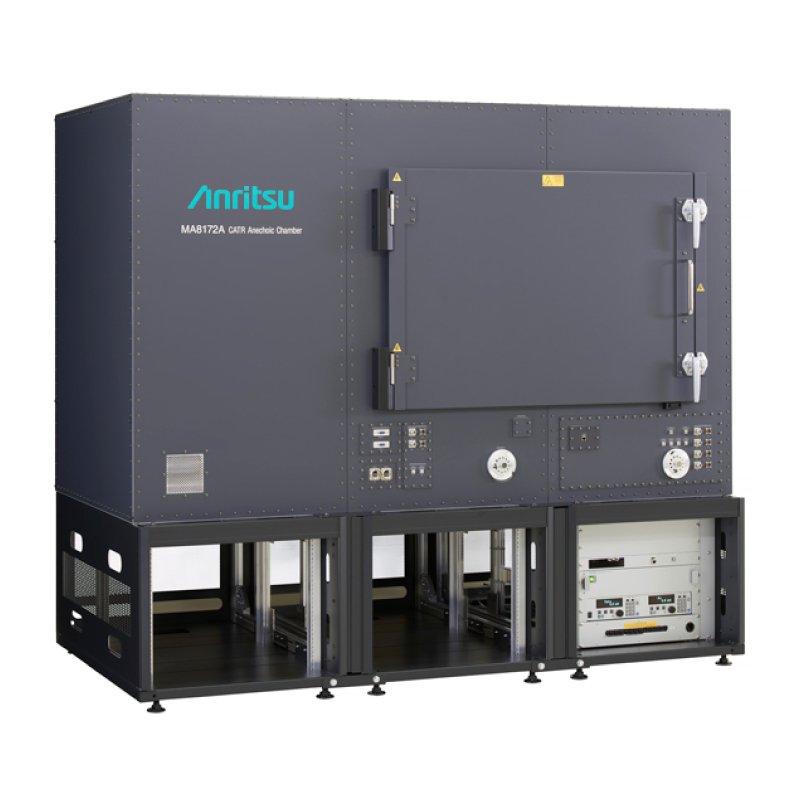

MA8172A CATR Anechoic Chamber
The Anritsu CATR Anechoic Chamber MA8172A uses the 3GPP-compliant Compact Antenna Test Range (CATR) method to implement 5G NR OTA tests in a small space. It can be used for mmWave development and conformance tests of 5G NR chipsets, devices, and UE. Transport is easy because it can be disassembled into three component parts, and assembly and installation require less than 5 days, greatly shortening the introductory setup time.
Key Features
- 3GPP-compliant Compact Antenna Test Range (CATR) method adopted
- For mmWave development and conformance tests of 5G NR chipsets, devices, and UE
- Easy transportation with dividing into three component parts, shortening the introductory setup time
- Full support for Alignment Option 1/2/3
- Simple mounting/dismounting of test terminal, and high reproducibility of mounting position
- Supports FR2 temperature test (temperature for extreme conditions: -10°C to +55°C)
Technical Specifications
| Type | CATR Anechoic Chamber |
|---|---|
| Category | mobile-wireless-communications |
| Compliance | 3GPP-compliant Compact Antenna Test Range (CATR) method adopted |
| Applications | For mmWave development and conformance tests of 5G NR chipsets, devices, and UE |
| Portability | Easy transportation by dividing into three component parts, greatly shortening introductory setup time |
| Alignment Support | Full support for Alignment Option 1, 2, and 3 |
| Mounting | Simple mounting/dismounting of test terminal with high reproducibility of mounting position |
| Environmental Testing | Supports FR2 temperature test with extreme condition range from -10°C to +55°C |
| Setup Time | Assembly and installation require less than 5 days |
