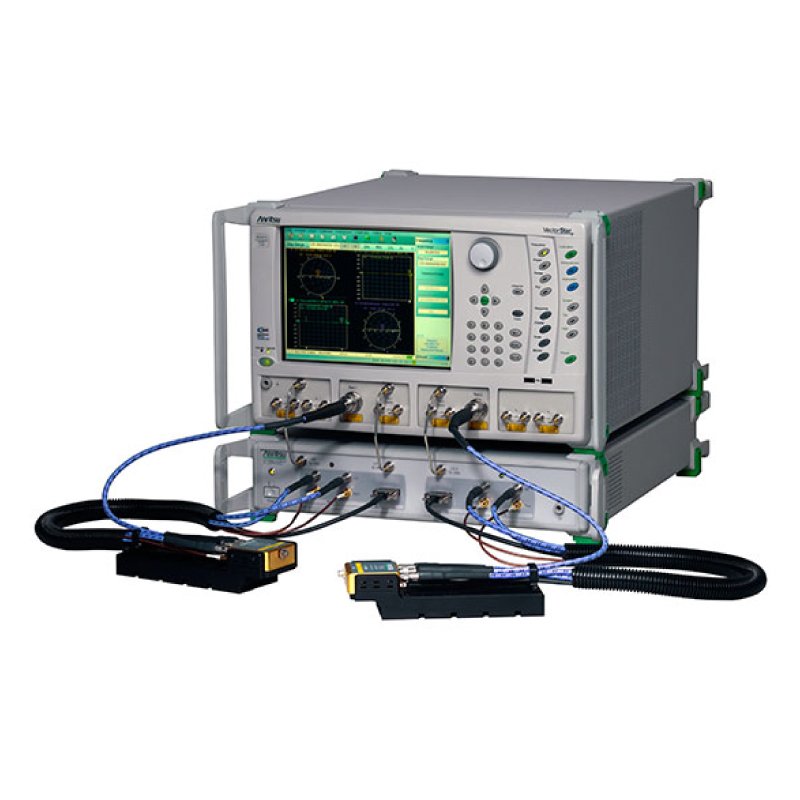

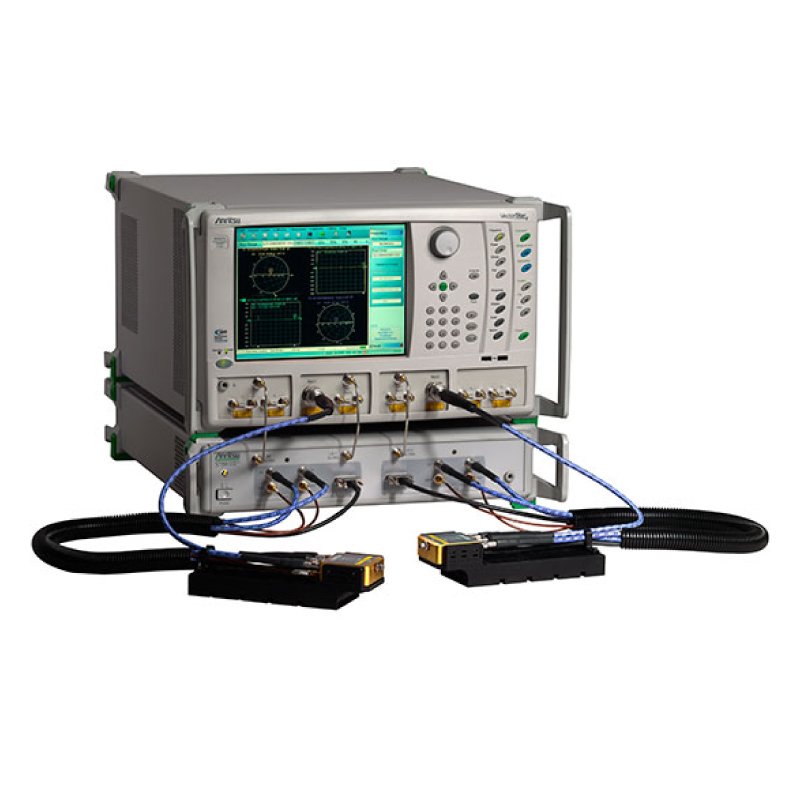

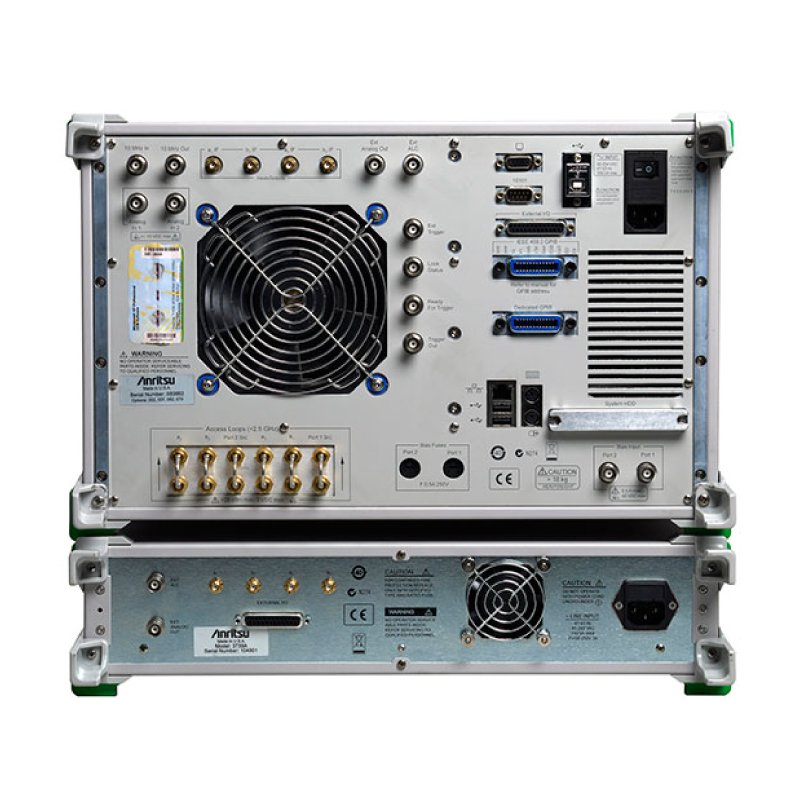

ME7838 Series VectorStar Broadband VNA
The Anritsu VectorStar ME7838 broadband series system provides high performance in a compact mmWave module utilizing the Anritsu Nonlinear Transmission Line (NLTL) technology, with system coverage from 70 kHz to 110, 125, 145, and 220 GHz. The ME7838 series is the only broadband system with positive raw directivity in multiple bands. The result is better calibration and measurement stability with significantly longer time between calibrations for accurate measurements and improved productivity.
Key Features
- The ME7838AX or ME7838EX version can easily be upgraded to 145 GHz and to 220 GHz
- All versions may be configured to include banded millimeter-wave modules up to 1.1 THz
- Industry-best calibration and measurement stability: 0.1 dB vs 0.6 dB over 24 hrs.
- All versions support the 3744x-Rx receiver for noise figure measurements, including the ability to characterize differential noise figure, to 125 GHz
- Compact, lightweight mmWave modules (0.6 lb vs 7+ lbs and 1/50 the volume) offer low cost installation on smaller probe stations
Technical Specifications
| Frequency Range | 70 kHz to 110 GHz / 125 GHz / 145 GHz / 220 GHz (model dependent) |
|---|---|
| Upgrade Options | Upgradable ME7838AX and ME7838EX versions to 145 GHz and 220 GHz; optional banded mmWave modules up to 1.1 THz |
| Raw Directivity | Positive raw directivity across multiple frequency bands |
| Calibration Stability | 0.1 dB variation over 24 hours (compared to 0.6 dB typical industry standard) |
| Noise Figure Measurement | Supports 3744x-Rx receiver for noise figure and differential noise figure characterization up to 125 GHz |
| Module Size and Weight | Compact mmWave modules weighing approximately 0.6 lb (compared to conventional 7+ lb modules), with volume reduction of approximately 50 times |
| Applications | Broadband vector network analysis, millimeter-wave device characterization, noise figure measurements |
| Measurement Benefits | Improved calibration and measurement stability, longer calibration intervals, enhanced productivity |
| Installation | Low cost installation on smaller probe stations enabled by lightweight modules |
| Control Software | Anritsu VectorStar software platform |
