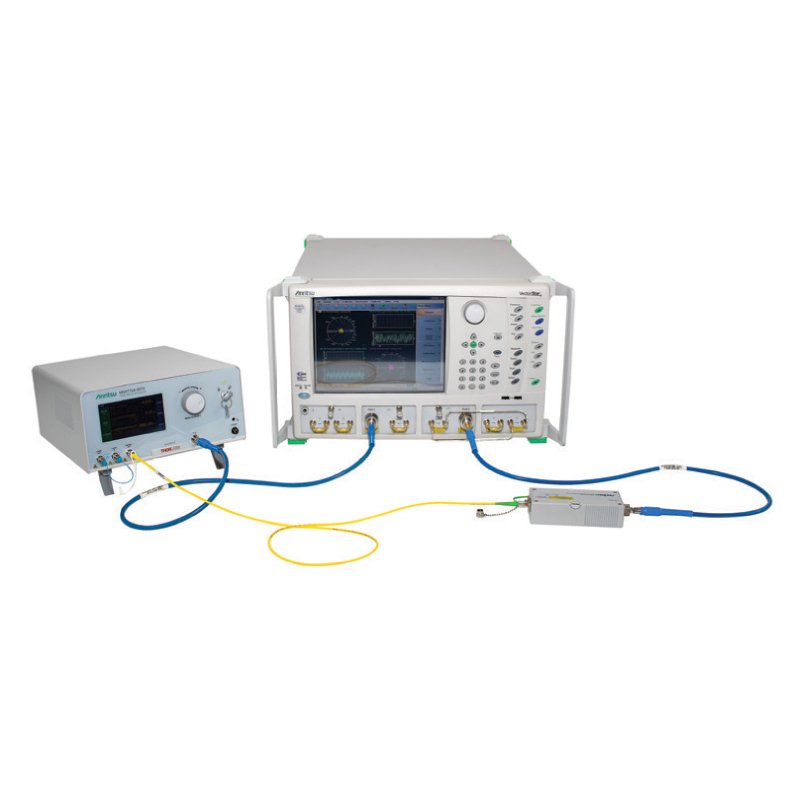

ME7848A VectorStar Opto-Electronic Network Analyzers
The Anritsu VectorStar ME7848A opto-electronic network analyzer (ONA) provides a modular approach to optical measurements of O/E, E/O, and O/O devices operating at 850, 1310, and 1550 nm wavelengths. There are two configurations available: the VectorStar ME7848A-100 series includes the MN4765B O/E calibration module and the VectorStar ME7848A-200 series adds the MN4775A E/O converter.
Key Features
- Fast and accurate opto-electronic measurements
- MN4765B O/E calibration module
- MN4775A E/O converter
- National Institute of Standards and Technology (NIST) derived characterization
- Internal VNA de-embedding for simplified calibration
- Excellent stability and repeatability
- Modularity and upgradeability
Technical Specifications
| Wavelength Range | 850 nm, 1310 nm, 1550 nm |
|---|---|
| Configurations | ME7848A-100 series (with MN4765B O/E calibration module), ME7848A-200 series (adds MN4775A E/O converter) |
| Measurement Types | Optical-to-Electrical (O/E), Electrical-to-Optical (E/O), Optical-to-Optical (O/O) |
| Calibration | NIST-derived characterization standards, Internal VNA de-embedding |
| Stability | Excellent stability and high repeatability for precise measurements |
| Modularity | Modular architecture allowing upgrades and customization |
| Applications | High-speed optical device testing, component characterization, research and development |
| Control Software | Anritsu VectorStar common software platform |
