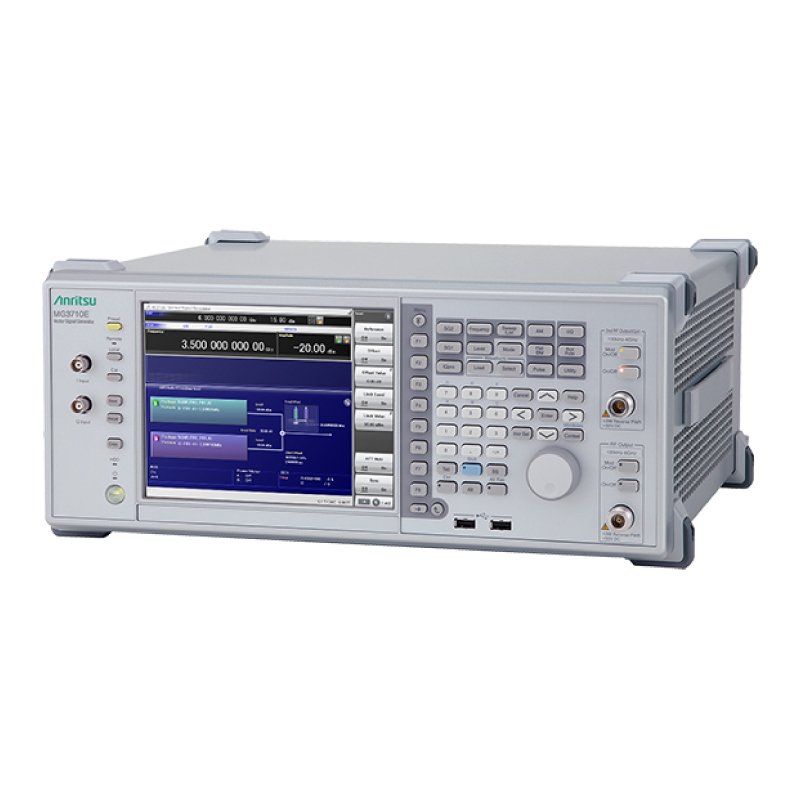

MG3710E RF/Microwave Signal Generator
Signal purity determines quality of measurements in several applications such as radar, transceiver, ADC/DAC and components testing. Rubidium pushes the envelope in phase noise performance with its low and ultra low phase noise options. Coupled with best-in-class harmonic and spurious performance, Rubidium signal generator offers industry leading overall signal purity performance that enables customers to make more accurate measurements.
Key Features
- Very low phase noise, close in and far out
- Atomic clock frequency stability and accuracy
- Onsite level and frequency calibration
- Very low harmonic and spurious
- Quad pulse signal generation and pulse sweep
Technical Specifications
| Frequency Range | 9 kHz – 20 GHz |
|---|---|
| Output Power Range | -130 dBm to +10 dBm (typical) |
| Phase Noise | -140 dBc/Hz @ 10 kHz offset (varies by frequency) |
| Frequency Stability | Atomic clock Rubidium standard, typically 5 × 10⁻¹¹ or better |
| Harmonic Distortion | < -60 dBc |
| Spurious Signals | < -90 dBc |
| Modulation Types | CW, AM, FM, PM, Pulse modulation, Pulse sweep |
| Pulse Rise/Fall Time | Typically < 8 ns |
| Level and Frequency Calibration | Onsite calibration supported |
| Output Connector | Type N female (usually) |
| Remote Control Interface | USB, LAN, GPIB |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Dimensions (W×H×D) | Approximately 430 × 133 × 460 mm |
| Weight | About 15 kg |
