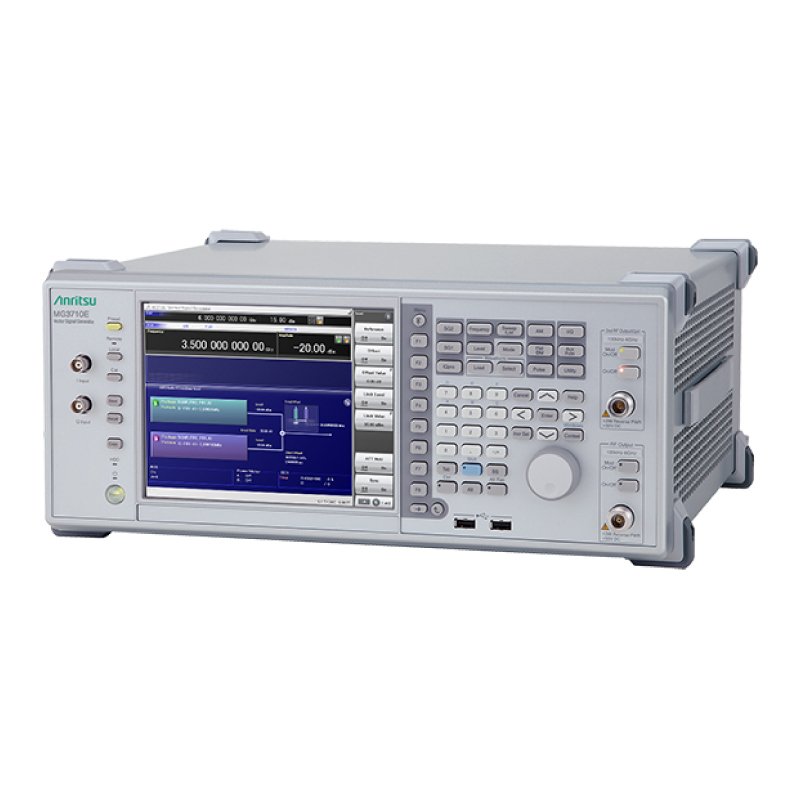

MG3710E Vector Signal Generator
The Vector Signal Generator MG3710E is a best-of-class, multi-function, signal generator with excellent RF and baseband performance. The MG3710E features wideband vector modulation and offers built-in baseband waveform generation with large-capacity memory to ensure maximum versatility. It supports all key mobile communications and wireless LAN standards, and it also has the exceptional performance required for emerging and proprietary wireless communications technologies. Dual RF and Dual Waveform options enable a single MG3710E to output up to four independently modulated signals. The MG3710E makes it easy to implement complex test scenarios that would normally require multiple synchronized signal generators.
Key Features
- Vector Signal Generator supporting frequencies of 100 kHz to 2.7 / 4 / 6 GHz
- ACLR: -68 dBc (W-CDMA, Test-Model 1, 64DPCH, ≤+5 dBm)
- Output level up to +23 dBm (CW, 400 MHz to 3 GHz)
- Switching Time: <600 µs (List/Sweep mode)
- Built-in wideband (160 MHz / 120 MHz) baseband signal generator
- Dual RF (Optional) provides two independent RF outputs
- Dual Waveform Memory (Optional) enables two independently modulated signals per RF output
- Generates and outputs modulation signals of various communication systems such as 5G NR (sub-6 GHz) TDD/FDD, LTE-Advanced TDD/FDD (Optional)
Technical Specifications
| Frequency Range | 100 kHz to 2.7/4/6 GHz (1stRF Opt-032/034/036), 100 kHz to 2.7/4/6 GHz (2ndRF Opt-062/064/066) |
|---|---|
| High Power Output | +23 dBm (CW, 400 MHz to 3 GHz) |
| SSB Phase Noise | <-131 dBc/Hz (typ.) (1 GHz, 20 kHz offset, CW) |
| ACLR | -68 dBc (W-CDMA, Test-Model 1, 64DPCH, +5 dBm) |
| Switching Speed | <600 µs (frequency/amplitude, List/Sweep mode) |
