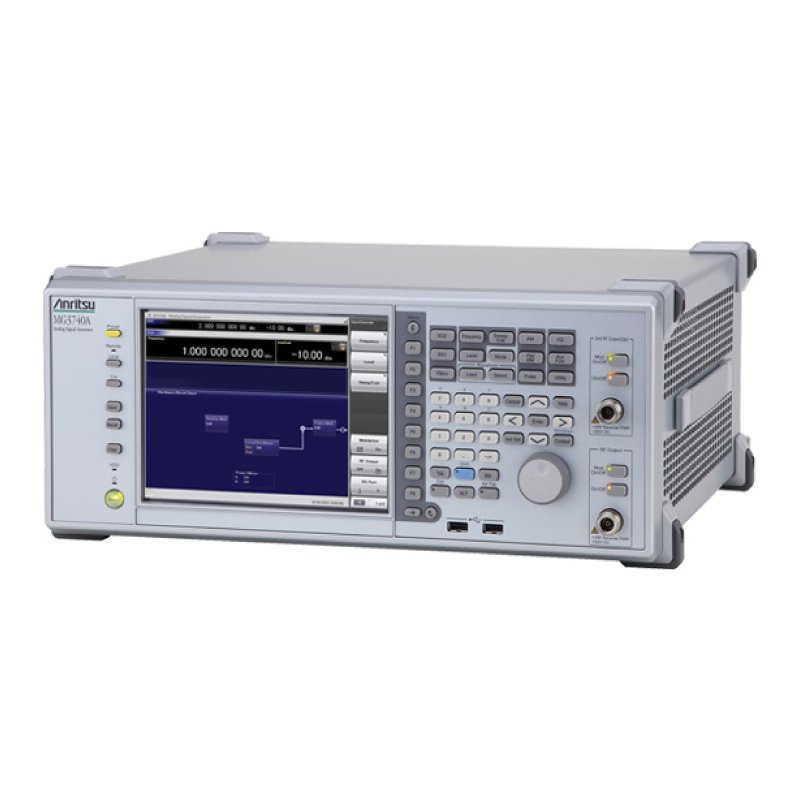

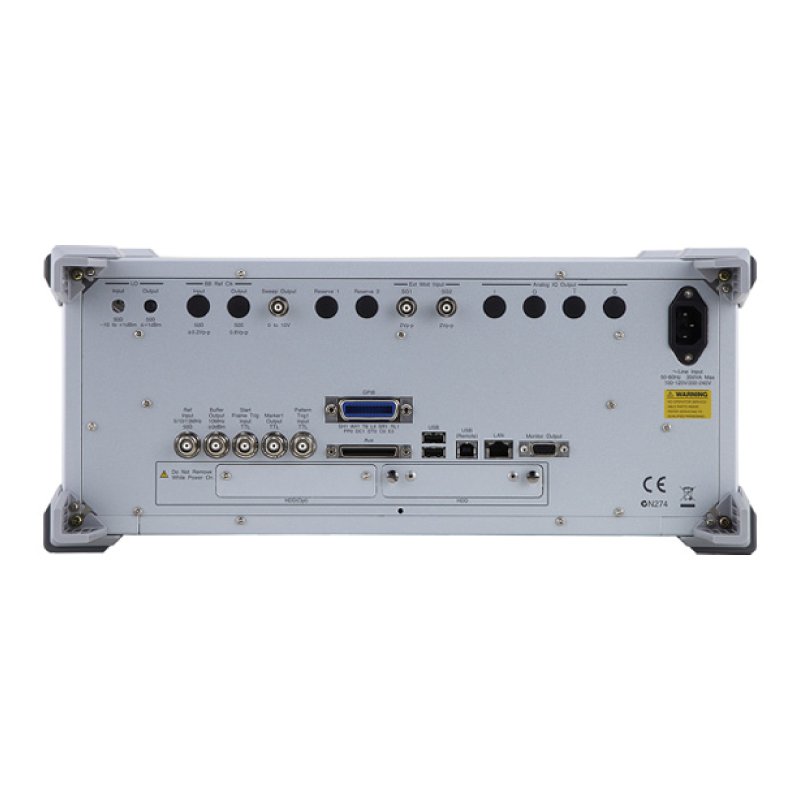

MG3740A Analog Signal Generator
The Anritsu Analog Signal Generator MG3740A has excellent RF specifications, including SSB phase noise, output level, etc., and versatile modulation functions (AM/FM/ΦM/Pulse). The Anritsu MG3740A is the ideal solution for high-purity signal source for testing analog radio Rx characteristics. Moreover, adding the digital modulation option supports generation of narrowband digital modulation signals. Supports narrowband digital modulation as well as CW and analog modulations.
Key Features
- Analog Signal Generator supporting frequencies of 100 kHz to 2.7 / 4 / 6 GHz
- High-purity signal source for testing analog radio
- Built-in AM / FM / ΦM / Pulse modulation function (Standard)
- Two RF outputs using Dual-RF (Optional)
- Expandable to narrowband digital modulation signal generator (Optional)
Technical Specifications
| Frequency Range | 100 kHz to 2.7 GHz / 4 GHz / 6 GHz (depending on model) |
|---|---|
| Signal Purity | High-purity signal source ideal for testing analog radio receiver characteristics |
| Modulation Functions | Built-in AM, FM, ΦM, and Pulse modulation (standard) |
| RF Outputs | Two RF outputs available using Dual-RF option |
| Digital Modulation | Expandable to support narrowband digital modulation signals with optional module |
| Applications | Signal generation for analog radio receiver testing including narrowband digital modulation |
