Signal & Spectrum Analyzers

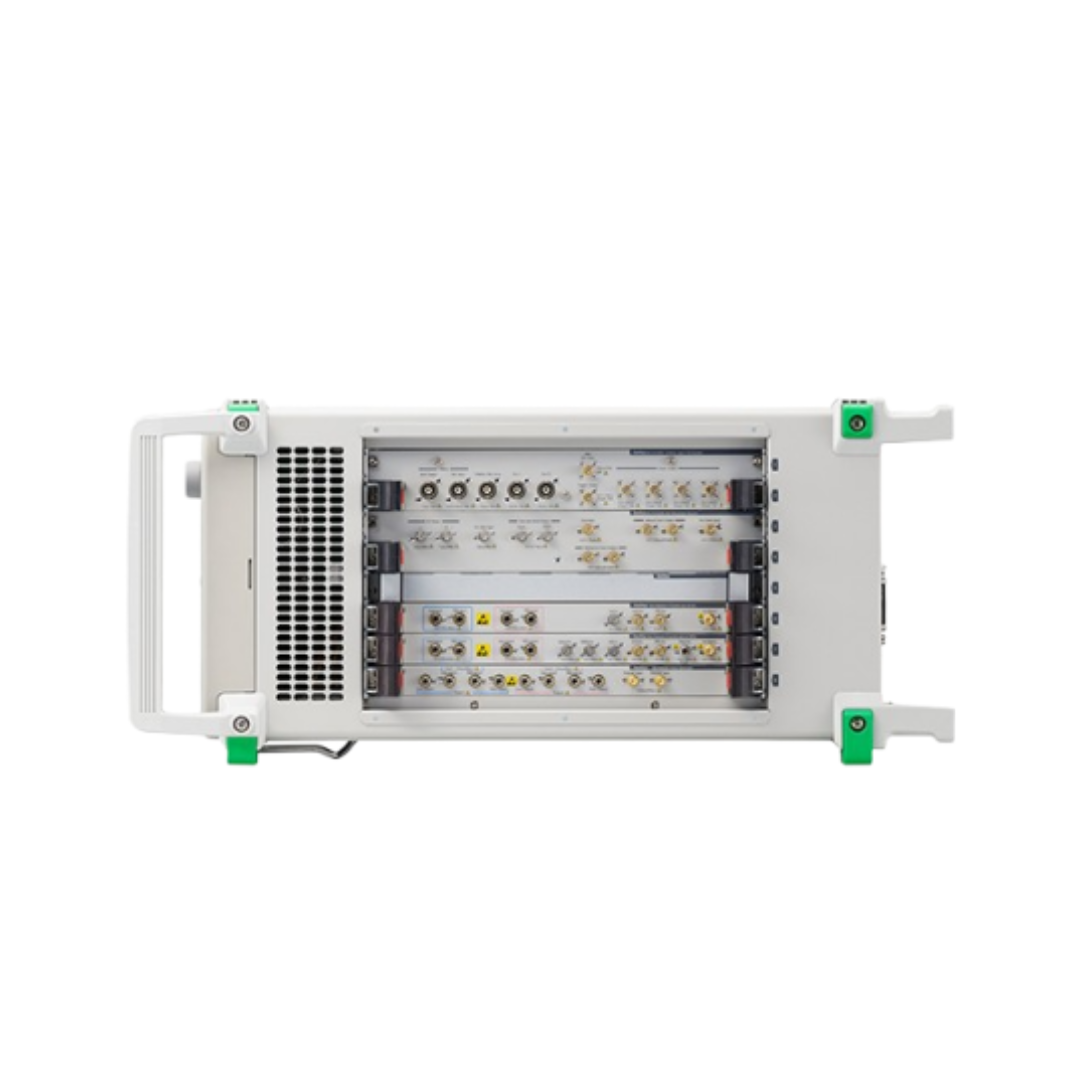

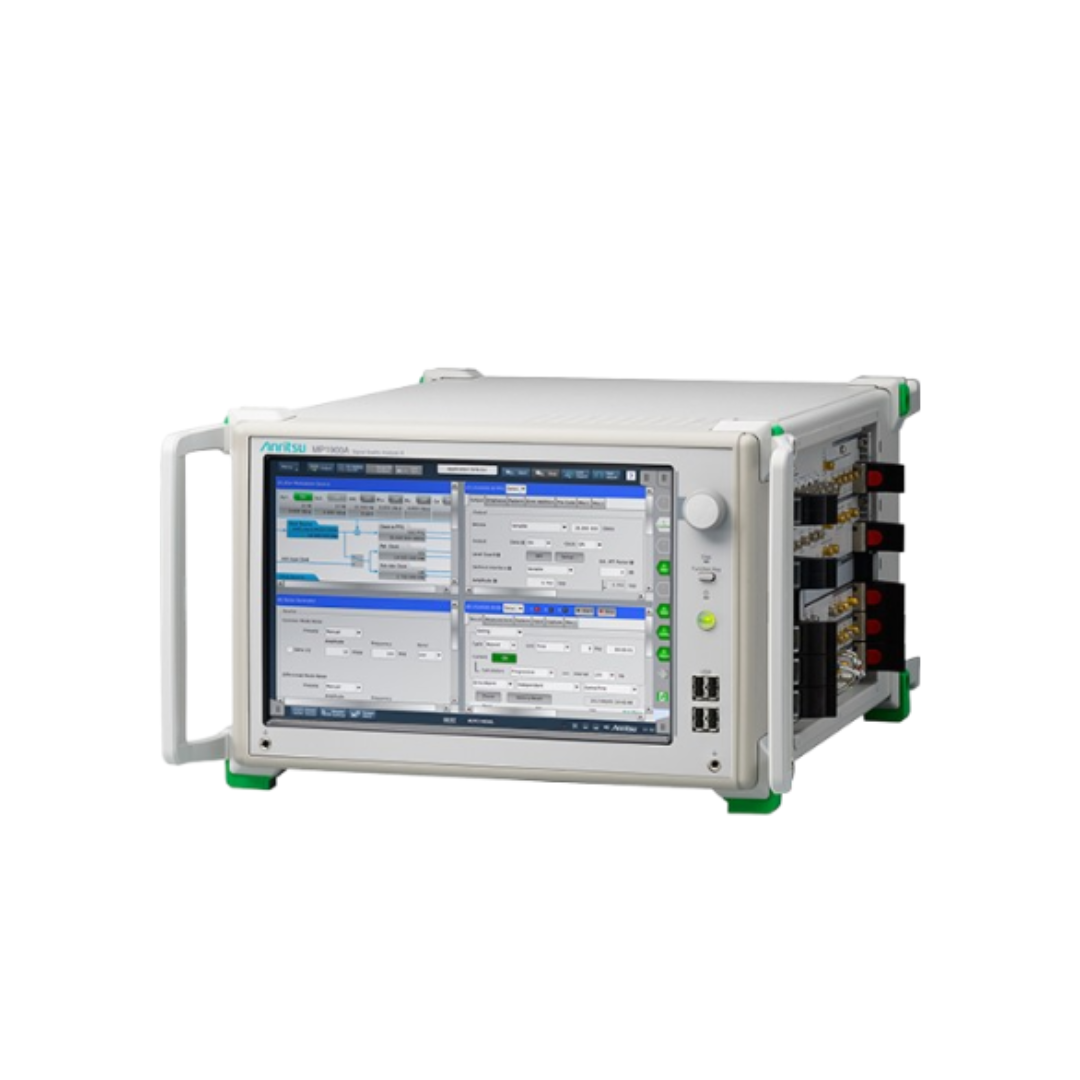

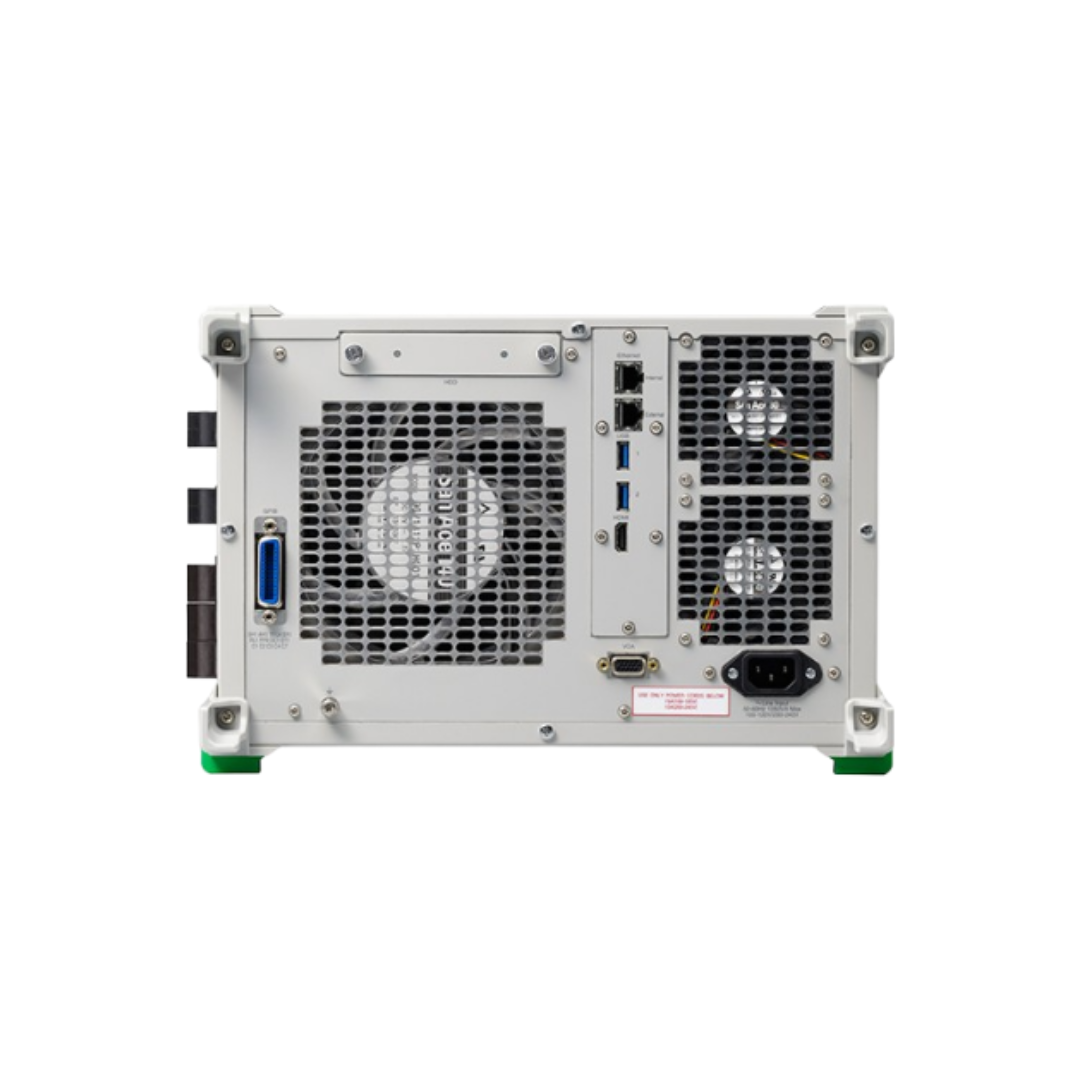

MP1900A
MP1900A series is an 8-slot modular, high-performance BERT supporting all-in-one Physical layer measurements of both high-speed network interfaces as NRZ and PAM4, and PCI Express/USB, bus interfaces
Key Features
- Supports NRZ & PAM4 signal testing
- Modular 8-slot scalable architecture
- High-precision BER analysis
- Advanced Jitter generation & tolerance testing
- Built-in Noise Injection capabilities
- Multi-standard Compliance testing support
- Signal Integrity validation for high-speed interfaces
- Ideal for AI, Data Centers & Optical Modules
Technical Specifications
| Display | 12.1-inch WXGA LCD (1280 × 800) |
|---|---|
| Operating System | Windows 10 |
| Remote Interface | GPIB, LAN |
| External Interfaces | USB ×6, VGA ×1, HDMI ×1 |
| Power Supply | 100–120 VAC / 200–240 VAC, 50–60 Hz |
| Power Consumption | 1350 VA (Max.) |
| Dimensions | 340 (W) × 222.5 (H) × 451 (D) mm |
| Weight | Approx. 20 kg (excluding modules) |
| Data Rate Support | Up to 64.2 Gbaud |
| Transmission Capacity | Up to 512 Gbit/s |
| Signal Formats | NRZ & PAM4 |
| Applications | Signal Integrity Analysis, BERT, PCI Express®, USB, Thunderbolt™, Ethernet, Fibre Channel, SAS, DisplayPort™, CXL, Optical Modules & High-Speed Interfaces. |
| Module Slots | 8 |
| Architecture | 8-Slot Modular Mainframe |
| Product Type | Signal Quality Analyzer-R (High-Performance BERT) |
