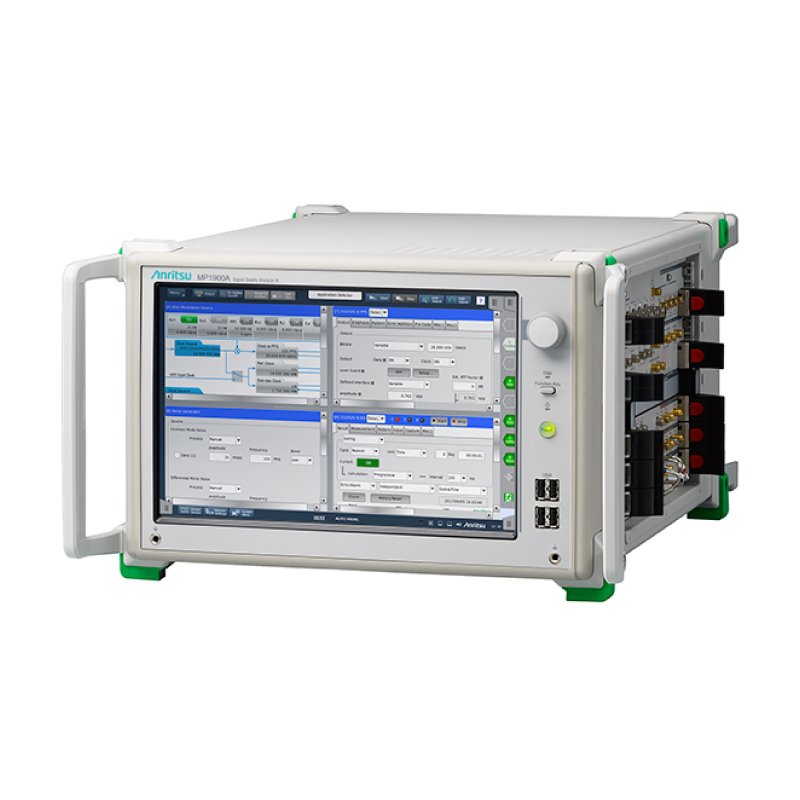

MP1900A Signal Quality Analyzer
Anritsu MP1900A series is an 8-slot modular, high-performance BERT supporting all-in-one Physical layer measurements of both high-speed network interfaces as NRZ and PAM4, and PCI Express/USB, bus interfaces
Key Features
- 512 Gbit/s max. transmission capacity
- PAM4 PPG/ED (MU196020A/MU196040A) Baud rate of 2.4 to 64.2 Gbaud*1 Multichannel Scalability 4ch PAM4/NRZ NEW High-speed Tr/Tf of 8.5 ps (20 to 80%) Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.) Low noise and low distortion high-quality data output 4Tap Emphasis (20-dB Range) ISI adjustment function NEW FEC pattern generation NEW Stressed margin BER < E-12*2 Built-in Clock Recovery PAM4 pattern editor and symbol error measurement
- Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
- Voltage Noise Addition function (Common/Differential/White Noise)
- Jitter Tolerance measurement using DUT BER counter function NEW

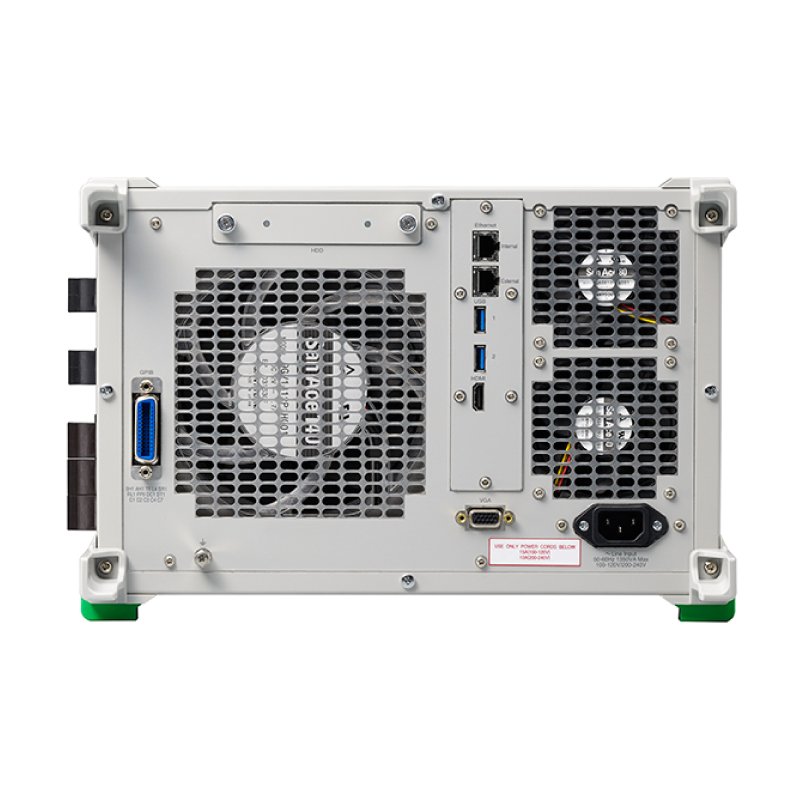

Technical Specifications
| LCD | 12.1-inch, WXGA 1280 x 800 |
|---|---|
| Remote Interfaces | GPIB, LAN |
| Module Slots | 8 |
| External Peripheral I/F | USB x6, VGA x1, HDMI x1 |
| OS | Windows Embedded Standard 7 |
| Power | 100V(ac) to 120V(ac)/200V(ac) to 240 V(ac) 50 Hz to60 Hz |
| Power Consumption | 1350 VA max. |
| Dimensions/Mass | 340 (W) x 222.5 (H) x 451 (D) mm/20 kg max. (excluding modules) |
