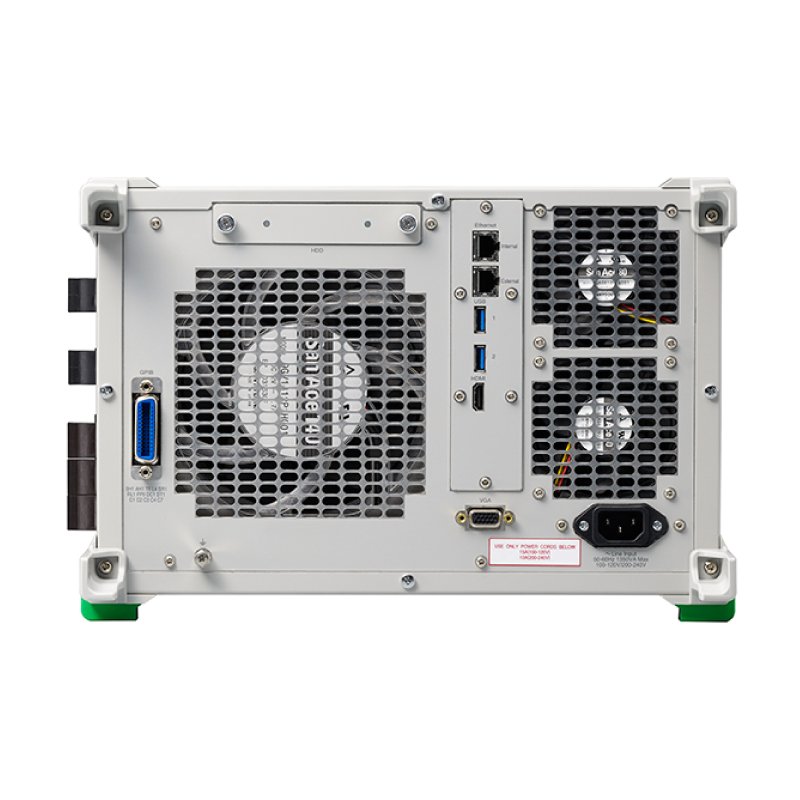

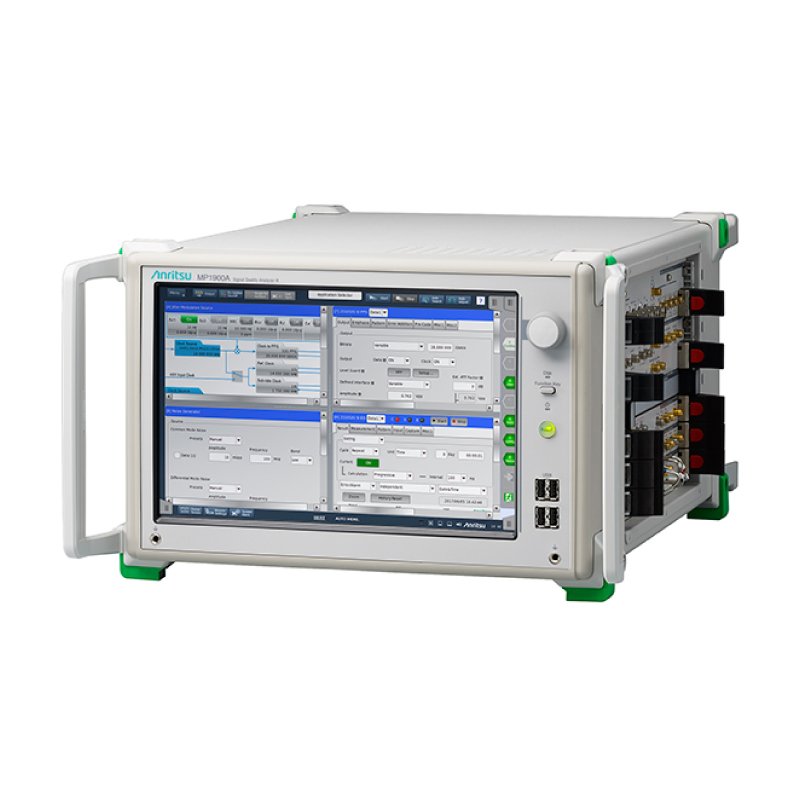

MP1900A Signal Quality Analyzer-R
Anritsu MP1900A series is an 8-slot modular, high-performance BERT supporting all-in-one Physical layer measurements of both high-speed network interfaces as NRZ and PAM4, and PCI Express/USB, bus interfaces To cope with increasing data traffic caused by the widespread popularity of smartphones and mobile terminals, data-center network interfaces are being transitioned to the faster 200 GbE/400 GbE/800 GbE standards, while communications-equipment interconnects are adopting PCI Express Gen6 supporting faster speeds of 64 GT/s; multi-channel technologies are also being deployed. Anritsus Signal Quality Analyzer-R MP1900A series is a high-performance BERT with 8 slots for modules, such as PPG, ED and Jitter/Noise Generator, to expand measurement applications supporting signal integrity analyses of ever-faster devices. In addition to Physical layer measurement functions for broadband network interfaces, the Anritsu all-in-one MP1900A supports PCI Express bus, etc., interface measurements.
Key Features
- 512 Gbit/s max. transmission capacity
- PAM4 PPG/ED (MU196020A/MU196040A)
- Baud rate of 2.4 to 64.2 Gbaud
- Multichannel Scalability 4ch PAM4/NRZ
- High-speed Tr/Tf of 8.5 ps (20 to 80%)
- Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.)
- Low noise and low distortion high-quality data output
- 4Tap Emphasis (20-dB Range)
- ISI adjustment function
- FEC pattern generation
- Stressed margin BER < E-12
- Built-in Clock Recovery
- PAM4 pattern editor and symbol error measurement
- Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
- Voltage Noise Addition function (Common/Differential/White Noise)
- Jitter Tolerance measurement using DUT BER counter function
Technical Specifications
| Type | BERT Signal Quality Analyzer |
|---|---|
| Max Transmission Capacity | 512 Gbit/s |
| Modular Slots | 8-slot modular system supporting various measurement modules (PPG, ED, Jitter/Noise Generator) |
| PPG/ED Module | PAM4 PPG/ED (MU196020A/MU196040A) |
| Baud Rate Range | 2.4 to 64.2 Gbaud |
| Channel Scalability | Multichannel support with 4 channels for PAM4/NRZ |
| Tr/Tf | High-speed rise/fall time of 8.5 ps (20% to 80%) |
| Intrinsic Jitter | Low intrinsic random jitter of approx. 170 fs rms |
| Output Quality | Low noise, low distortion, high-quality data output |
| Emphasis | 4-tap emphasis with 20 dB range |
| ISI Adjustment | Inter-symbol interference adjustment function |
| FEC | Forward Error Correction (FEC) pattern generation |
| Stressed Margin | Bit error rate (BER) < 10^-12 under stressed conditions |
| Clock Recovery | Built-in clock recovery |
| PAM4 Features | PAM4 pattern editor and symbol error measurement |
| Jitter Functions | Jitter addition, jitter tolerance measurement (including Sinusoidal Jitter, Random Jitter, Bounded Uncorrelated Jitter, Spread Spectrum Clock) |
| Noise Addition | Voltage noise addition (common mode, differential, white noise) |
| Advanced BER | Jitter tolerance measurement using device under test (DUT) BER counter function |
| Applications | Physical layer testing and signal integrity analysis for high-speed network interfaces including 200/400/800 GbE and PCI Express Gen6 |
