MP2110A BERTWave

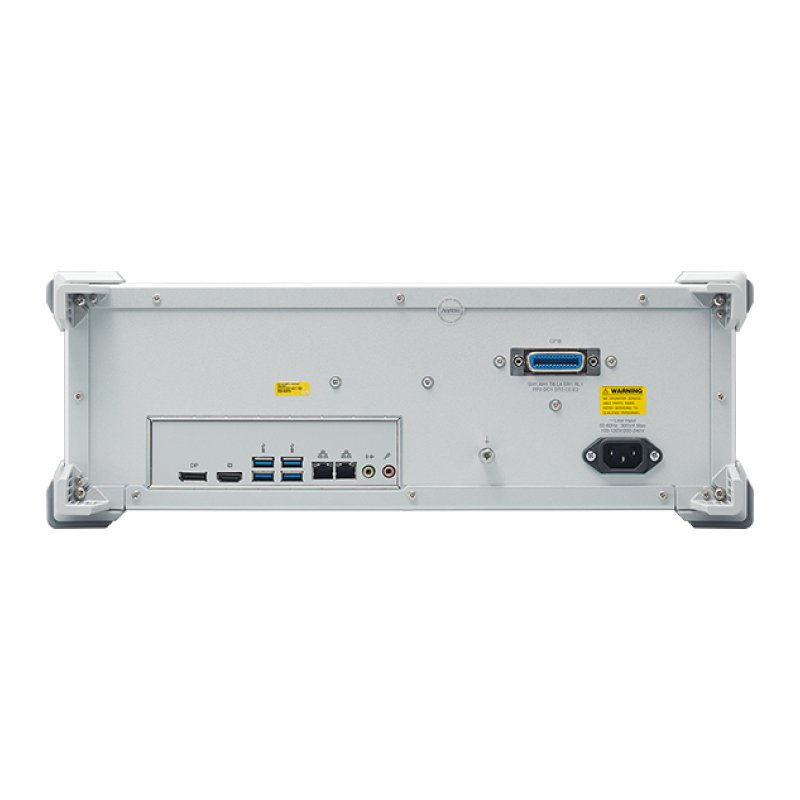

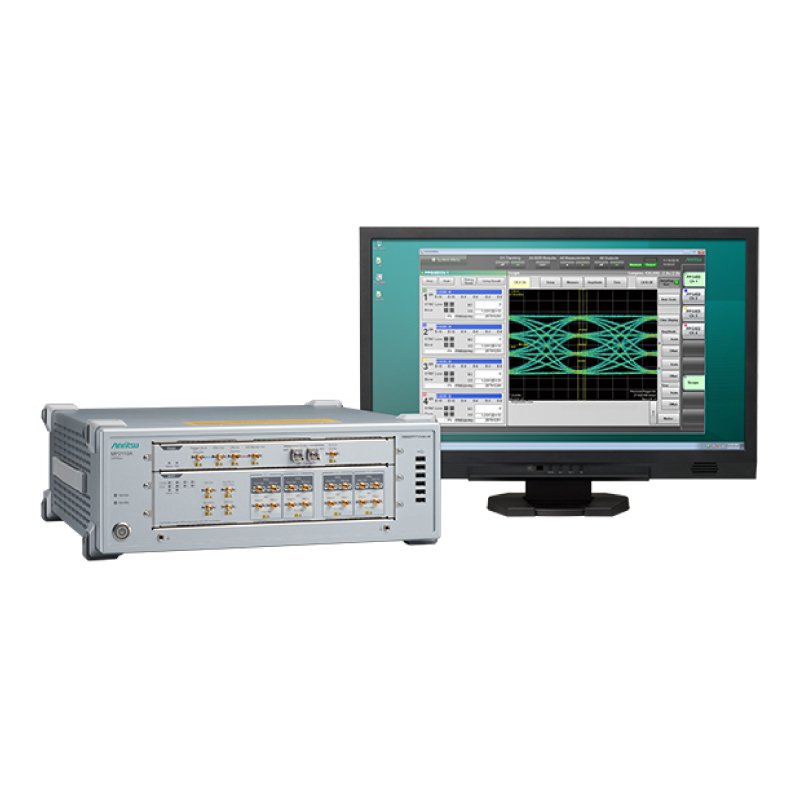

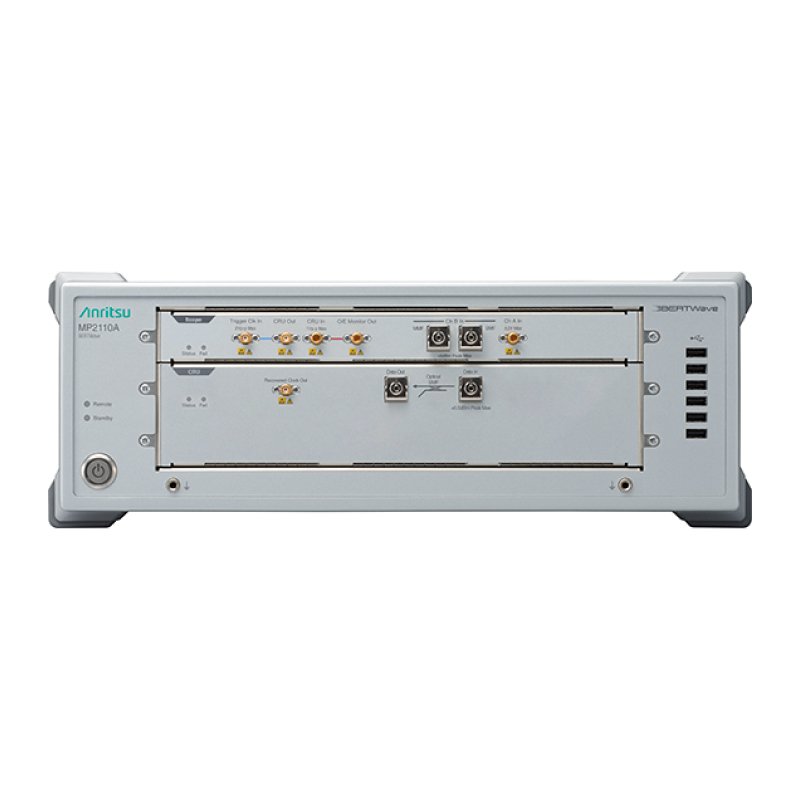

The Anritsu BERTWave MP2110A is an all-in-one measuring instrument with built-in bit error rate tester (BERT) and sampling oscilloscope, supporting evaluations such as bit error rate (BER) measurements, Eye pattern analyses, etc., of optical modules.
Key Features
- Customized built-in 4ch sampling oscilloscope and 4ch BERT
- Fast measurement and high performance shorten test times, improve yields, and cut capital infrastructure costs
- Fast: 250 ksamples/s to measure 1 Msamples in about 5 s
- High Sensitivity: 15 dBm (typ., SMF)
- Wide bandwidth: 35 GHz (optical, SMF), 25 GHz (optical, MMF), 40 GHz (electrical)
- Low Jitter: 200 fs rms (typ.)
- Both NRZ and PAM4 signal analysis, Supports 53-Gbaud analysis with PAM4
- Built-in 26/53 Gbaud Clock Recovery Unit (CRU) for both NRZ and PAM4
- NRZ Jitter component analysis
- Low-Jitter PPG: 600 fs rms (typ.)
- High-sensitivity ED: 25 mV (typ.)
- Built-in PC for stable fast performance
Technical Specifications
| Type | BERTWave |
|---|---|
| Category | bit-error-rate-testers |
| Channels | Built-in 4-channel sampling oscilloscope and 4-channel BERT |
| Measurement Speed | 250 ksamples/s, capable of measuring 1 Msamples in about 5 seconds |
| Sensitivity | 15 dBm (typical, SMF) |
| Bandwidth | 35 GHz (optical, SMF), 25 GHz (optical, MMF), 40 GHz (electrical) |
| Jitter | Low jitter: 200 fs rms (typical) |
| Signal Analysis | Supports both NRZ and PAM4 signal formats, including 53-Gbaud PAM4 analysis |
| Clock Recovery Unit (CRU) | Built-in 26/53 Gbaud CRU for NRZ and PAM4 |
| Jitter Analysis | NRZ jitter component analysis |
| Pulse Pattern Generator (PPG) | Low-jitter PPG with 600 fs rms (typical) |
| Electrical Detector (ED) | High-sensitivity ED: 25 mV (typical) |
| Built-in PC | For stable and fast instrument performance |
| Applications | Bit Error Rate (BER) measurement, Eye pattern analysis, optical module evaluation |
