Vector Network Analyzers (VNA)

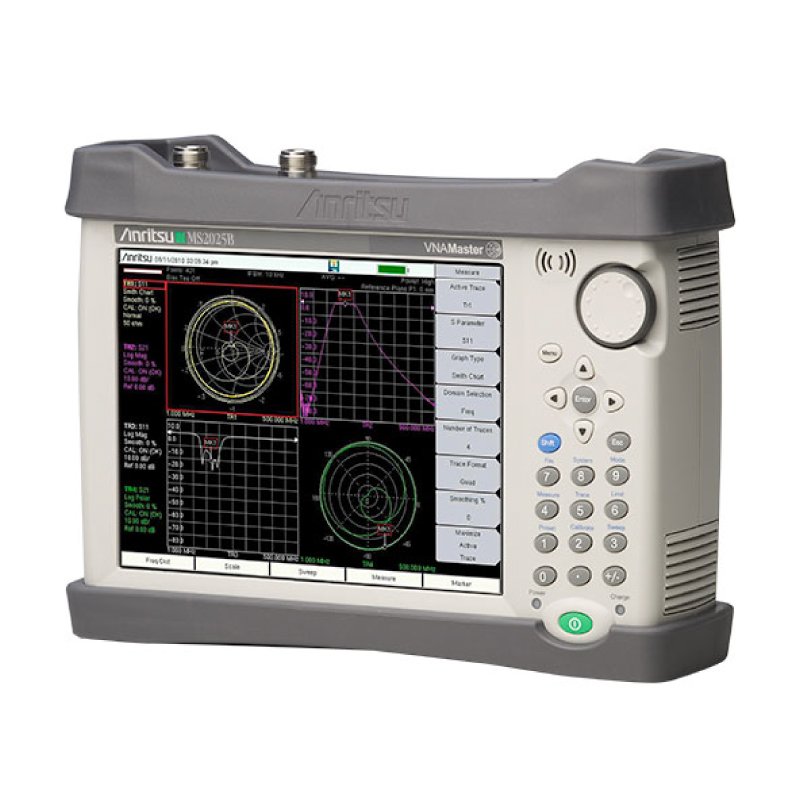

MS2025B VNA Master
Modern RF/Microwave systems increasingly are pushing their performance to the limits of technology. Designers write tighter specifications on components and define more rigid signal parameters. All of which leaves Field Maintenance Personnel scrambling to find more accurate and yet affordable handheld test equipment. Anritsu introduces industry's most affordable, yet comprehensive solution, the MS2025B VNA Master (500 kHz to 6 GHz). It's a Vector Network Analyzer, it's a Power Meter and it's a Vector Voltmeter. It's tempting to think of the VNA Master as the "Swiss Army Knife of S-Parameters". But that would be wrong because while a SAK does many different functions, it doesn't do any one very well. Whereas the VNA Master does many measurements very well. Error-corrected VNA technology brings modern accuracy to the field S-parameters, external power sensors measure transmit power accurately and the Vector Voltmeter option matches cable phase with great precision.
Key Features
- 2-port, 1-path Vector Network Analyzer (VNA)
- Intuitive Graphical User Interface (GUI) with convenient Touch Screen
- Outstanding calibration stability
- User-defined overlays for viewing multiple S-Parameters
- Exceptional RF immunity
- IF Bandwidth selections of 10 Hz to 100 kHz
- 100 dB Transmission Dynamic Range
- 850 µs/data point sweep speed
- Internal Bias Tee option
- Vector Voltmeter option, ideal for cable phase matching
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| Frequency Range | 500 kHz to 6 GHz |
|---|---|
| Ports | 2-port, 1-path Vector Network Analyzer |
| Display | Intuitive Graphical User Interface (GUI) with touch screen |
| Calibration Stability | Outstanding calibration stability |
| S-Parameter Viewing | User-defined overlays for multiple S-parameters |
| RF Immunity | Exceptional RF immunity for accurate field measurements |
| IF Bandwidth | Selectable from 10 Hz to 100 kHz |
| Dynamic Range | 100 dB transmission dynamic range |
| Sweep Speed | 850 microseconds per data point |
| Options | Internal bias tee; Vector Voltmeter option for precise cable phase matching |
| Warranty | Standard three-year warranty (battery one-year warranty) |
| Applications | Field maintenance, RF and microwave component testing, cable phase matching, transmit power measurements |
| Additional Features | Integrated VNA, power meter, and vector voltmeter in one handheld instrument |
