Vector Network Analyzers (VNA)

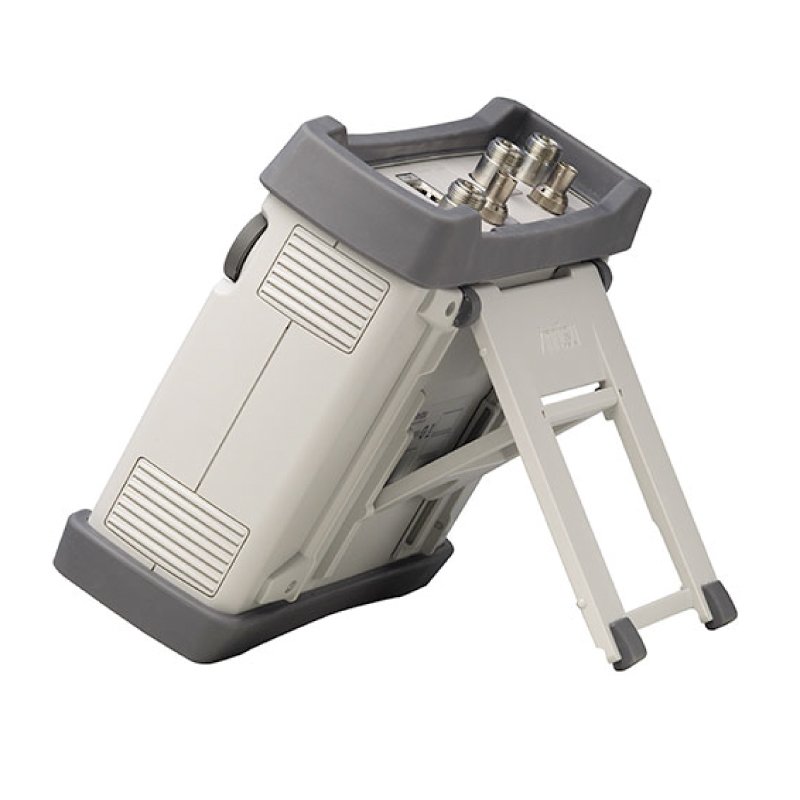

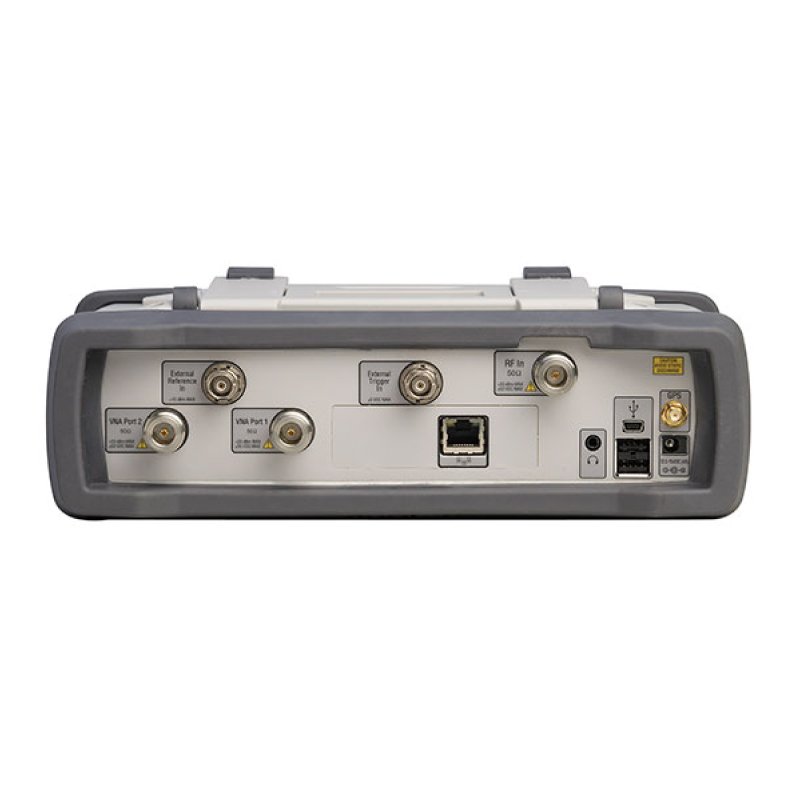

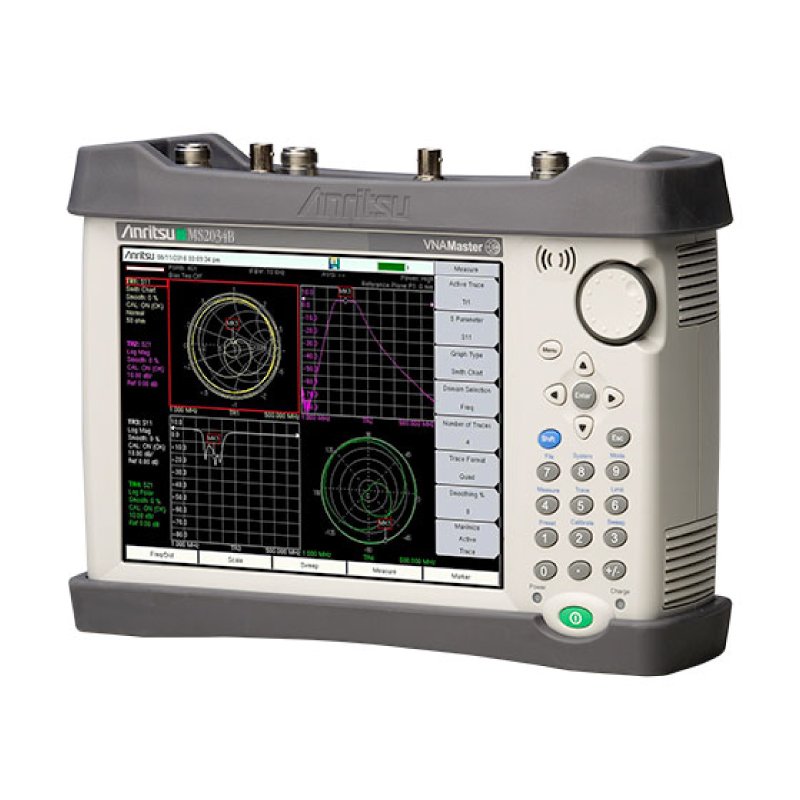

MS2034B VNA Master + Spectrum Analyzer
Modern RF/Microwave systems are increasingly pushing their performance to the limits of technology. Designers write tighter specifications on components and define more rigid signal parameters. All of which leaves field maintenance personnel scrambling to find more accurate and higher performance handheld test equipment. Anritsu delivers the industry's most affordable, comprehensive solution the VNA Master MS2034B handheld vector network analyzer (VNA) with high-performance spectrum analyzer. The 2-port, 1-path VNA provides coverage from 500 kHz to 4/6 GHz, while its spectrum analyzer covers from 9 kHz to 4/6 GHz. The VNA Master MS2034B solution features error-corrected VNA technology that delivers modern accuracy to field S-parameters, external power sensors that measure transmit power accurately, and the Vector Voltmeter option phase matches cables with great precision. The solution enables field technicians to reduce the number of tools needed to precisely and quickly test and verify the installation and commissioning of base stations, as well as maintain and troubleshoot existing wireless network infrastructures, including broadband and microwave backhaul systems.
Key Features
- 2-port, 1-path Vector Network Analyzer (VNA)
- Intuitive Graphical User Interface (GUI) with resistive TFT Touch Screen
- Exceptional RF immunity
- 100 dB Transmission Dynamic Range
- Vector Voltmeter option, ideal for cable phase matching
- Dynamic Range: > 95 dB in 10 Hz RBW
- DANL: 162 dBm (1 Hz)
- Phase Noise: 100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: < ±50 ppb with GPS On
- Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- PIM Hunting
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| VNA Frequency Range | 500 kHz to 4/6 GHz (model dependent) |
|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz to 4/6 GHz (model dependent) |
| Ports | 2-port, 1-path Vector Network Analyzer |
| Display | Intuitive GUI with resistive TFT touch screen |
| RF Immunity | Exceptional RF immunity for accurate field measurements |
| Transmission Dynamic Range | 100 dB |
| Vector Voltmeter | Available option for precise cable phase matching |
| Dynamic Range (Spectrum Analyzer) | > 95 dB at 10 Hz RBW |
| Displayed Average Noise Level (DANL) | -162 dBm (1 Hz) |
| Phase Noise | 100 dBc/Hz maximum at 10 kHz offset, 1 GHz carrier |
| Frequency Accuracy | Better than ±50 ppb with GPS enabled |
| Detectors | Peak, Negative, Sample, Quasi-peak, True RMS |
| Special Features | PIM (Passive Intermodulation) hunting |
| Warranty | Standard three-year warranty (battery one-year warranty) |
| Applications | Field testing, base station installation and commissioning, wireless network maintenance, broadband and microwave backhaul troubleshooting |
