Vector Network Analyzers (VNA)
MS2035B VNA Master + Spectrum Analyzer

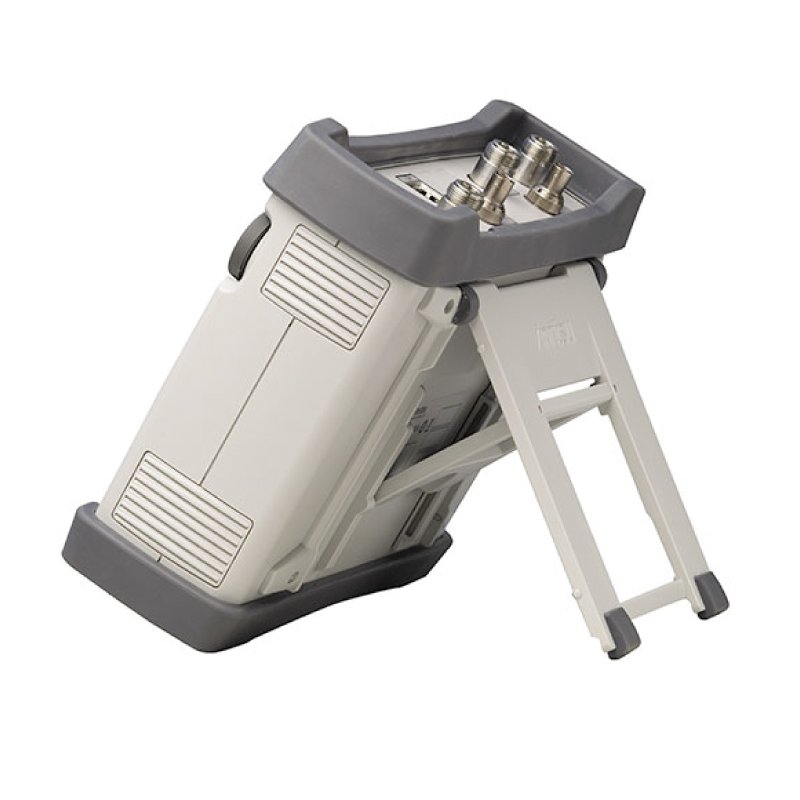

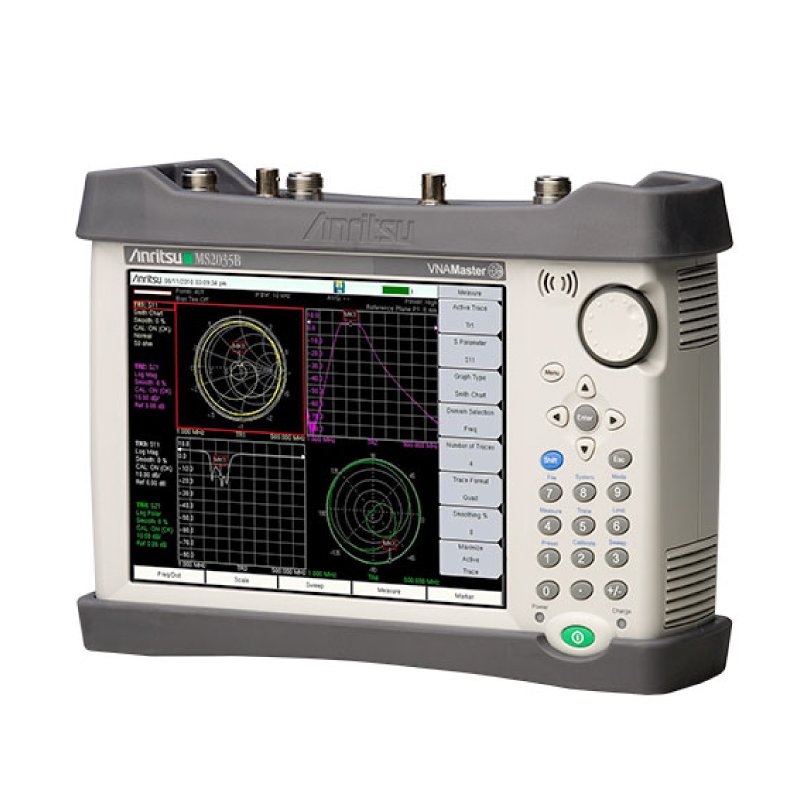

The Anritsu VNA Master MS2035B with added Spectrum Analyzer is compact in size and high in performance field rugged Vector Network Analyzer. Providing true vector error corrected S-parameter data, this analyzer is easy to use with large, high resolution (800 x 600) touch screen display, and depending on the model and options, capable of much more than just VNA measurements. Industry leading DANL and Phase Noise performance. Standard capability includes 1-Path, 2-Port VNA measurements, with a standard, user selectable GUI mode which allows the user to choose between the standard VNA S-parameter format or a more simplified Cable and Antenna analyzer format known as Field Mode. Both modes deliver the same high level of measurement precision and accuracy which the VNA Master products are well known for. Additional options extend functionality even further, making the VNA Master much more versatile in the field and eliminating the need to carry multiple instruments.
Key Features
- 2-port, 1-path Vector Network Analyzer (VNA)
- Intuitive Graphical User Interface (GUI) with convenient Touch Screen
- Exceptional RF immunity
- 100 dB Transmission Dynamic Range
- Vector Voltmeter option, ideal for cable phase matching
- Dynamic Range: > 95 dB in 10 Hz RBW
- DANL: 162 dBm (1 Hz)
- Phase Noise: 100 dBc/Hz max @ 10 kHz offset at 1 GHz
- Frequency Accuracy: < ±50 ppb with GPS On
- Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- PIM Hunting
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| VNA Frequency Range | 500 kHz to 4/6 GHz (model dependent) |
|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz to 4/6 GHz (model dependent) |

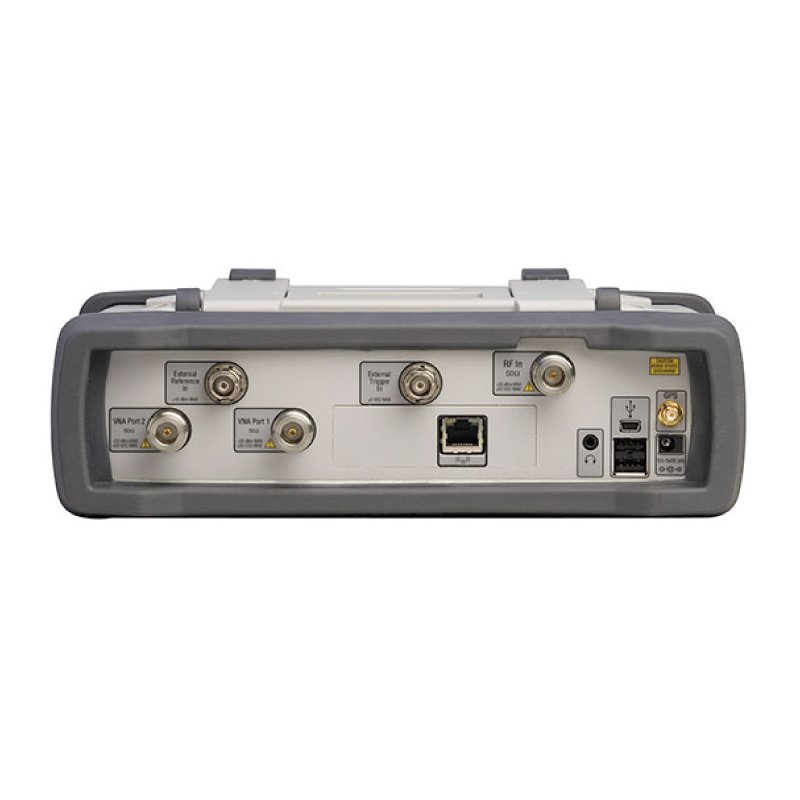

| Ports | 2-port, 1-path Vector Network Analyzer |
| Display | Intuitive GUI with convenient touch screen (800 x 600 resolution) |
| RF Immunity | Exceptional RF immunity for accurate field measurements |
| Transmission Dynamic Range | 100 dB |
| Vector Voltmeter | Optional for precise cable phase matching |
| Dynamic Range (Spectrum Analyzer) | > 95 dB at 10 Hz RBW |
| Displayed Average Noise Level (DANL) | -162 dBm (1 Hz) |
| Phase Noise | 100 dBc/Hz maximum at 10 kHz offset, 1 GHz carrier |
| Frequency Accuracy | Better than ±50 ppb with GPS enabled |
| Detectors | Peak, Negative, Sample, Quasi-peak, True RMS |
| Special Features | PIM (Passive Intermodulation) hunting |
| Warranty | Standard three-year warranty (battery one-year warranty) |
| Applications | Field testing, base station installation and commissioning, wireless network maintenance, broadband and microwave backhaul troubleshooting |
| User Modes | Standard VNA S-parameter format and simplified Cable and Antenna analyzer (Field Mode) |
