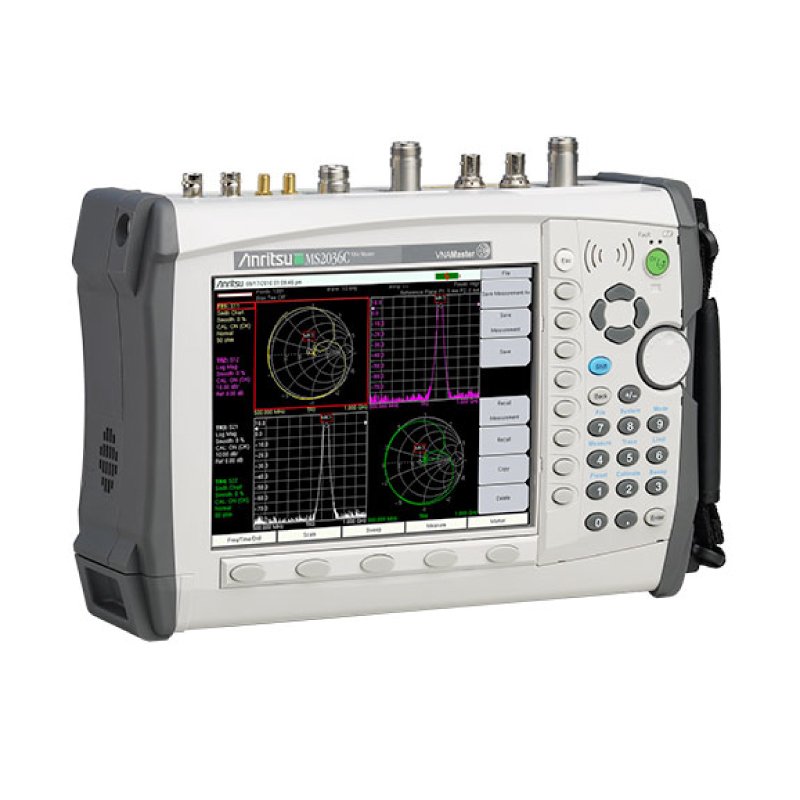

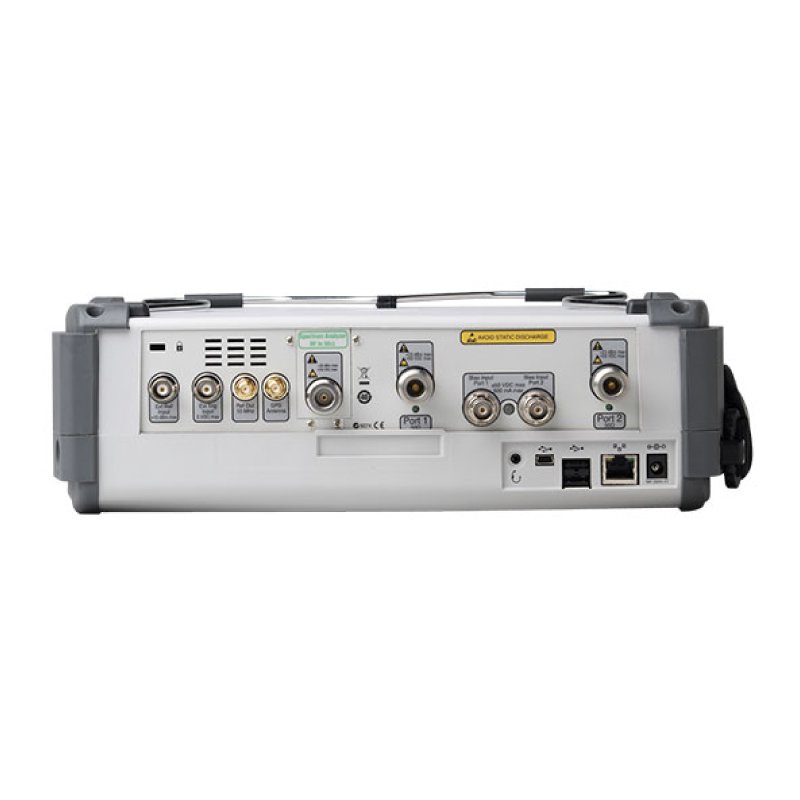

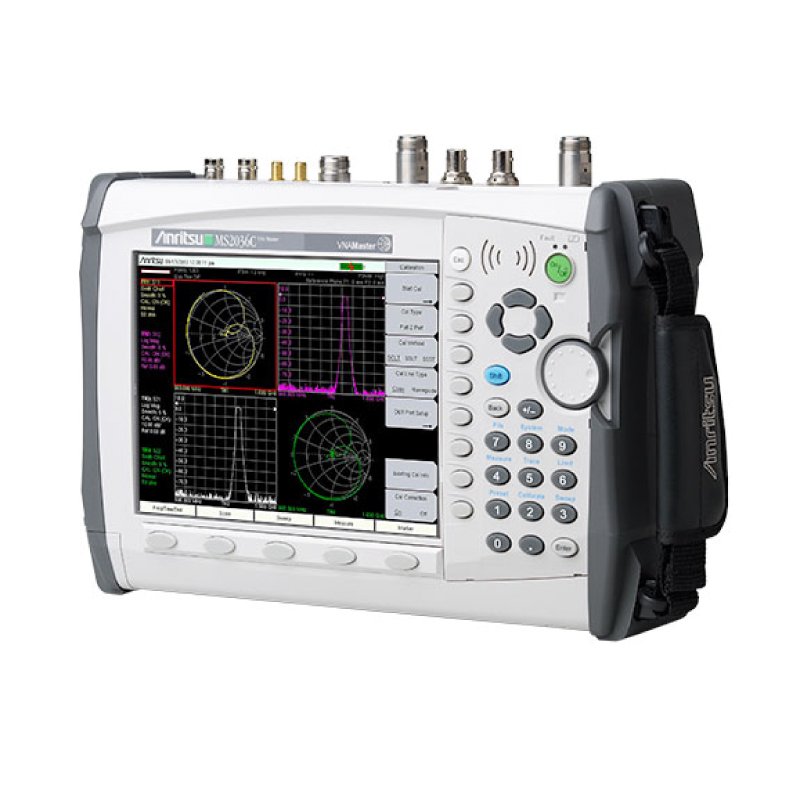

MS2036C VNA Master + Spectrum Analyzer
The Anritsu VNA Master MS2036C is a Handheld Vector Network Analyzer with frequency coverage from 5 kHz to 6 GHz PLUS a Spectrum Analyzer covering 9 kHz to 9 GHz all rolled into a single measurement powerhouse for the harsh RF and physical environments of field test. Whether it is for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, or 3G/4G and wireless data network measurements, this VNA/Spectrum Analyzer combination is the ideal instrument for making fast and reliable measurements in the field.
Key Features
- True 2-Path 2-Port Vector Network Analyzer
- Ultimate accuracy with 12-term error correction algorithm
- User-defined Quad Display for viewing all 4 S-parameters
- Detectors: Peak, Negative, Sample, Quasi-peak, and true RMS
- Markers: 6, each with a Delta Marker, or 1 Reference with 6 Deltas
- Built-in pre-selector for eliminating spurious in displays
- PIM Hunting
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| VNA Frequency Range | 5 kHz to 6 GHz |
|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz to 9 GHz |
| VNA Ports | True 2-path 2-port vector network analyzer |
| Error Correction | 12-term error correction algorithm for ultimate accuracy |
| Display | User-defined Quad Display to view all 4 S-parameters simultaneously |
| Detectors | Peak, Negative, Sample, Quasi-peak, True RMS |
| Markers | 6 markers, each with Delta Marker, or 1 Reference with 6 Deltas |
| Pre-selector | Built-in pre-selector to eliminate spurious responses |
| Special Features | PIM (Passive Intermodulation) hunting capability |
| Warranty | Standard three-year warranty (one-year battery warranty) |
| Applications | Spectrum monitoring, broadcast proofing, interference analysis, RF/Microwave measurements, regulatory compliance, 3G/4G and wireless network measurements |
| Portability | Handheld, rugged design suitable for field testing in harsh environments |
