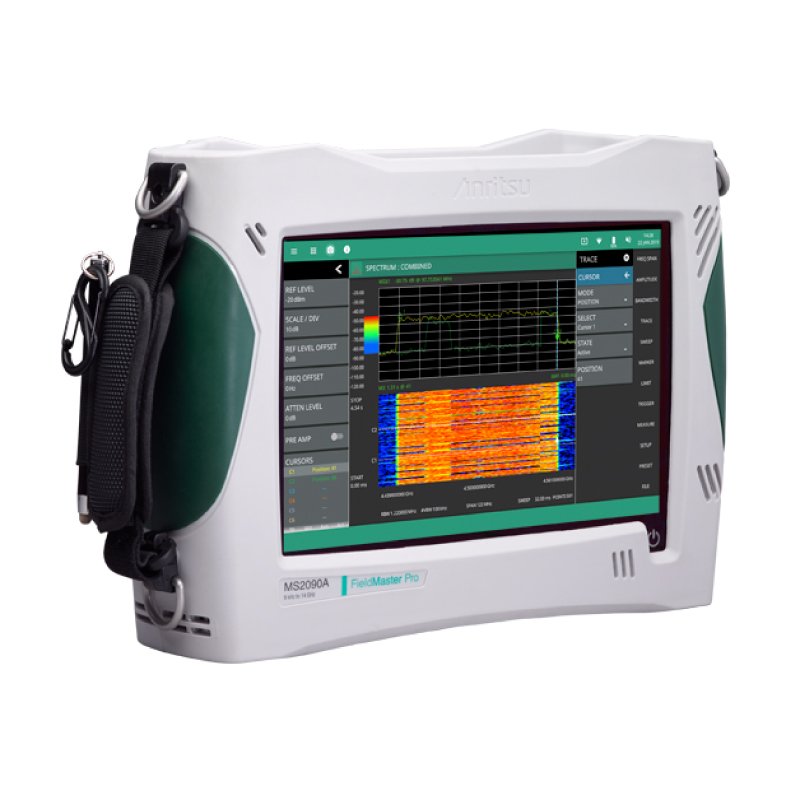

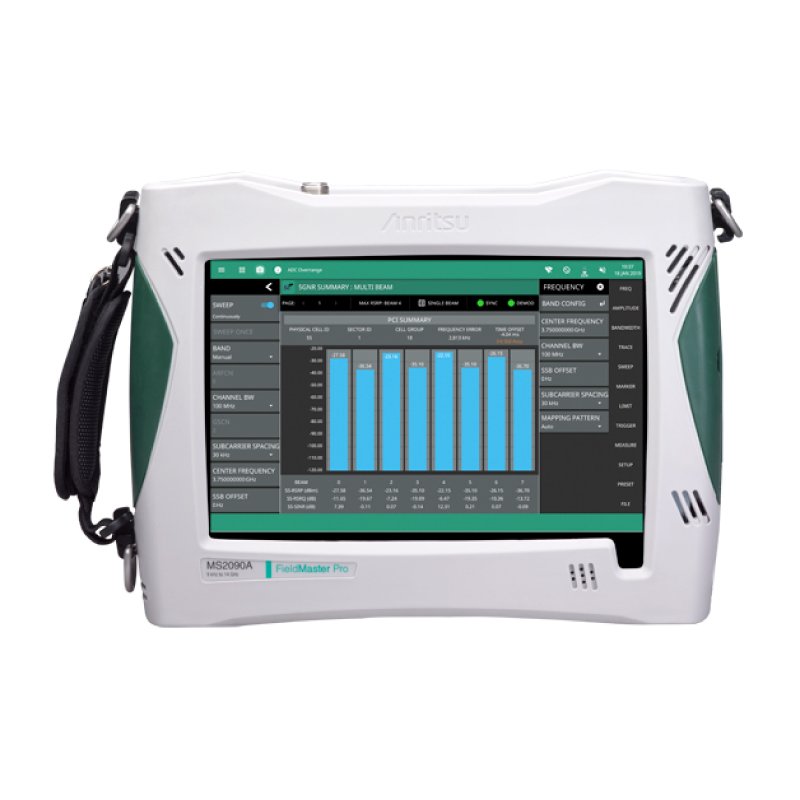

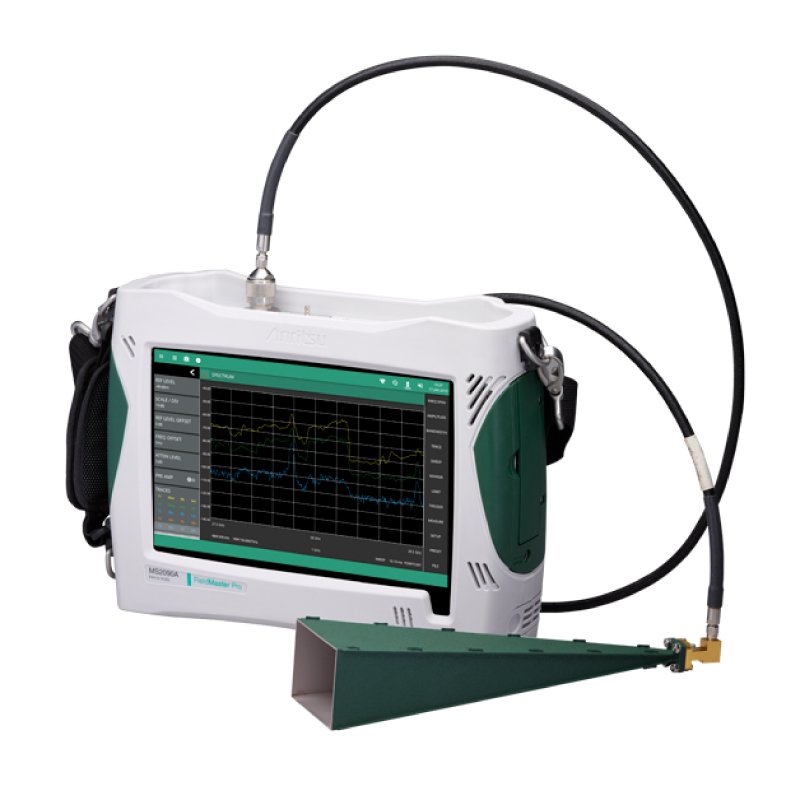

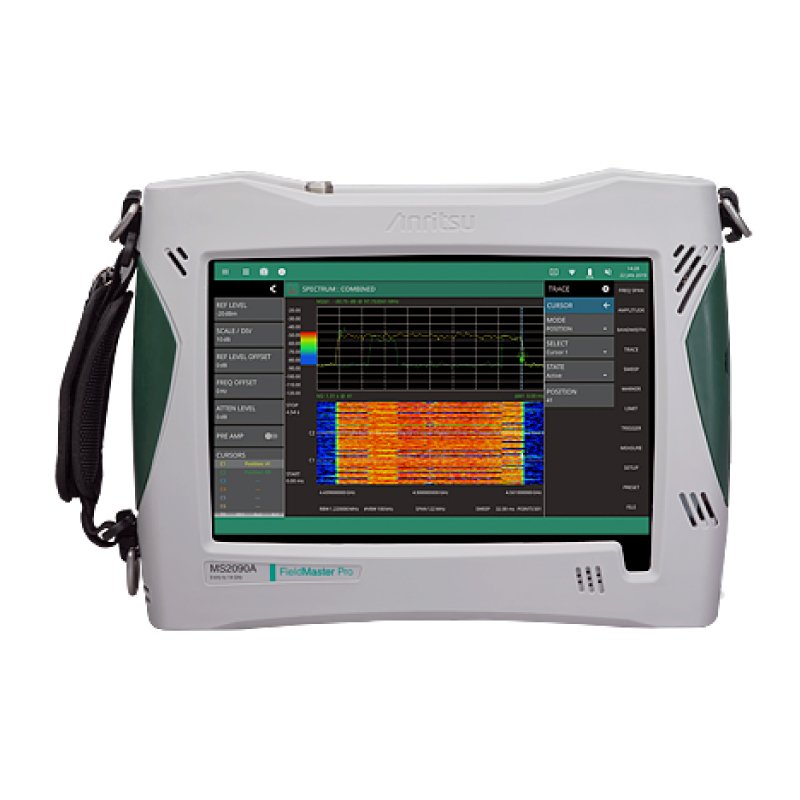

MS2090A Field Master Pro/Spectrum Analyzer
Anritsus Field Master Pro MS2090A real time spectrum analyzer delivers performance never previously available in a compact, handheld instrument. With continuous frequency coverage from 9 kHz to 54 GHz, the Anritsu Field Master Pro MS2090A is specifically designed to meet the test challenges of a full range of other wireless technologies in use today, including: 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar.
Key Features
- Frequency range: 9 kHz to 9/14/20/26.5/32/43.5/54 GHz
- DANL: -164 dBm (with preamp)
- TOI: +20 dBm (typical)
- Analysis bandwidth: 110 MHz
- Amplitude range: DANL to +30 dBm
- Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
- Demodulation: 5GNR, LTE FDD/TDD, RF, and modulation quality plus SSB signal analysis
- Resolution bandwidth (RBW): 1 Hz to 10 MHz
- RTSA bandwidth: 22, 55, 110 MHz (option dependent)
- Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB typical)
- Zero span with 60 ns minimum span
- IQ capture and streaming
- AM/FM modulation quality measurements
- Built-in PDF/HTML report generation
- EMF Measurements
- Uplink/Downlink interference analysis
- Interference hunting
Technical Specifications
| Type | Field Master Pro/Spectrum Analyzer |
|---|---|
| Category | signal-spectrum-analyzer |
| Frequency Range | 9 kHz to 9/14/20/26.5/32/43.5/54 GHz |
| DANL | -164 dBm (with preamp) |
| TOI | +20 dBm (typical) |
| Analysis Bandwidth | 110 MHz |
| Amplitude Range | DANL to +30 dBm |
| Phase Noise | -110 dBc/Hz at 1 GHz, 100 kHz offset (typical) |
| Demodulation Support | 5GNR, LTE FDD/TDD, RF, modulation quality, and SSB signal analysis |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| RTSA Bandwidth | 22, 55, 110 MHz (option dependent) |
| Amplitude Accuracy | < 14 GHz ±1.3 dB (±0.5 dB typical) |
| Zero Span | Minimum span of 60 ns |
| IQ Capture and Streaming | Supported |
| Modulation Quality | AM/FM modulation quality measurements |
| Report Generation | Built-in PDF/HTML report generation |
| Additional Features | EMF measurements, uplink/downlink interference analysis, interference hunting |
| Applications | Testing of wireless technologies including 5G, LTE, wireless backhaul, aerospace/defense, satellite systems, and radar |
