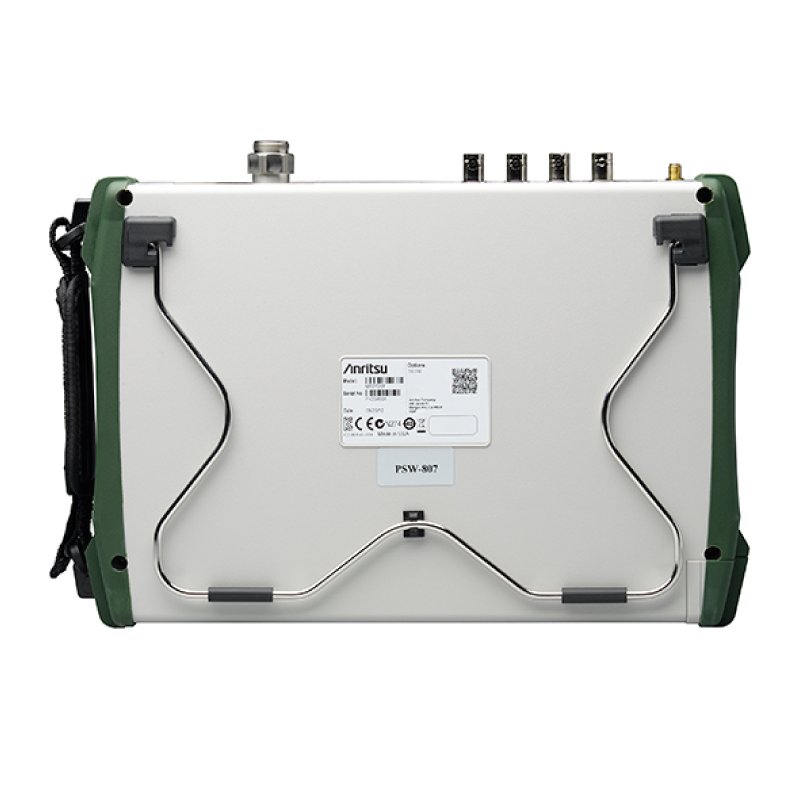

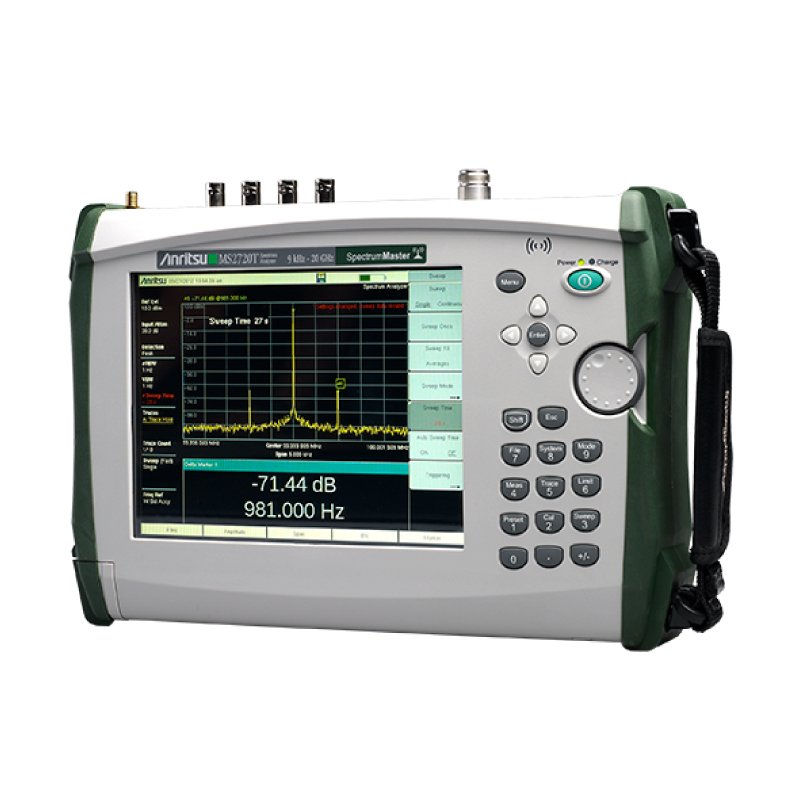

MS2720T Spectrum Master/Spectrum Analyzer
Anritsu's latest generation of handheld spectrum analyzers is the Anritsu MS2720T Spectrum Master. This represents the company's highest performance handheld spectrum analyzer. Exciting new features and options bring more value and speed to the user.
Key Features
- Frequency Ranges: 9 kHz to 9 GHz, 13 GHz, and 20 GHz
- Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Mask, Spurious Emissions, Field Strength
- 3G and 4G Measurement options for LTE (FDD & TDD), CDMA, W-CDMA, WiMAX, GSM, and TD-SCDMA
- Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
- Dynamic Range: > 106 dB in 1 Hz RBW @ 2.4 GHz
- DANL: 164 dBm in 1 Hz RBW @ 1 GHz preamp On
- Phase Noise: 112 dBc/Hz @ 10 kHz offset at 1 GHz
- 1 Hz to 10 MHz Resolution Bandwidth (RBW)
- Tracking Generator up to 20 GHz
- PIM Hunting
- PIM Alert (a downloadable easyTest script)
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| Type | Spectrum Master/Spectrum Analyzer |
|---|---|
| Category | signal-spectrum-analyzer |
| Frequency Ranges | 9 kHz to 9 GHz, 13 GHz, and 20 GHz |
| Measurements | Occupied Bandwidth, Channel Power, Adjacent Channel Power Ratio (ACPR), Carrier-to-Interference ratio (C/I), Emission Mask, Spurious Emissions, Field Strength |
| 3G and 4G Measurement Options | LTE (FDD & TDD), CDMA, W-CDMA, WiMAX, GSM, TD-SCDMA |
| Interference Analyzer | Spectrogram, Signal Strength, RSSI, Mapping |
| Dynamic Range | >106 dB in 1 Hz RBW at 2.4 GHz |
| DANL (Displayed Average Noise Level) | -164 dBm in 1 Hz RBW at 1 GHz with preamp On |
| Phase Noise | -112 dBc/Hz at 10 kHz offset at 1 GHz |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Tracking Generator | Up to 20 GHz |
| PIM (Passive Intermodulation) Features | PIM Hunting, PIM Alert (a downloadable easyTest script) |
| Warranty | Standard three-year warranty, battery one-year warranty |
