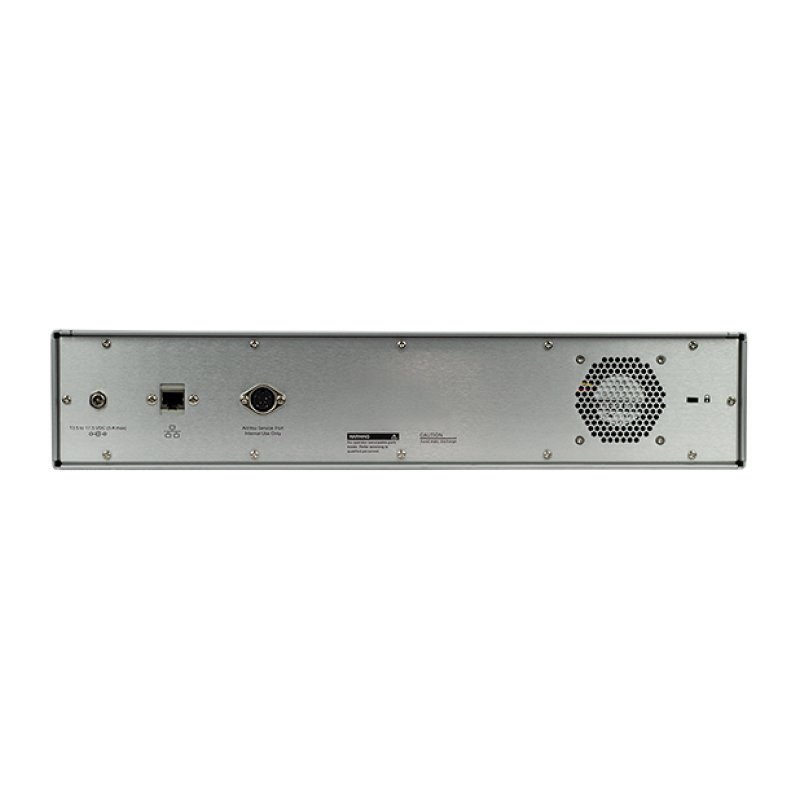

MS2720xA Remote Spectrum Monitor
The Anritsu MS27201A Spectrum Monitors are compact rack mount spectrum analyzers designed for applications that require long term monitoring of the RF spectrum over a large geographic area. The Anritsu MS27201A spectrum monitor from Anritsu is designed to facilitate wide area spectrum monitoring up to 54 GHz. Building on over 40 years experience in developing high performance field portable spectrum analyzers, the MS27201A series is our highest frequency spectrum monitor covering all standard LMR, cellular, satellite and defense electronic bands.
Key Features
- Frequency range options: 9/14/20/26.5/32/43.5/54 GHz
- 19 inch rack mount case
- PC application user interface
- DANL: -164 dBm (with preamp)
- TOI: +20 dBm (typical)
- Analysis bandwidth: 110 MHz
- Amplitude range: DANL to +30 dBm
- Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
- Demodulation: 5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
- Resolution bandwidth (RBW): 1 Hz to 10 MHz
- Amplitude accuracy: < 14 GHz ± 1.3 dB (± 0.5 dB, typical)
- Zero span with 60 ns minimum span
- IQ capture and streaming
- AM/FM modulation quality measurements
- Real-Time Spectrum Analysis (RTSA) 110 MHz bandwidth
Technical Specifications
| Type | Spectrum Master Series |
|---|---|
| Category | signal-spectrum-analyzer |
| Frequency Range Options | 9, 14, 20, 26.5, 32, 43.5, 54 GHz |
| Form Factor | 19-inch rack mount case |
| Displayed Average Noise Level (DANL) | -164 dBm (with preamp) |
| Third Order Intercept (TOI) | +20 dBm (typical) |
| Analysis Bandwidth | 110 MHz |
| Amplitude Range | DANL to +30 dBm |
| Phase Noise | -110 dBc/Hz at 1 GHz, 100 kHz offset (typical) |
| Demodulation Support | 5GNR, LTE FDD, RF, modulation quality, SSB signal analysis |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Amplitude Accuracy | Less than 14 GHz ±1.3 dB (±0.5 dB typical) |
| Zero Span | Minimum span of 60 ns |
| IQ Capture and Streaming | Supported |
| Modulation Quality | AM/FM modulation quality measurements |
| Real-Time Spectrum Analysis (RTSA) | 110 MHz bandwidth |
| Applications | Long-term RF spectrum monitoring over wide geographic areas, covering LMR, cellular, satellite, and defense bands |
