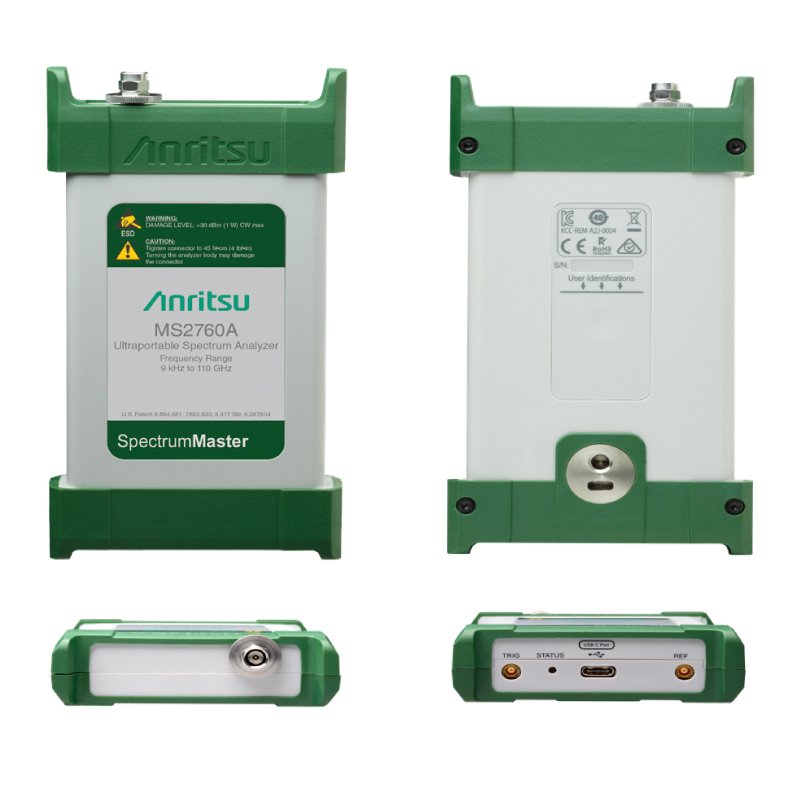

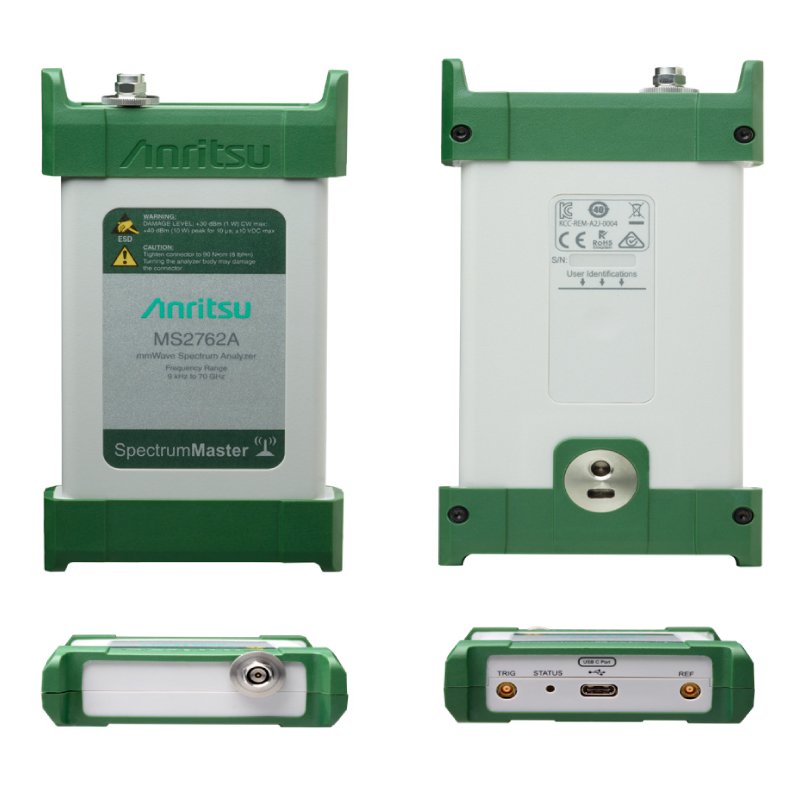

MS276xA Ultraportable Spectrum Analyzer
Anritsu Spectrum Master MS276xA family of ultraportable spectrum analyzers, USB-powered and controlled from a Windows-based device, making them uniquely flexible for use anywhere
Key Features
- First portable spectrum analyzer to provide continuous frequency coverage to 170 GHz
- Broadband mmWave capabilities for radio astronomy, automotive radar, wireless backhaul, 802.11ad, satcom, and more
- Ultraportable form factor enables measurements right at the device under test
- Measure: channel power, adjacent channel power, occupied bandwidth
- Patented NLTL technology provides > 100 dB dynamic range
- -141/-136/-129/-122 dBm DANL to 90/110/145/170 GHz (Spectrum Master MS2762A)
- Up to 6 traces, 3 trace detectors, and 12 markers
- Standard three-year warranty
Technical Specifications
| Type | Ultraportable Spectrum Analyzer |
|---|---|
| Category | signal-spectrum-analyzer |
| Frequency Coverage | Continuous frequency coverage up to 170 GHz |
| Technology | Patented NLTL technology providing >100 dB dynamic range |
| Dynamic Range | Noise floor (DANL) of -141/-136/-129/-122 dBm at 90/110/145/170 GHz (Spectrum Master MS2762A) |
| Applications | Broadband mmWave measurements for radio astronomy, automotive radar, wireless backhaul, 802.11ad, satellite communications, and more |
| Form Factor | Ultraportable, USB-powered and controlled via Windows-based device enabling measurements directly at the device under test |
| Measurement Functions | Channel power, adjacent channel power, occupied bandwidth |
| Trace and Markers | Up to 6 traces, 3 trace detectors, and 12 markers |
| Warranty | Standard three-year warranty |
