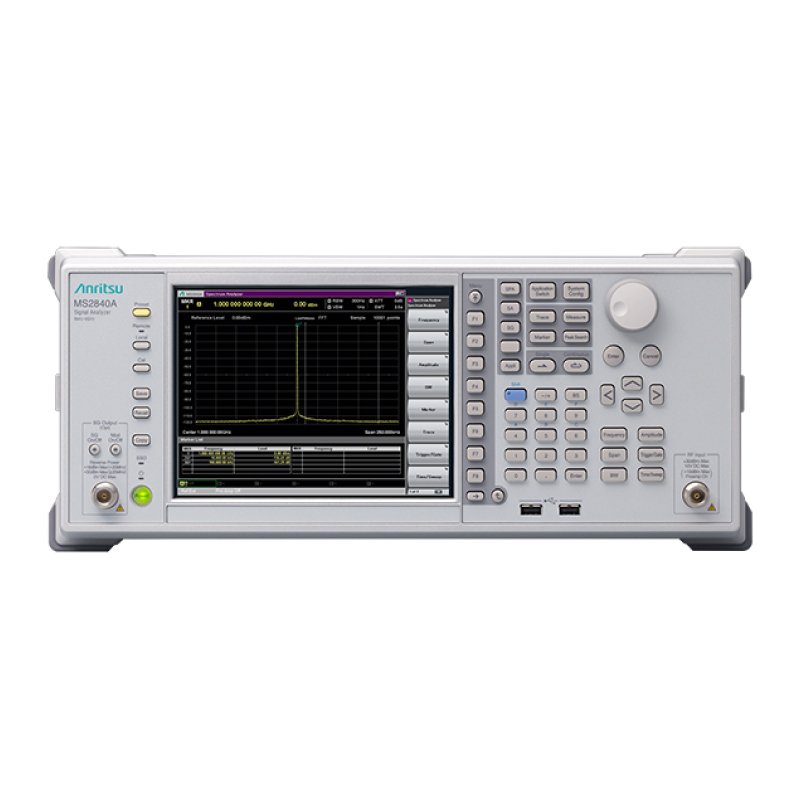

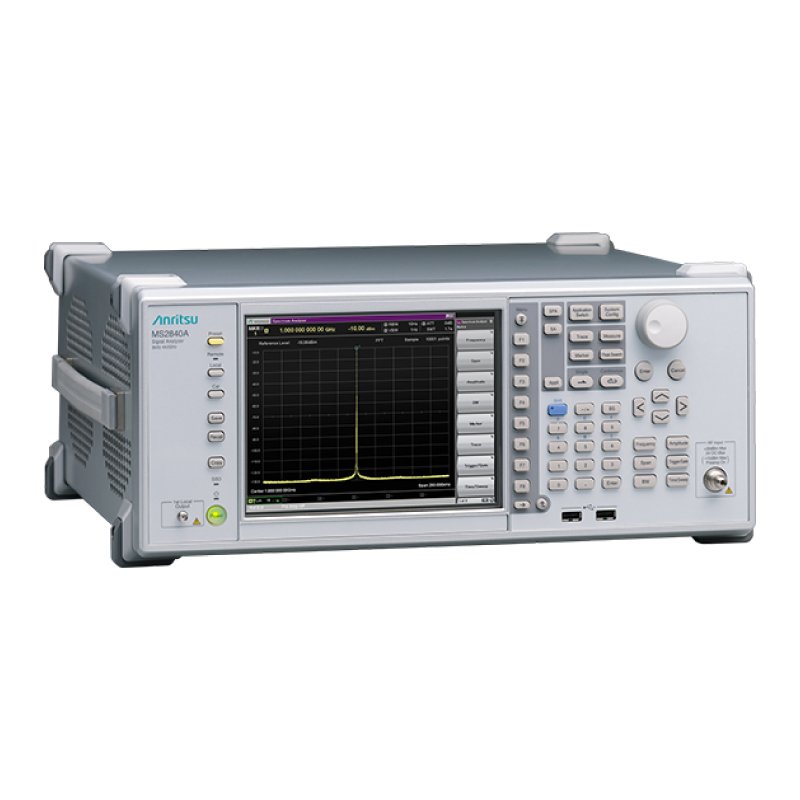

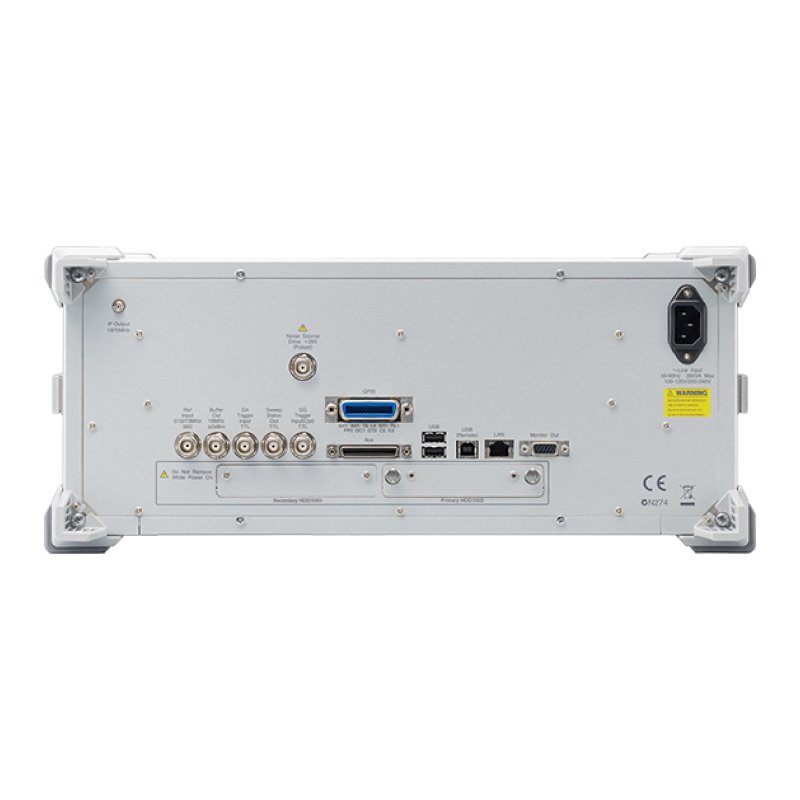

MS2840A Spectrum Analyzer/Signal Analyzer
The Anritsu Spectrum Analyzer/Signal Analyzer MS2840A has an upper measurement frequency limit of 44.5 GHz and its carrier close-in SSB phase noise performance is overwhelmingly best-of-class for middle range models. The Anritsu MS2840A supports measurements across a wide frequency band ranging from applications such as microwave wireless backhaul, requiring high phase-noise performance to measure transmitter carrier close-in spurious, to VHF/UHF private mobile radio (PMR).
Key Features
- Frequency range of 9 kHz to 3.6 GHz / 6 GHz / 26.5 GHz / 44.5 GHz; 44.5 GHz max. built-in preamp option
- Best close-in phase noise performance in middle range signal analyzer/spectrum analyzer: -123 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with all frequency models), -138 dBc/Hz (at 1 GHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models), -140 dBc/Hz (at 150 MHz center frequency, 10 kHz offset frequency with 3.6 GHz and 6 GHz models)
- 31.25 MHz analysis bandwidth (standard); 125 MHz max. (option)
- All-in-one solution with built-in signal generator option supports TRx tests (with 3.6 GHz and 6 GHz models)
- Measurement applications (options): Phase Noise Measurement, Noise Figure Measurement, Vector and Analog Modulation Analysis, BER Measurement, Pulse Radar Measurement Function
Technical Specifications
| Type | Spectrum Analyzer/Signal Analyzer |
|---|---|
| Category | signal-spectrum-analyzer |
| Frequency Range | 9 kHz to 3.6 GHz / 6 GHz / 26.5 GHz / 44.5 GHz; with built-in preamp option up to 44.5 GHz |
| Measurement Applications (Options) | Phase Noise Measurement, Noise Figure Measurement, Vector and Analog Modulation Analysis, BER Measurement, Pulse Radar Measurement Function |
| Applications | Wide frequency range measurement supporting microwave wireless backhaul to VHF/UHF private mobile radio (PMR) |
