Signal & Spectrum Analyzers

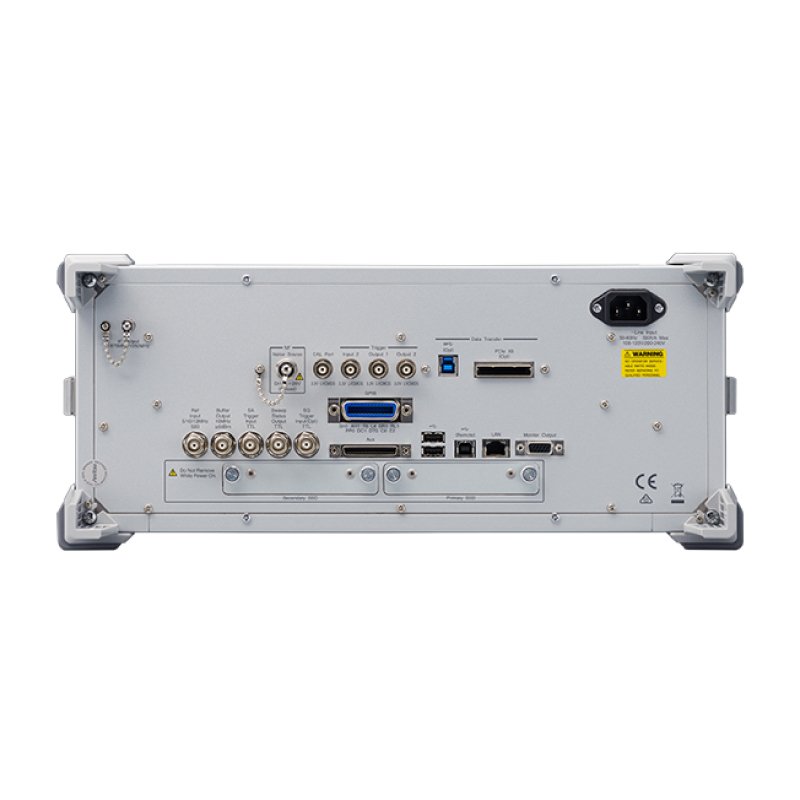

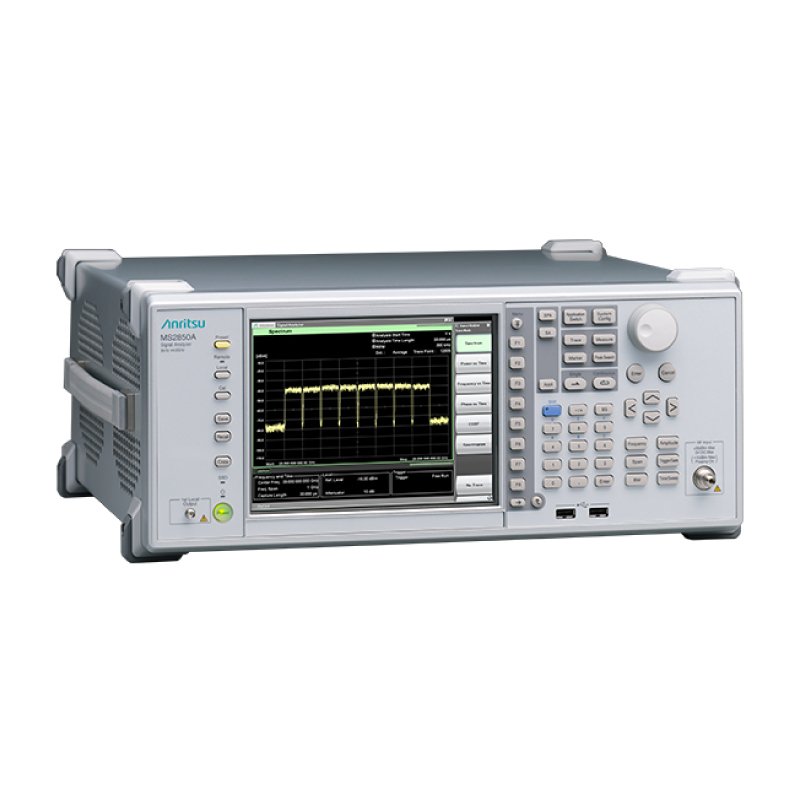

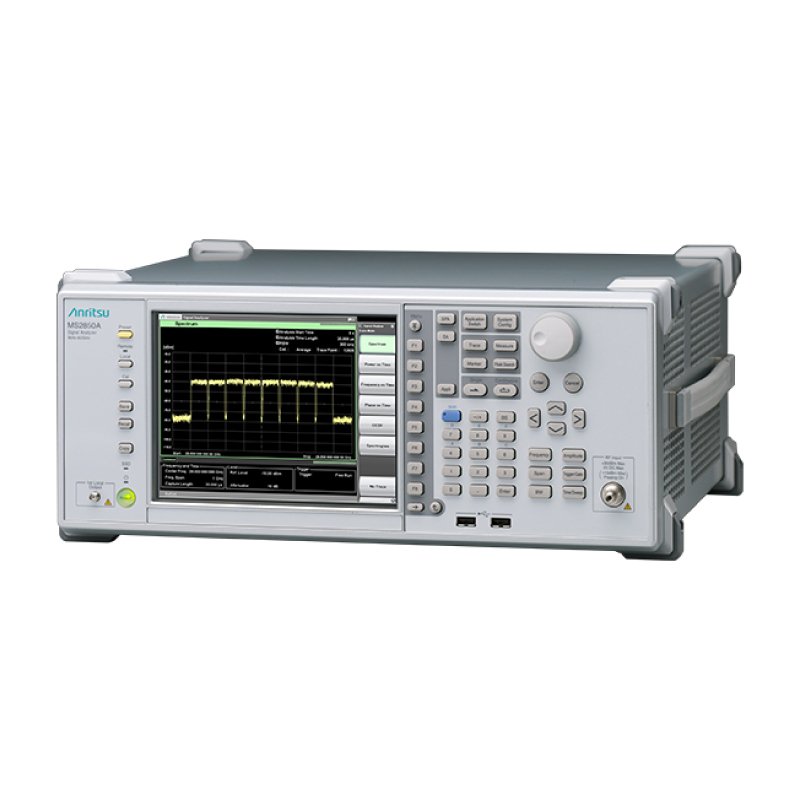

MS2850A Spectrum Analyzer/Signal Analyzer
This signal analyzer with 1 GHz analysis bandwidth supports next-generation broadband and multicarrier communication system, such as 5G mobile and broadcast satellites.
Key Features
- Built-in 5G measurement software supports efficient development and production
- All-in-one 5G NR/V5G coverage for sub-6 GHz and mmWave
- High EVM performance due to wide dynamic range (EVM: <1%)
- One-button dynamic-range optimization at EVM measurement
- Multicarrier batch (all-at-once) analysis
- Amplitude/phase/timing difference measurement for each carrier
- Maximum analysis bandwidth: 1 GHz
- Excellent amplitude and phase flatness performance
- Wide dynamic range measurement: >140 dB
- Long-term capture using large memory
- Equipped with PCIe/USB3.0 connectors for faster data transfer than 1000BASE-T
Technical Specifications
| Type | Spectrum Analyzer/Signal Analyzer |
|---|---|
| Category | mobile-wireless-communications |
| Measurement Software | Built-in 5G measurement software supporting efficient development and production |
| Coverage | All-in-one 5G NR/V5G coverage for sub-6 GHz and mmWave |
| Performance | High EVM performance with wide dynamic range (EVM: <1%) |
| Optimization | One-button dynamic-range optimization during EVM measurement |
| Analysis | Multicarrier batch (all-at-once) analysis with amplitude, phase, and timing difference measurement for each carrier |
| Analysis Bandwidth | Maximum 1 GHz analysis bandwidth |
| Amplitude and Phase | Excellent amplitude and phase flatness performance |
| Dynamic Range | Wide dynamic range measurement greater than 140 dB |
| Memory | Long-term capture supported by large memory |
| Connectivity | Equipped with PCIe/USB3.0 connectors for faster data transfer to external PC than 1000BASE-T |
