MS46121B 1-Port USB Vector Network Analyzer

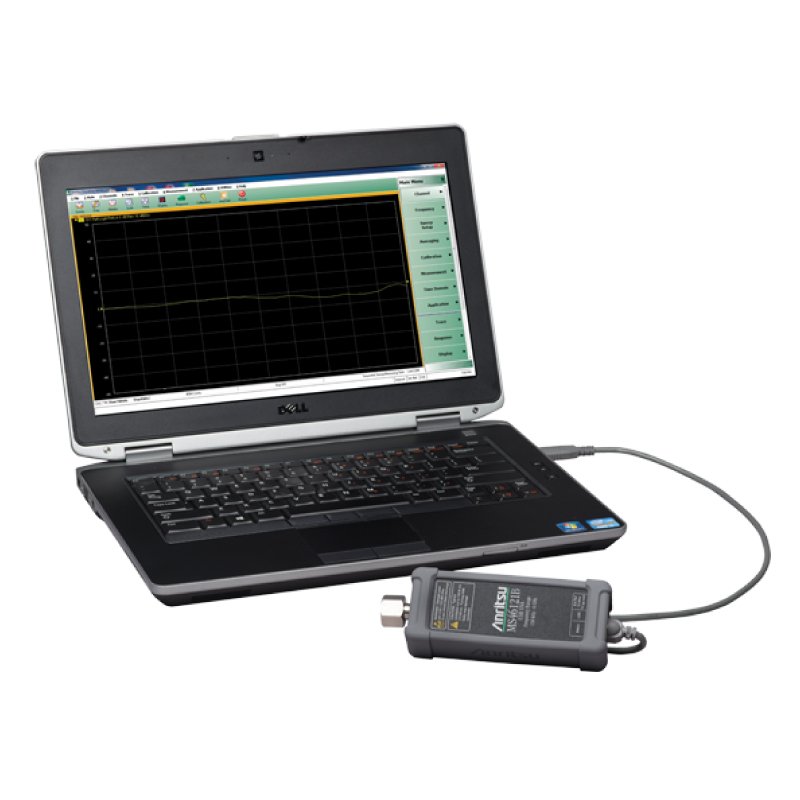

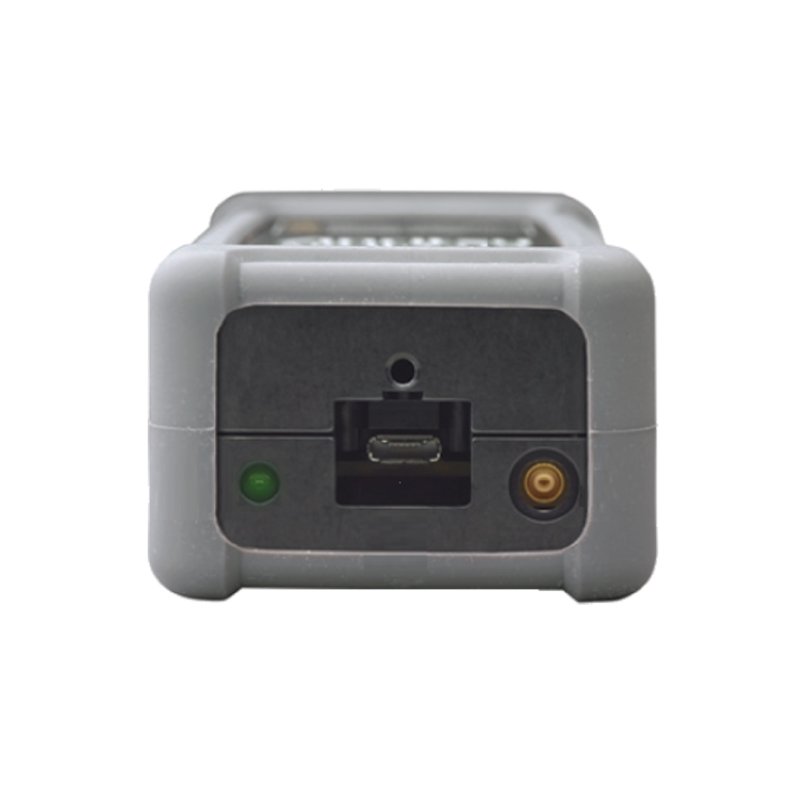

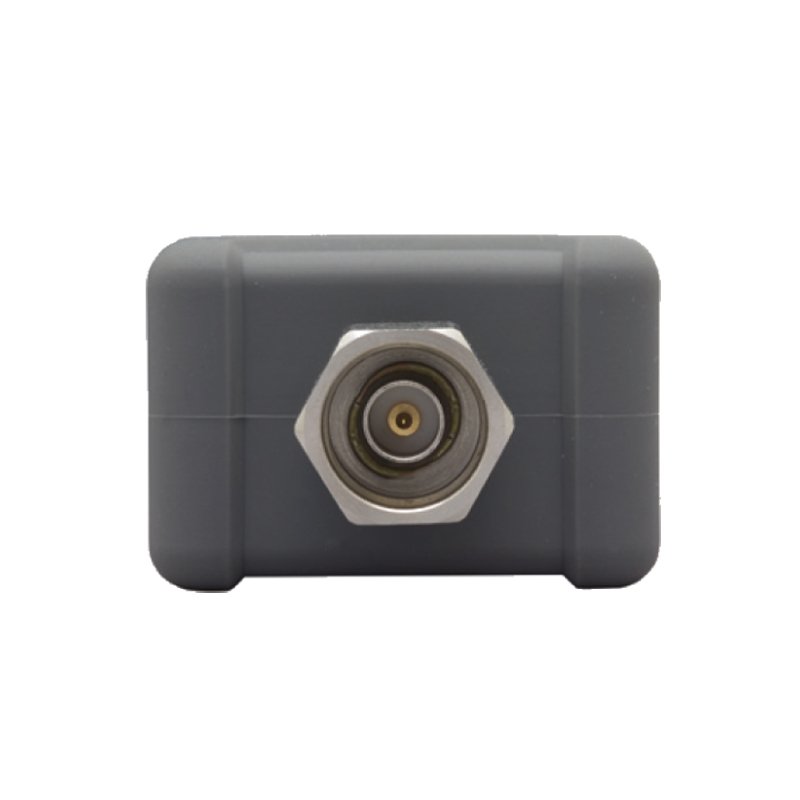

The Anritsu ShockLine MS46121B is a PC-controlled, 1-port USB vector network analyzer (VNA) with a frequency range of 150 kHz to 6 GHz. This series provides performance and accuracy in a low-cost, space-saving solution that is small enough to directly connect to your device under test (DUT). These solutions are ideal for RF and microwave applications within manufacturing, engineering, and education organizations. The two versions provide 120 microsecond per point sweep speeds and a scalar transmission measurement accuracy of +/- 1.0 dB (0 dB to -50 dB insertion loss levels, typical), making them ideal for your passive device test applications.
Key Features
- 1-port VNA with frequency options from 150 kHz to 6 GHz
- External PC control enables control of multiple ShockLine MS46121B devices in parallel for excellent multisite throughput
- Very compact package allows for direct connection to the DUT
- Scalar transmission measurements in a (1-to-1) or (1-to-n) configuration
- No on-board data storage eliminates the need for data purging in secure applications
- Standard bandpass time domain with time gating enables easier and faster fault identification
- A common GUI interface within the ShockLine family reduces switching costs between models
Technical Specifications
| Frequency Range | 150 kHz to 6 GHz |
|---|---|
| Number of Ports | 1-port |
| Sweep Speed | 120 microseconds per point |
| Scalar Transmission Accuracy | +/- 1.0 dB (0 dB to -50 dB insertion loss, typical) |
| Control | External PC control via USB, supports multiple devices in parallel for multisite testing |
| Package Size | Very compact, small enough for direct connection to Device Under Test (DUT) |
| Measurement Types | Scalar transmission measurements in (1-to-1) or (1-to-n) configurations |
| Data Storage | No on-board data storage for improved security and no data purging required |
| Time Domain | Standard bandpass time domain with time gating for fast fault identification |
| User Interface | Common GUI interface across ShockLine family for easy switching between models |
| Applications | Passive device testing, manufacturing, engineering, and education environments |
