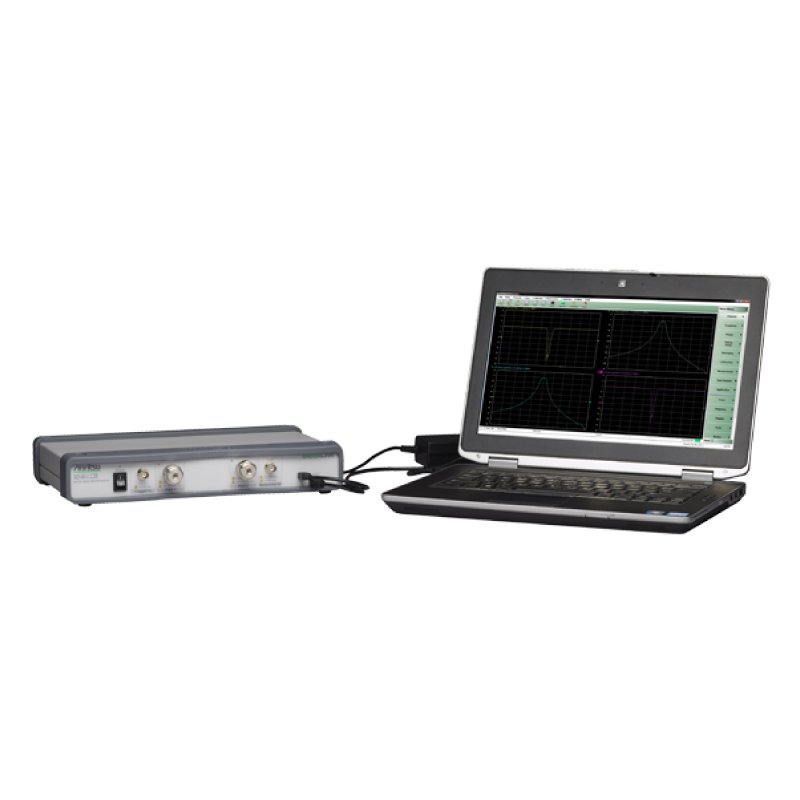

MS46122B Compact USB Vector Network Analyzer
The Anritsu ShockLine MS46122B series consists of three PC-controlled, compact vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series benefits from patented shockline VNA-on-chip technology that simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability. All the members of the ShockLine MS46122B series are low-cost, full-reversing, 2-port VNAs aimed at RF and microwave applications within manufacturing, engineering, and education organizations. All three VNAs have 130 microseconds per point sweep speed and better than 100 dB dynamic range, making them suitable for a variety of device test applications including measuring passive 5G mmWave components.
Key Features
- Guaranteed performance to 43.5 GHz with Extended K ports
- PC control takes advantage of external computer processing power and functionality
- Compact 1U high package for efficient use of bench and rack space
- No on-board data storage eliminates the need for data purging in secure applications
- Time domain with time gating option enables easier and faster fault identification
- A common GUI interface within the ShockLine family reduces switching costs between models
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
Technical Specifications
| Frequency Range | 1 MHz to 8 GHz / 20 GHz / 43.5 GHz (model dependent) |
|---|---|
| Number of Ports | 2-port, full-reversing |
| Port Type | Extended-K ports (guaranteed performance up to 43.5 GHz) |
| Sweep Speed | 130 microseconds per point |
| Dynamic Range | Better than 100 dB |
| Control | PC-controlled via USB, utilizing external computer processing power |
| Form Factor | Compact 1U height for efficient bench or rack use |
| Data Storage | No on-board data storage, improving security and eliminating data purging |
| Time Domain | Optional time domain analysis with time gating for fast fault identification |
| Software | Common GUI interface across ShockLine family; optional Universal Fixture Extraction (UFX) software for advanced de-embedding |
| Applications | RF and microwave testing, including 5G mmWave passive component measurements |
| Benefits | Low cost, high accuracy, compact and portable design |
