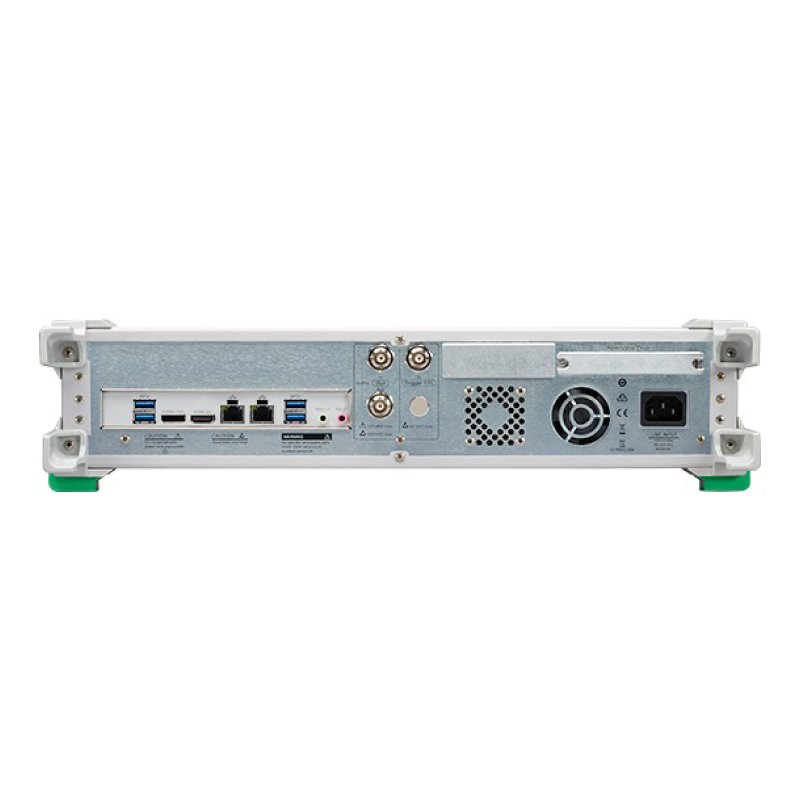

MS46322B Economy Vector Network Analyzer
The Anritsu ShockLine MS46322B series are economy vector network analyzers (VNAs) with frequency ranges from 1 MHz to 8/20/43.5 GHz. The series is based on Anritsus patented shockline VNA-on-chip technology, which simplifies the internal VNA architecture at high frequencies, reduces instrument cost, and enhances accuracy and measurement repeatability.
Key Features
- Guaranteed performance to 43.5 GHz with Extended K ports
- Ideal for testing RF and microwave devices, mmWave antennas, and other passive 5G components
- Fast sweep speed and wide dynamic range minimize test times and maximize throughput
- Excellent corrected directivity allows for less measurement uncertainty
- Time domain with time gating option grants easier and faster fault identification
- Industry-standard LAN interface for remote control is more robust than USB and faster than GPIB
- Standard removable hard drive provides additional security for military and government research users
- A common GUI and SCPI interface within the ShockLine family
- USB ports allow for easy connection to user-provided monitor, keyboard, and mouse
- Small 2U package makes for efficient use of rack space
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction
Technical Specifications
| Frequency Range | 1 MHz to 8 GHz / 20 GHz / 43.5 GHz (model dependent) |
|---|---|
| Ports | 2-port full-reversing |
| Port Type | Extended-K ports (guaranteed performance to 43.5 GHz) |
| Applications | RF/microwave device testing, mmWave antennas, passive 5G components |
| Sweep Speed | Fast sweep speeds for minimized test times and improved throughput |
| Dynamic Range | Wide dynamic range enabling accurate measurements |
| Directivity | Excellent corrected directivity for reduced measurement uncertainty |
| Time Domain | Optional time domain with time gating for faster and easier fault identification |
| Interfaces | Industry-standard LAN for robust remote control, USB ports for peripherals, faster than GPIB |
| Data Storage | Standard removable hard drive for added security in military and government applications |
| Form Factor | Compact 2U package for efficient rack space use |
| Software | Common GUI and SCPI command interface within ShockLine family; Universal Fixture Extraction (UFX) software for advanced de-embedding |
| Benefits | Cost-effective solution with enhanced accuracy, security, and usability |
