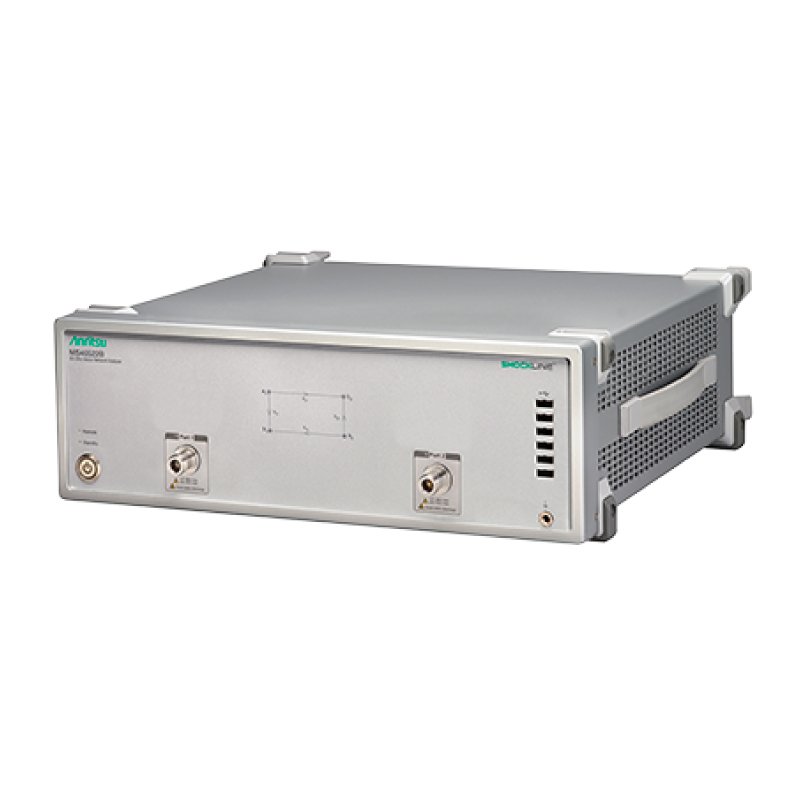

MS46522B ShockLine 2-Port Performance VNA
Vector network analyzer for millimeter-wave applications.
Key Features
- Guaranteed performance to 43.5 GHz with Extended K ports
- High output power allows measurement of high attenuation devices
- Advanced time domain option provides tools for signal integrity analysis
- Wide dynamic range enables measurement of very low reflection artifacts
- Excellent corrected directivity minimizes measurement uncertainty
- SmartCal auto calibration unit reduces calibration and setup time
- Time domain with time gating option grants easier and faster fault identification
- Modern LAN interface for remote control is faster than GPIB
- A common GUI and SCPI interface within the ShockLine family
- Bias tee option simplifies test setups where the DUT needs DC biasing
- Universal Fixture Extraction (UFX) software option provides advanced de-embedding tools for test fixture extraction

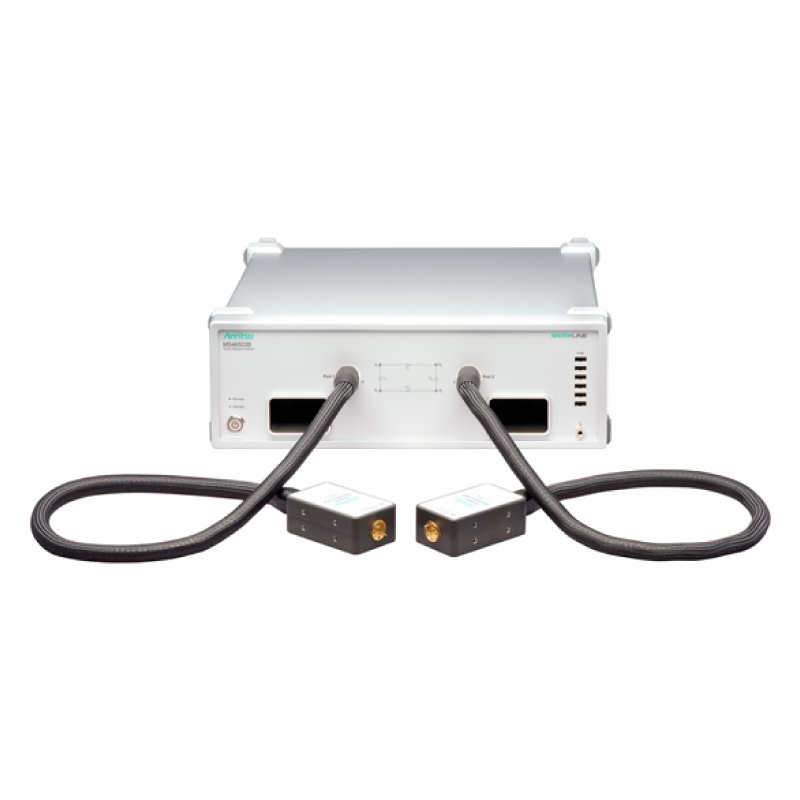

- E-Band VNA - Extended frequency range covering E-band and major parts of V band
- E-Band VNA - Fully assembled test system eliminates setup errors and increases reliability
- E-Band VNA - Tethered modules connect directly to the DUT increasing measurement stability
Technical Specifications
| Frequency Range | Up to 43.5 GHz (guaranteed performance with Extended K ports) |
|---|---|
| Number of Ports | 2-port |
| Output Power | High output power suitable for measuring high attenuation devices |
| Dynamic Range | Wide dynamic range for accurate measurements of low reflection artifacts |
| Directivity | Excellent corrected directivity minimizing measurement uncertainty |
| Calibration | SmartCal auto calibration unit to reduce calibration and setup time |
| Time Domain | Advanced time domain option with time gating for fault identification |
