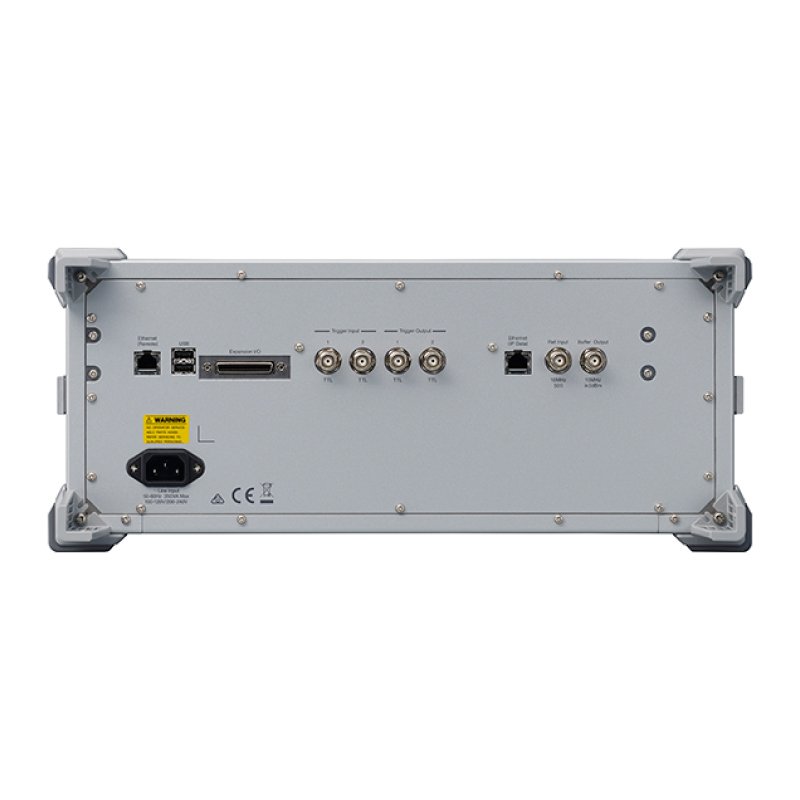

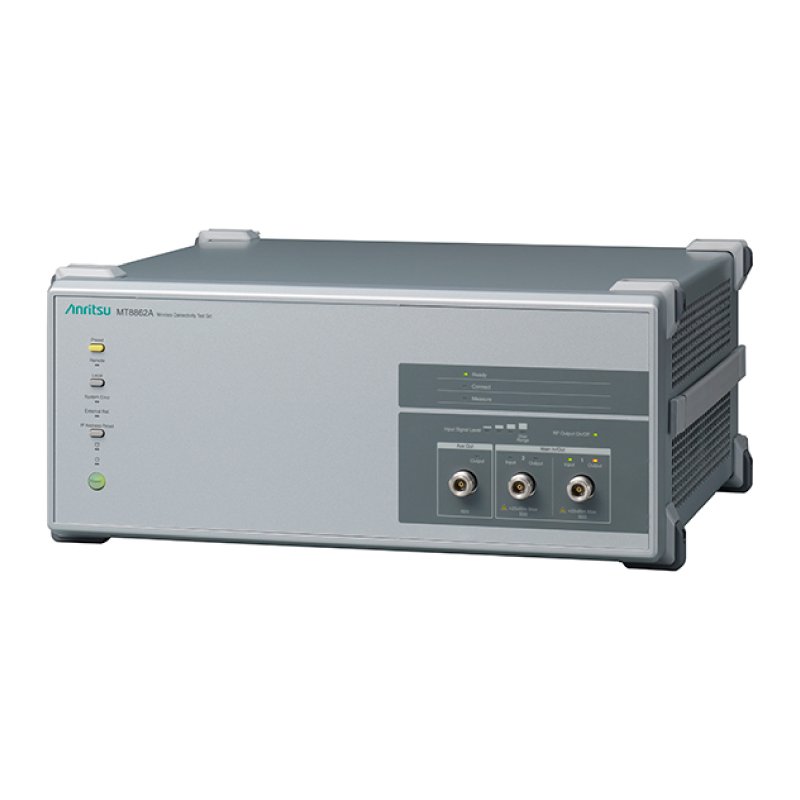

MT8862A Wireless Connectivity Test Set
The Wireless Connectivity Test Set MT8862A (WLAN Tester) is for measuring the RF TRx characteristics of WLAN IEEE 802.11a/b/g/n/ac/ax/be (2.4 GHz, 5 GHz and 6 GHz bands) devices. The MT8862A has standard WLAN protocol messages (WLAN Signalling) to connect with the device under test (DUT) for measuring each TRx performance item as Network Mode, and features built-in Direct Mode to support flexible test environment.
Key Features
- Network Mode: Connection establishment with WLAN devices using WLAN protocol messaging (WLAN Signalling) makes measurement available.
- IEEE802.11a/b/g/n/ac/ax/be including 6 GHz band support
- 2x2 MIMO Rx sensitivity and Tx power measurement functions
- Supports secure WEP, WPA-Personal, WPA2-Personal and WPA3-Personal encrypted connections.
- Tx measurements (Tx power, modulation accuracy, etc.) using ICMP echo request.
- PER (packet error rate) measurement using ACK count for Bathtub curve generation as Rx measurements
- Remote control and display of measurement results from Web browser using built-in Web server
- Connection troubleshooting by capturing and analyzing WLAN protocol message
- Sending/receiving IP data to/from external server using built-in IP interface
Technical Specifications
| Type | Wireless Connectivity Test Set |
|---|---|
| Category | mobile-wireless-communications |
| Supported Standards | IEEE 802.11a/b/g/n/ac/ax/be including 2.4 GHz, 5 GHz and 6 GHz bands |
| Security Support | Secure connections with WEP, WPA-Personal, WPA2-Personal, WPA3-Personal |
| Tx Measurement Method | Tx measurements using ICMP echo request |
| Remote Control | Control and display measurement results from Web browser via built-in Web server |
| Troubleshooting | Capture and analyze WLAN protocol messages for connection troubleshooting |
| IP Interface | Send/receive IP data to/from external servers using built-in IP interface |
| Applications | Measurement of RF TRx characteristics and performance of WLAN devices |
