MU909014A1 OTDR Module

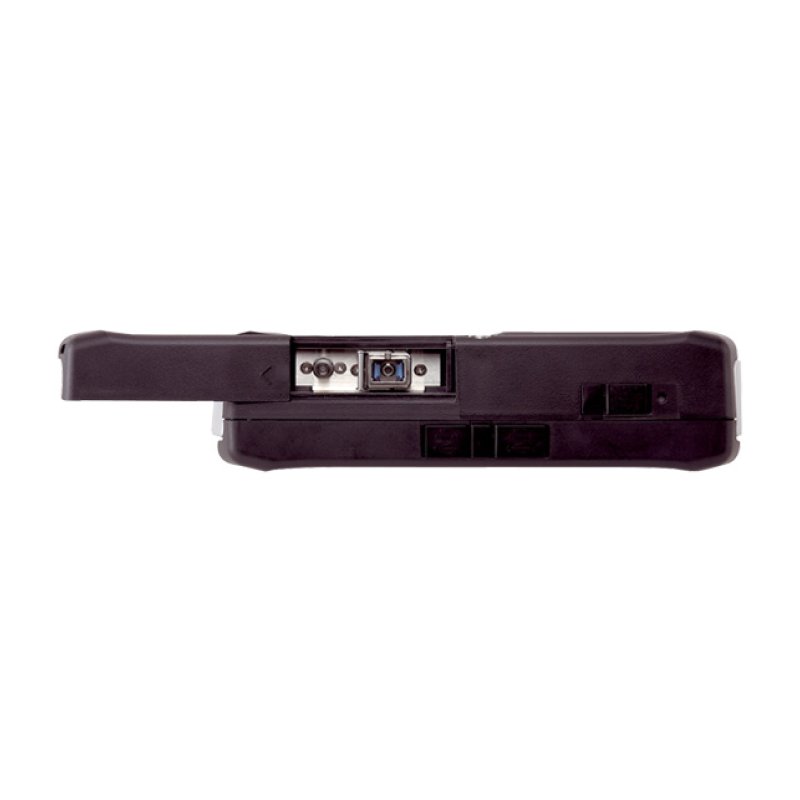

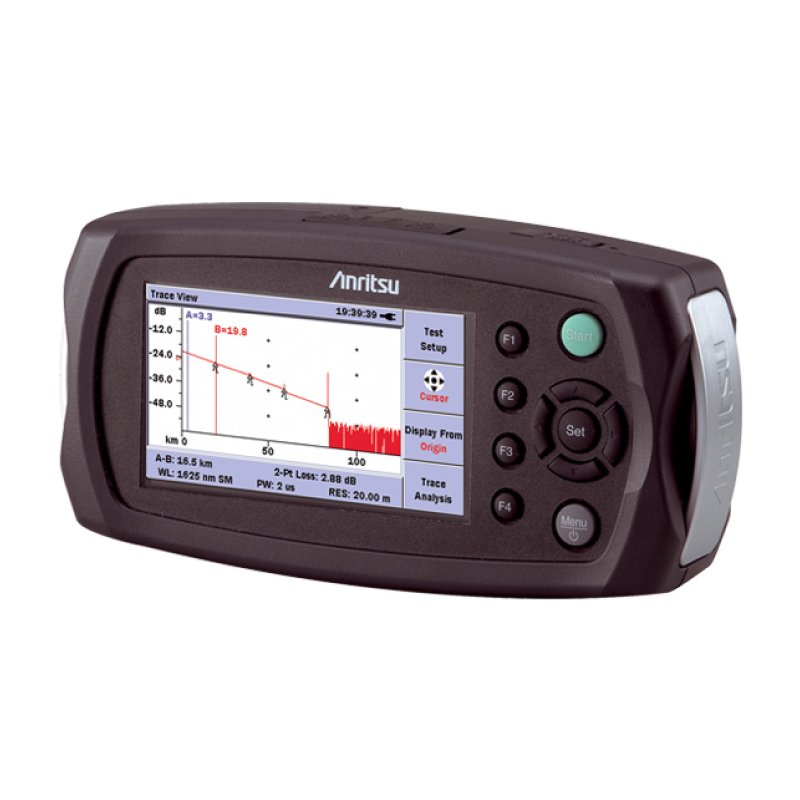

Introducing the handheld OTDR that does not compromise performance the Anritsu µOTDR MU909014A1 from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Anritsu Network Master MT9090A has created a class of test instruments. It features 5 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3-feet) and a dynamic range of up to 32.5 dB enough to test over 150 km (90 miles) or PON-based FTTx networks featuring up to a 1 x 64 split. The Anritsu MT9090A also takes portability to a new level by being the first handheld OTDR that truly fits in the palm of your hand.
Key Features
- High-end OTDR performance in a pocket-size package
- Exclusive, integrated launch fiber provides accurate initial connector measurement without external devices
- Excellent mid-range performance where it matters most
- "Fiber Visualizer" mode simplifies operation, no OTDR knowledge needed
- Bluetooth, Wi-Fi and Ethernet connectivity
- Complete PON testing through splitters up to 1 x 64
- High resolution and extremely short deadzones ensure thorough short fiber evaluation
- Rugged, sealed design provides years of service in the most challenging environments
- High resolution, widescreen color display that is easy to read indoors or out
- Modular platform ensures maximum return on investment
- Compact and lightweight design for maximum portability in the field
- Complete fiber maintenance tool including optical power meter and visible source "red light"
- 1625 nm & 1650 nm models for in-service maintenance and troubleshooting
- High performance without a high price
Technical Specifications
| Type | OTDR Module |
|---|---|
| Category | optical-measuring-instruments |
| Resolution | 5 cm data sampling for accurate event mapping |
| Deadzone | < 1 meter |
| Dynamic Range | Up to 32.5 dB |
| PON Testing | Complete PON testing through splitters up to 1 x 64 |
| Built-in Functions | Optical power meter, visible source ("red light"), integrated launch fiber for initial connector measurement |
| Wavelength Models | 1625 nm and 1650 nm models for in-service maintenance and troubleshooting |
| Connectivity | Bluetooth, Wi-Fi, Ethernet |
| Display | High resolution, widescreen color display, easy to read indoors and outdoors |
| Design | Compact, lightweight, rugged sealed design for durable field use |
| User Interface | "Fiber Visualizer" mode for simplified operation without OTDR expertise |
| Performance | High-end OTDR performance comparable to larger devices |
| Platform | Modular design to maximize return on investment |
| Applications | Installation, maintenance, and troubleshooting of optical fibers including FTTx and PON networks |
| Portability | Handheld design that fits in the palm of your hand |
| Durability | Provides years of service in challenging environments |
| Additional Features | High performance without a high price |
