MU909014B/14B1/15B/15B1 OTDR Module Series

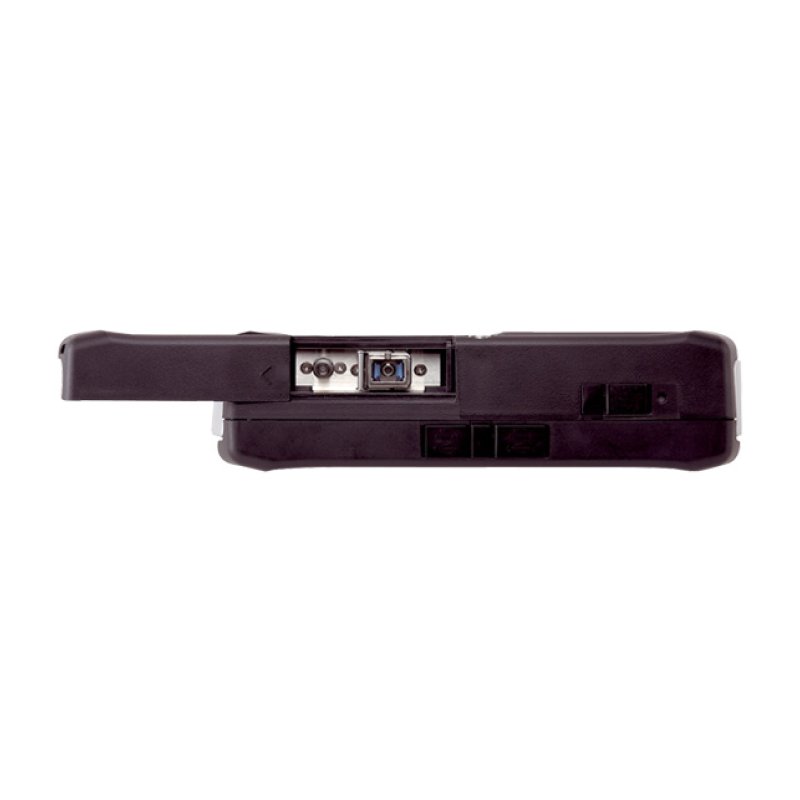

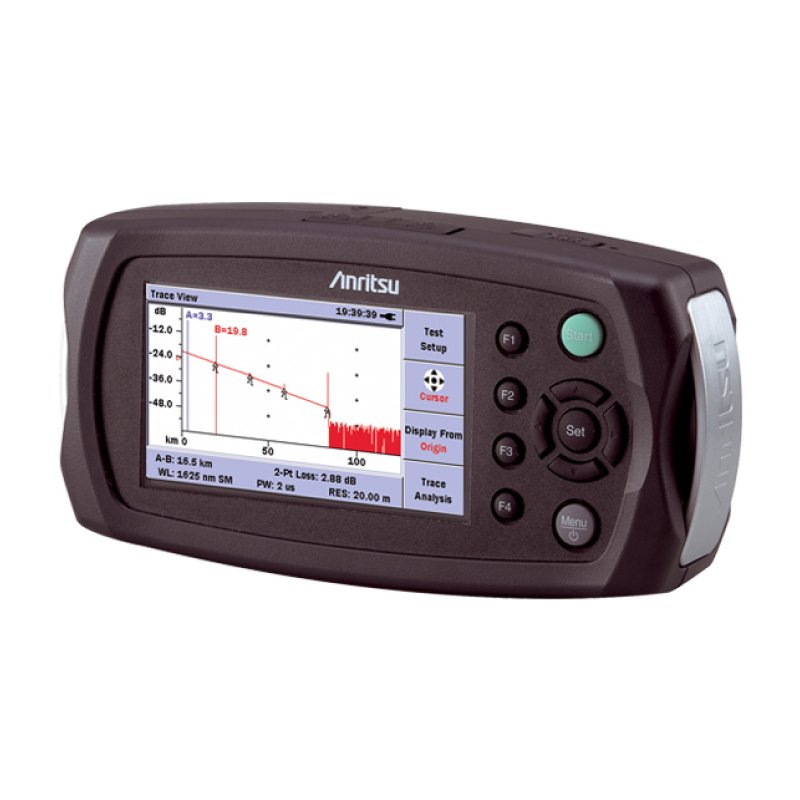

Introducing the handheld OTDR that does not compromise performance the Anritsu µOTDR MU909014B/14B1/15B/15B1 from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Anritsu Network Master MT9090A has created a class of test instruments. It features 5 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3-feet) and a dynamic range of up to 37 dB enough to test over 150 km (90 miles) or PON-based FTTx networks featuring up to a 1 x 64 split. The MT9090A also takes portability to a level by being the handheld OTDR that truly fits in the palm of your hand.
Key Features
- High-end OTDR performance in a pocket-size package
- Exclusive, integrated launch fiber provides accurate initial connector measurement without external devices
- Excellent mid-range performance where it matters most
- "Fiber Visualizer" mode simplifies operation, no OTDR knowledge needed
- Bluetooth, Wi-Fi and Ethernet connectivity
- Complete PON testing through splitters up to 1 x 64
- High resolution and extremely short deadzones ensure thorough short fiber evaluation
- Rugged, sealed design provides years of service in the most challenging environments
- High resolution, widescreen color display that is easy to read indoors or out
- Modular platform ensures maximum return on investment
- Compact and lightweight design for maximum portability in the field
- Complete fiber maintenance tool including optical power meter and visible source "red light"
- High performance without a high price
Technical Specifications
| Type | OTDR Module Series |
|---|---|
| Category | optical-measuring-instruments |
| Resolution | 5 cm data sampling for accurate event mapping |
| Deadzone | < 1 meter |
| Dynamic Range | Up to 37 dB |
| PON Testing | Complete PON testing through splitters up to 1 x 64 |
| Built-in Functions | Optical power meter, visible source ("red light"), integrated launch fiber for initial connector measurement |
| Connectivity | Bluetooth, Wi-Fi, Ethernet |
| Display | High resolution, widescreen color display, easy to read indoors and outdoors |
| Design | Compact, lightweight, rugged sealed design for durable field use |
| User Interface | "Fiber Visualizer" mode for simplified operation without OTDR expertise |
| Performance | High-end OTDR performance comparable to larger devices |
| Platform | Modular design to maximize return on investment |
| Applications | Installation, maintenance, and troubleshooting of optical fibers including FTTx and PON networks |
| Portability | Handheld design that fits in the palm of your hand |
| Durability | Provides years of service in challenging environments |
| Additional Features | Complete fiber maintenance toolset in one compact unit |
