MU909014C/14C6/15C/15C6 OTDR Module Series

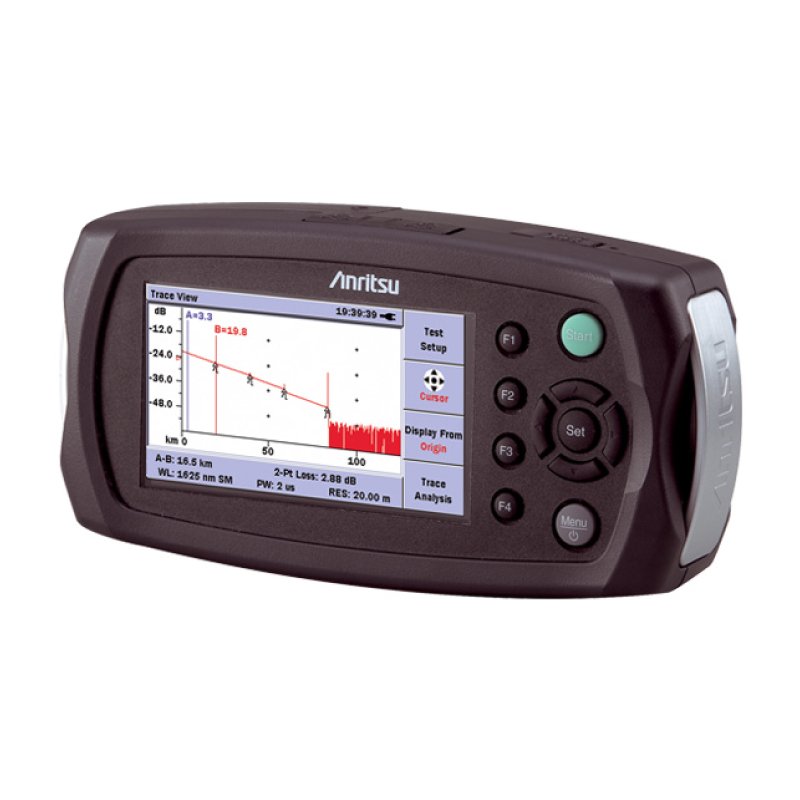

Introducing the handheld OTDR that does not compromise performance the Anritsu µOTDR MU909014C/14C6/15C/15C6 from Anritsu. With performance that rivals traditional OTDRs that are four times the size and more than double the price, the Anritsu Network Master MT9090A has created a class of test instruments. It features 2 cm resolution for accurate mapping of events, deadzones of less than 1 meter (3-feet) and a dynamic range of up to 38 dB enough to test over 150 km (90 miles) or PON-based FTTx networks featuring up to a 1 x 64 split. The Anritsu MT9090A also takes portability to a level by being the handheld OTDR that truly fits in the palm of your hand.
Key Features
- Tri-wavelength OTDR for both installation and maintenance (1310 nm/1550 nm plus filtered 1650 nm or 1625 nm) in one unit for both installation and maintenance market.Wide attenuation range
- Built-in PON Power Meter, Loss Test Set and Light Source functions
- High-end OTDR performance in a pocket-size package
- Exclusive, integrated launch fiber provides accurate initial connector measurement without external devices
- Excellent mid-range performance where it matters most
- "Fiber Visualizer" mode simplifies operation, no OTDR knowledge needed
- Bluetooth, Wi-Fi and Ethernet connectivity
- Complete PON testing through splitters up to 1 x 64
- High resolution and extremely short deadzones ensure thorough short fiber evaluation
- Rugged, sealed design provides years of service in the most challenging environments
- High resolution, widescreen color display that is easy to read indoors or out
- Modular platform ensures maximum return on investment
- Compact and lightweight design for maximum portability in the field
- High performance without a high price
Technical Specifications
| Type | OTDR Module Series |
|---|---|
| Category | optical-measuring-instruments |
| Wavelengths | Tri-wavelength (1310 nm, 1550 nm, plus filtered 1650 nm or 1625 nm) |
| Resolution | 2 cm data sampling for accurate event mapping |
| Deadzone | < 1 meter |
| Dynamic Range | Up to 38 dB |
| PON Testing | Complete PON testing through splitters up to 1 x 64 |
| Built-in Functions | PON Power Meter, Loss Test Set, Light Source |

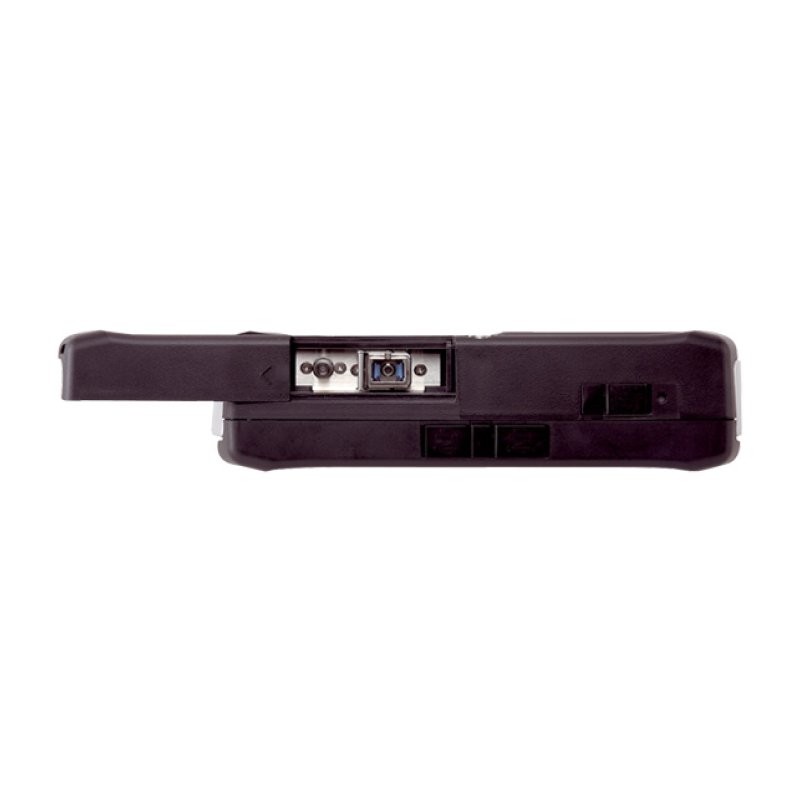

| Launch Fiber | Integrated launch fiber for accurate initial connector measurement without external devices |
| Connectivity | Bluetooth, Wi-Fi, Ethernet |
| Display | High resolution, widescreen color display readable indoors and outdoors |
| Design | Compact, lightweight, rugged sealed design for field durability |
| User Interface | "Fiber Visualizer" mode for easy operation without OTDR expertise |
| Performance | High-end OTDR performance comparable to larger units |
| Platform | Modular design for maximum ROI (return on investment) |
| Applications | Installation, maintenance, and troubleshooting of optical fibers including FTTx and PON networks |
| Portability | Fits comfortably in the palm of your hand with high portability |
| Environmental | Suitable for use in challenging environments due to rugged sealing |
