MU909060A Gigabit Ethernet Modules

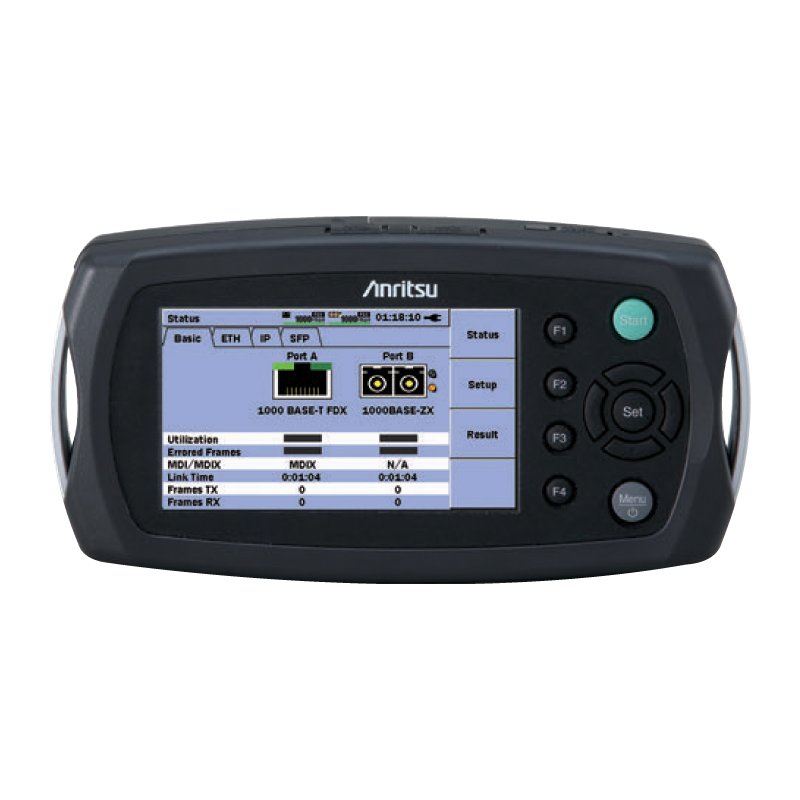

When outfitted with the Gigabit Ethernet module, the very compact battery-powered, easy-to-use Anritsu Network Master is a comprehensive solution for Gigabit Ethernet testing and for installation and troubleshooting Ethernet communication lines. The instrument gives the user facilities for easy bandwidth verification, connectivity testing and service availability verification. The compact size and light weight of the instrument makes it very easy to carry around for field technicians working with the Ethernet lines. Despite the small size, the instrument is equipped with a large display so the user can easily read and interpret information from the tested lines off the large color display with easy-to-understand colors and graphical symbols. The graphical user interface also makes it a simple task to configure and operate the instrument.
Key Features
- Versatile, purpose-built solution for Gigabit Ethernet field testing
- Comprehensive Ethernet testing for installation, maintenance and troubleshooting
- Ping test, traceroute test and Electrical cable diagnostics
- Two ports simultaneously work for shortening multiple ports installation, including pass through test and in-line monitoring test
- Option for automated ITU-T Y.1564 testing, simultaneously testing of multiple traffic streams emulating real world networks
- Option for automated RFC 2544 testing
- Test Automator simplifies operation and ensure proper set-up
- Channel Stats option identifies error streams, top talkers and network attack
- Service disruption time measurement to test the performance of realtime applications like VoIP and IPTV
- Pass/Fail identification and graphical result display
- PDF and CSV report generation for documentation of test results
- High resolution, widescreen color display that is easy to read indoors or out
- Rugged design provides years of service for the users
- Modular platform ensures maximum return on investment
- Compact and lightweight design for maximum portability in the field
- High performance without a high price
Technical Specifications
| Type | Gigabit Ethernet Test Module |
|---|---|
| Application | Installation, maintenance, and troubleshooting of Ethernet communication lines |

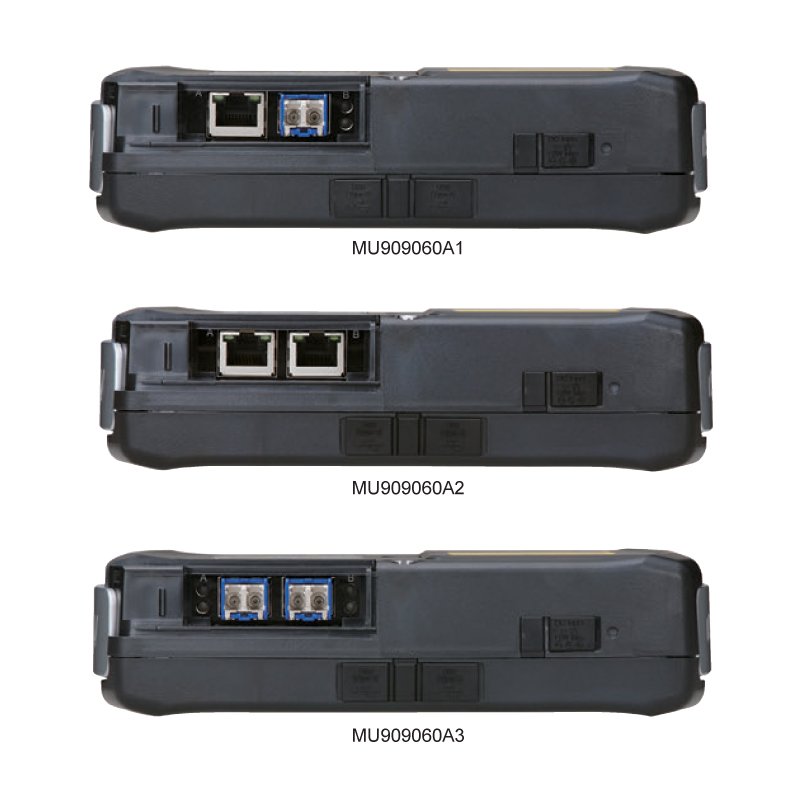

| Port Count | 2 ports operating simultaneously for multi-port installation and inline monitoring |
| Performance Monitoring | Channel statistics with error stream identification, top talkers, and network attack detection |
| Service Verification | Service disruption time measurement for real-time applications like VoIP and IPTV |
| Results Display | Pass/Fail identification with graphical result display |
| Report Generation | PDF and CSV formats for documentation |
| Display | High-resolution widescreen color display, readable indoors and outdoors |
| Design | Compact, lightweight, rugged design for portability and durability |
| Platform | Modular platform for maximum return on investment |
| User Interface | Easy-to-use graphical user interface with colors and graphical symbols |
| Portability | Compact size and light weight for easy field technician use |
| Cost Efficiency | High performance without a high price |
