Cable & Antenna & PIM Analyzers

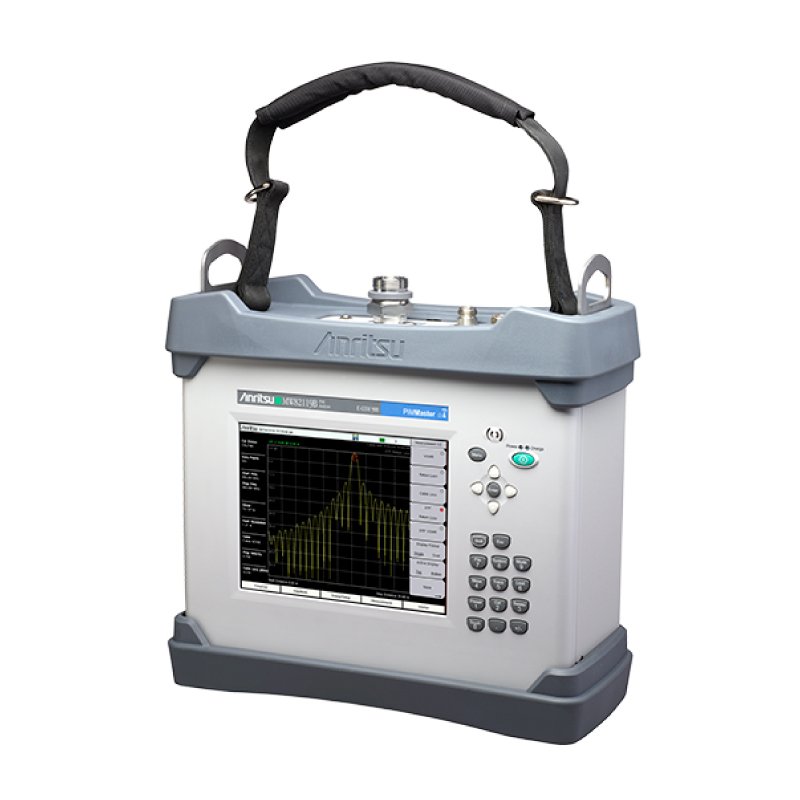

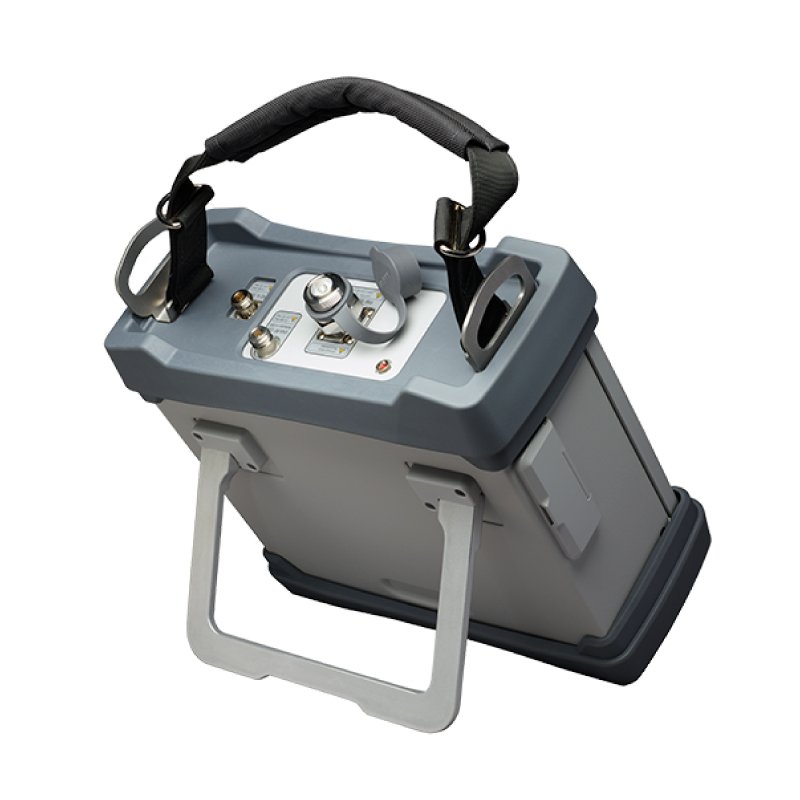

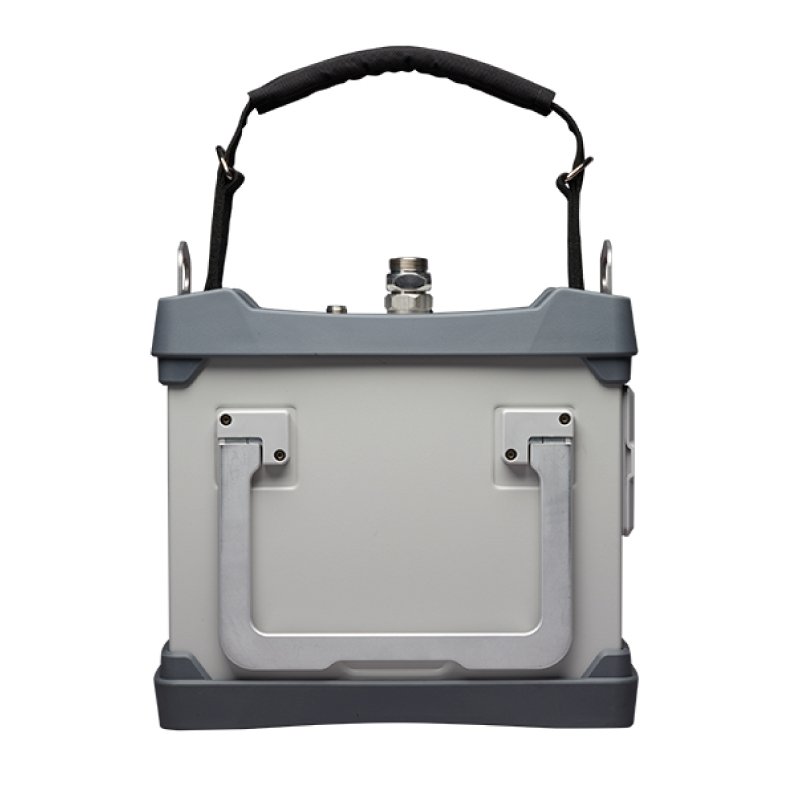

MW82119B PIM Master
PIM Master B-series is a 40 Watt, battery-operated PIM analyzer featuring Site Master line sweep capability. With the Site Master option included, the PIM Master is able to fully certify cable and antenna system performance, measuring PIM, Distance-to-PIM, Return Loss, VSWR, Cable Loss and Distance-to-Fault with a single test instrument.
Key Features
- Passive Intermodulation (PIM) Analyzer
- Battery Operated: >3 hours
- 20 dBm (0.1 Watt) to 46 dBm (40 Watt)
- Field-proven design: Rugged, compact, daylight viewable display
- Supported by Multiwave Smart Aligner Android application
- Compatible with SweepMasters SkyBridge Tools cloud-based trace management tool
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| Type | PIM Master |
|---|---|
| Category | mobile-wireless-communications |
| Function | Passive Intermodulation (PIM) Analyzer |
| Power | 40 Watt output power range from 20 dBm (0.1 Watt) to 46 dBm (40 Watt) |
| Operation | Battery operated with more than 3 hours of continuous use |
| Additional Capabilities | Site Master line sweep capability for certifying cable and antenna system performance |
| Measurements | PIM, Distance-to-PIM, Return Loss, VSWR, Cable Loss, Distance-to-Fault |
| Design Features | Rugged, compact with daylight viewable display |
| Software Support | Supported by Multiwave Smart Aligner Android application |
| Cloud Compatibility | Compatible with SweepMasters SkyBridge Tools cloud-based trace management |
| Warranty | Standard three-year warranty with one-year battery warranty |
