MX280005A Q Signal Master Vector Signal Analysis Software
Anritsu IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on Anritsu MS2090A, MS27201A and MS2710XA spectrum analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements and playback IQ data with high frequency and time resolution.
Key Features
- PC application for IQ data capture and post processing

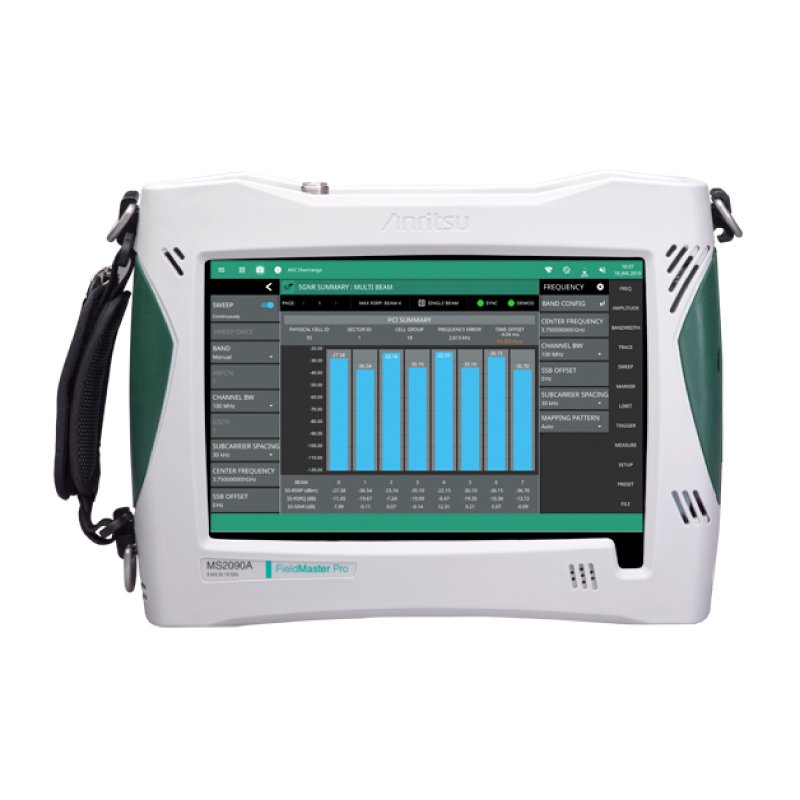

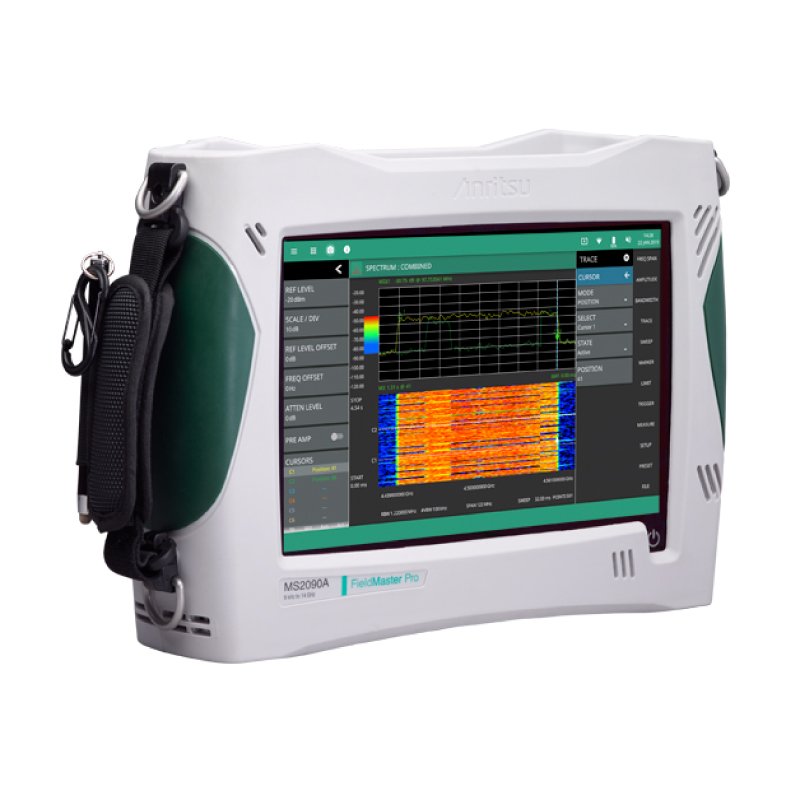

- Compatible with MS2090A, MS27201A, and MS2710XA spectrum analyzers
- IQ file browser with detailed view of IQ file metadata
- IQ data capture control from within the MX280005A GUI
- Basic IQ data viewer
- IQ Player offers high resolution Frequency vs Time display
- AM/FM demodulation
- Spectrum view of data window in capture
- IQ file format converter
- Continuous or single shot captures
- Modulation quality and analysis of common modulation standards
Technical Specifications
| Type | Q Signal Master Vector Signal Analysis Software |
|---|---|
| Category | signal-spectrum-analyzer |
| Function | PC application for IQ data capture and post processing |
| Compatibility | Works with Anritsu MS2090A, MS27201A, and MS2710XA spectrum analyzers |
| Features | IQ file browser with detailed metadata view |
| Purpose | Provides comprehensive post-processing and analysis of IQ data files captured on supported Anritsu spectrum analyzers |
