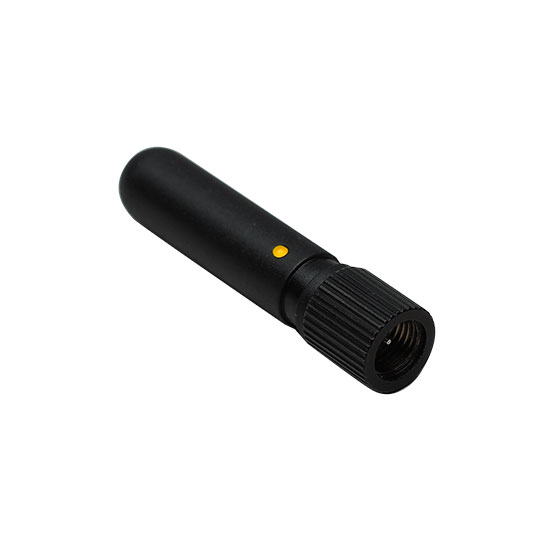

Portable Antenna 2000-1475-R
The 2000-1475-R a compact and lightweight portable antenna designed for easy deployment in various field environments. Built for durability and reliable signal performance, suitable for professional measurement and testing applications.
Key Features
- Compact and convenient for handheld instruments
- Operates across two sub-bands
- Meaning it doesn’t boost signal strength but provides reliable omnidirectional reception
- Compatible with most handheld analyzers
- Suitable for low-power field testing
- Indicating moderate impedance match efficiency
- Ideal for portability
Technical Specifications
| Model | 2000-1475-R |
|---|---|
| Type | Quarter-wave helical portable antenna |
| Frequency Coverage | 1920–1980 MHz 2110–2170 MHz |
| Gain | Nominal 0 dBi |
| Connector. | Equipped with an SMA male (SMA m) connector |
| Power Handling | Rated for 5 Watt |
| VSWR (Max) | Up to 3.0:1 |
| Antenna Length | Compact form factor—approximately 4.5 cm |
