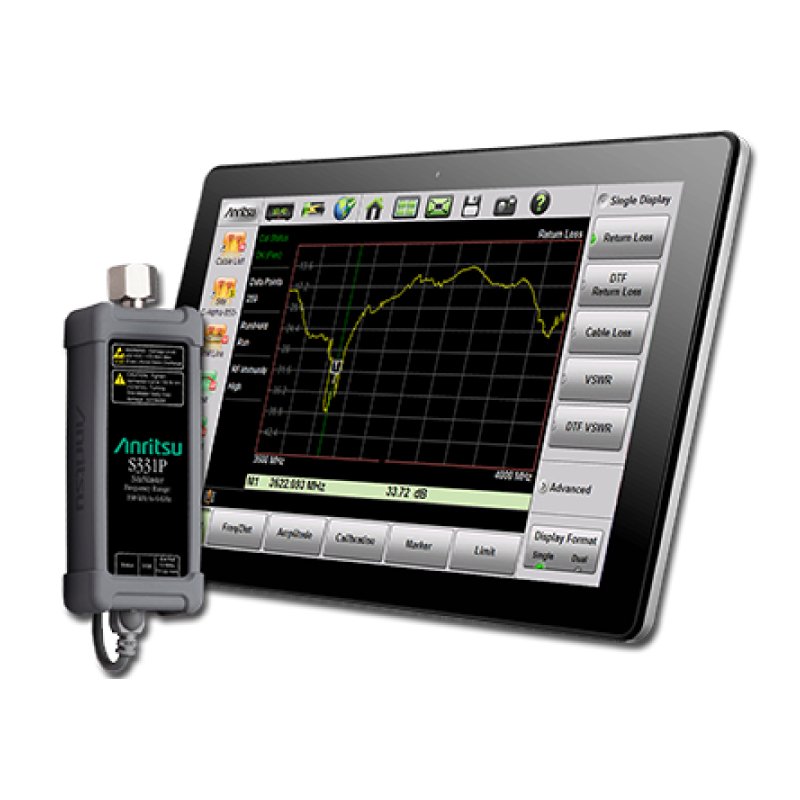

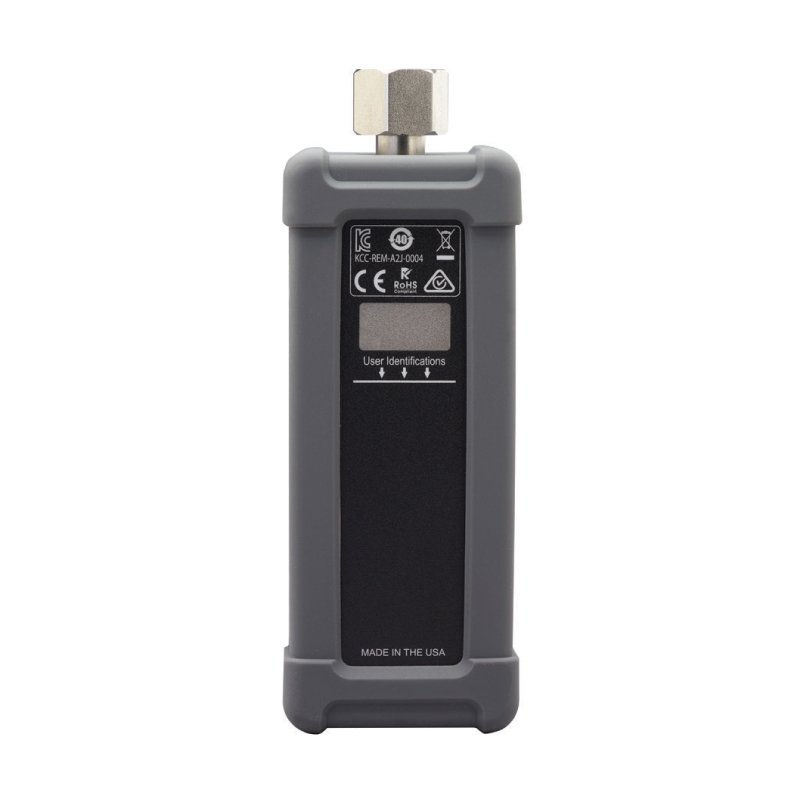

S331P Site Master Ultraportable Cable and Antenna Analyzer
The S331P is an ultraportable version of the industry-leading Site Master Series of Cable and Antenna Analyzers. It is the smallest, lightest, fastest, and most cost effective instrument in the Site Master family. No battery is required, since the USB port of Windows 7, 8 & 10 tablet devices, laptops or desktop PCs power it. Available with two frequency ranges starting from 150 kHz up to 4 GHz and 150 kHz to 6 GHz, it is the only small headless Site Master product capable of measurements down to 150 kHz for low frequency radio communications applications and up to 6 GHz for higher frequency applications like LTE-U in the 5 GHz unlicensed spectrum. Compatible with the Smart Aligner Android application for the generation of site close out reports including antenna alignment results from Multiwave tools and line sweep results.
Key Features
- Smallest, lightest, and fastest Site Master
- Direct connection to DUTs eliminating the need for phase stable cables
- Powered through USB interface (No battery required)
- Rugged and reliable
- Impact, dust and splash resistant
- Factory default 1-Port ReadyCal (automatically applied to all measurements except Transmission)
- Compatible with Anritsu Software tools including easyTest Tools
- Supported by Multiwave Smart Aligner Android application
Technical Specifications
| Type | Site Master Ultraportable Cable and Antenna Analyzer |
|---|---|
| Category | mobile-wireless-communications |
| Frequency Range | 150 kHz to 4 GHz, 150 kHz to 6 GHz (model dependent) |
| Power Supply | Powered via USB interface from Windows 7, 8 & 10 tablets, laptops, or desktop PCs (no battery required) |
| Size & Weight | Smallest and lightest model in the Site Master family |
| Connectivity | Direct connection to Device Under Test (DUT), eliminating need for phase stable cables |
| Durability | Rugged, impact, dust, and splash resistant design |
| Calibration | Factory default 1-Port ReadyCal applied automatically to all measurements except Transmission |
| Software Compatibility | Compatible with Anritsu easyTest Tools and Multiwave Smart Aligner Android application |
| Applications | Cable and antenna analysis, site close out reporting, antenna alignment, low frequency radio communication and LTE-U measurements |
| User Interface | Headless design controlled via connected devices |
| Performance | Fast measurement speed optimized for field work |
