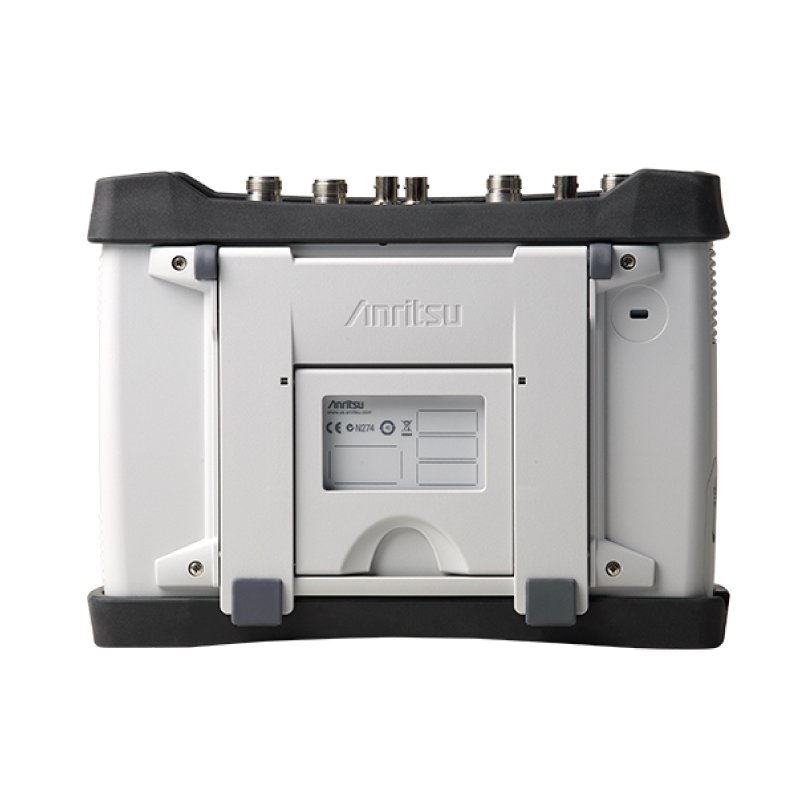

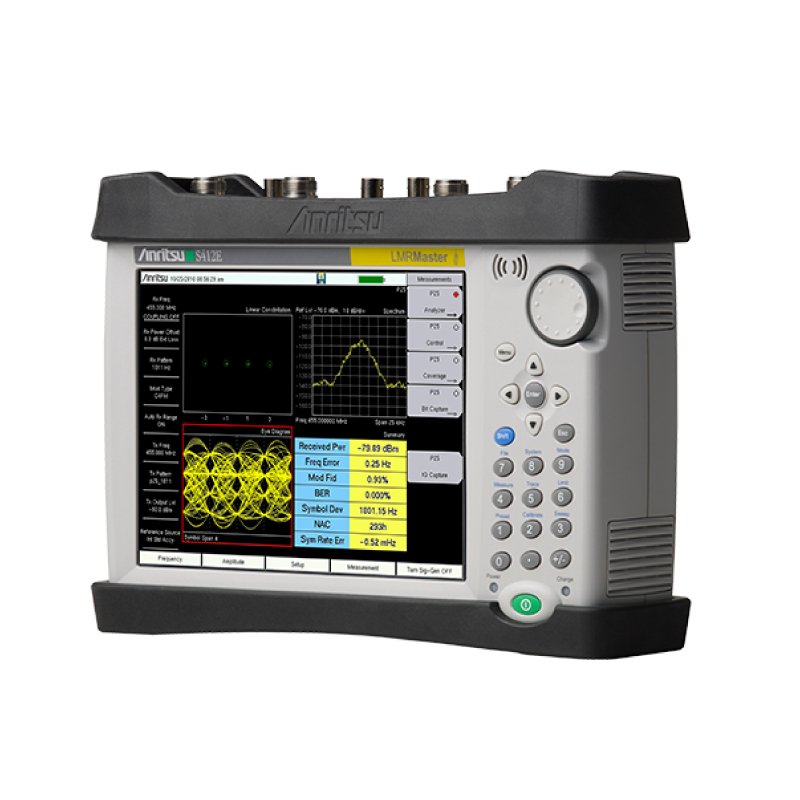

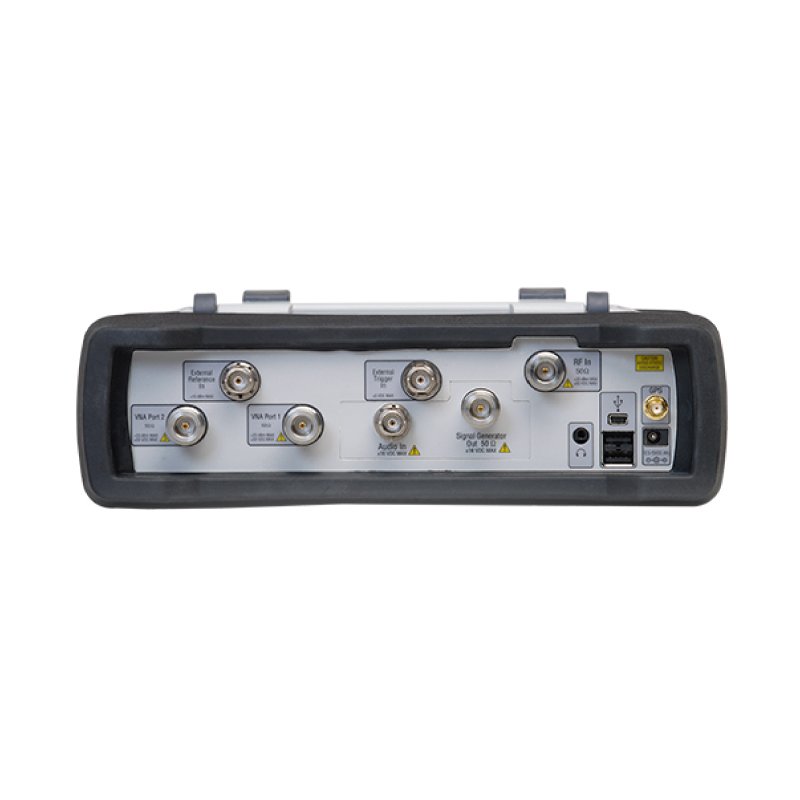

S412E LMR Master Land Mobile Radio Modulation Analyzer
The LMR Master S412E is Anritsu's second-generation solution for installing and maintaining public safety systems. Built on Anritsu's ninth-generation handheld platform, this solution combines a high-performance receiver/spectrum analyzer with the world's most advanced handheld vector network analyzer (VNA). It also includes a CW/P25 (Phase 1 & Phase 2), DMR (MotoTRBO™), TETRA, NXDN™, and PTC-ITCR plus PTC-ACSES analyzer and signal generator with internally adjustable power from 0 dBm to –130 dBm.
Key Features
- LMR Signal Analyzers with Coverage Mapping: P25, P25 Phase 2, DMR (MotoTRBO™), TETRA, NXDN, dPMR, PTC-ITCR, PTC-ACSES, NBFM, FDD & TDD LTE
- Broadband Signal Analyzers: LTE, WiMAX
- Interference Analyzer with Interference Mapping and support for MA2700A Handheld Interference Hunter
- Auto Test and Alignment of Motorola APX P25 mobiles and portables
- Direct measurement of up to 150 watt transmitters
- Spectrum Analyzer: 9 kHz – 1.6 GHz, optional to 6 GHz
- Cable and Antenna Analyzer: 500 kHz – 1.6 GHz, optional to 6 GHz
- Return Loss, VSWR, Insertion Loss, S11 / S21, DTF
- PIM Hunting
- Internal Power Meter, optional External Power Sensor
- Handheld, battery-operated design
- Weighs less than 7.6 lb (including battery)
- Rugged, field-proven design using Anritsu's 9th generation hardware platform
- Daylight viewable color touchscreen display
- Superior Immunity to RF interference
- Remote control via Ethernet
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| Type | LMR Master Land Mobile Radio Modulation Analyzer |
|---|---|
| Category | mobile-wireless-communications |
| Supported Systems | P25, P25 Phase 2, DMR (MotoTRBO™), TETRA, NXDN, dPMR |
| Auto Test/Alignment | Motorola APX P25 mobiles and portables |
| Transmitter Measurement | Direct measurement up to 150 W transmitters |
| Spectrum Analyzer | Frequency range 9 kHz to 1.6 GHz (optional to 6 GHz) |
| Cable and Antenna Analyzer | 500 kHz to 1.6 GHz (optional to 6 GHz) |
| Power Measurement | Internal power meter, optional external power sensor |
| Connectivity | Remote control via Ethernet |
| Warranty | Standard three-year warranty, Battery one-year warranty |
