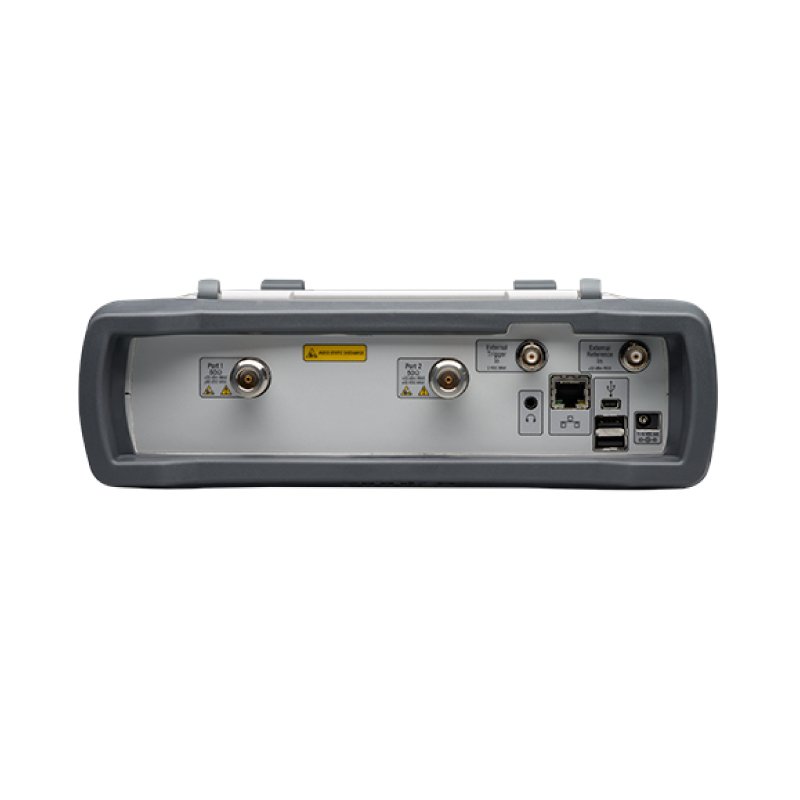

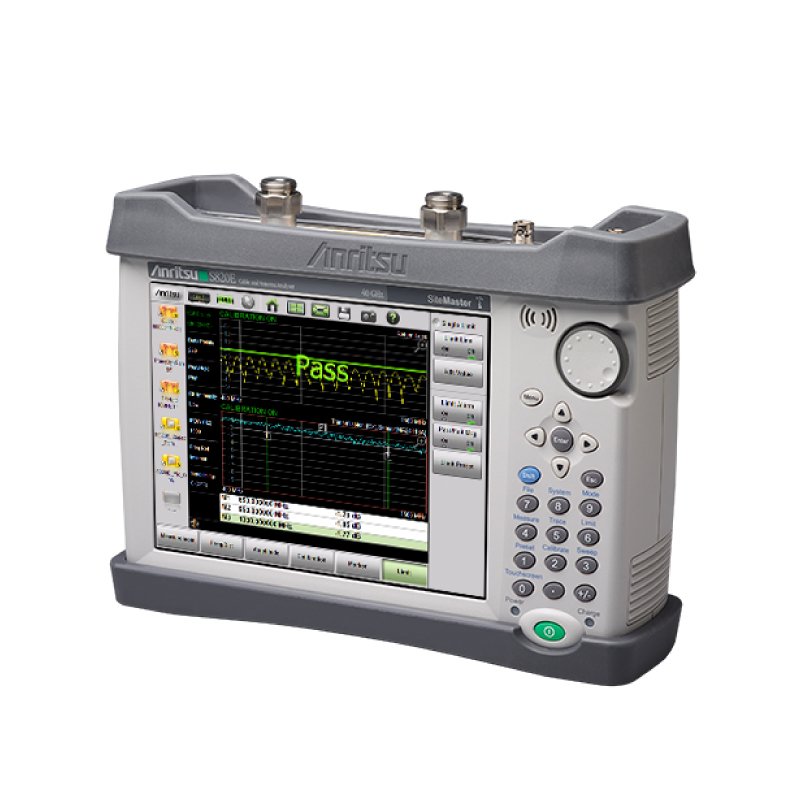

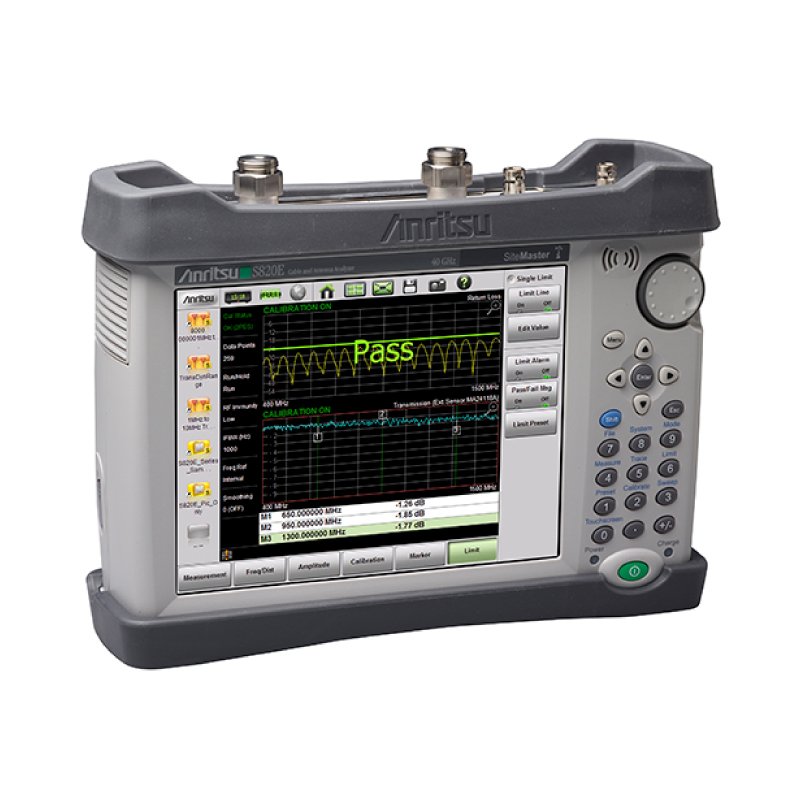

S820E Microwave Site Master Handheld Cable and Antenna Analyzer
The Anritsu Microwave Site Master S820E family with frequency options covering 1 MHz 8, 14, 20, 30, and 40 GHz, is the worlds most advanced Site Master ever developed. Available Vector Network Analyzer (VNA) and Vector Voltmeter (VVM) options allow users to easily expand the S820Es versatility at any time. Adding options to the Anritsu S820E is hassle free, simply purchase the desired option(s) and install the option activation key(s) provided by Anritsu. No need to send the instrument into a service department because all hardware and calibrations required are already built into the Anritsu S820E before it leaves the factory.
Key Features
- S820E frequency range: 1 MHz 8, 14, 20, 30, or 40 GHz
- VNA Mode (option) offers fully reversing 4 S-Parameter measurement capabilities
- VVM Mode (option) with standard A/B and B/A Ratio capability
- VIP Mode: Optical connector inspection with IEC 61300-3-35 based Pass/Fail standard (requires USB Video Inspection Probe G0306A, sold separately)
- 110 dB of dynamic range from 20 MHz 40 GHz
- 550 μs/data point for fast field measurements
- Advanced and Classic Mode GUI (i.e. S810D/S820D)
- Coaxial and waveguide measurement supported
- 1-port measurements: Return Loss, VSWR, Cable Loss, Distance-To-Fault, Smith Chart, 1-port phase
- 2-port measurements: Transmission Measurement and Swept Cable Loss
- High Accuracy Power Meter measurements with external power sensors
- USB/Ethernet connectivity, full remote control capability
- Intuitive menu-driven 8.4 inch touchscreen with daylight/nighttime viewable modes
- Field-proven design: Explosive Atmosphere MIL-PRF-28800F Section 4.5.6.3 compliant
- Supported by Multiwave Smart Aligner Android application
- Standard three-year warranty (battery one-year warranty)
Technical Specifications
| Type | Advanced RF Analyzer |
|---|---|
| Category | mobile-wireless-communications |
| Frequency Range Options | 1 MHz to 8 GHz, 14 GHz, 20 GHz, 30 GHz, or 40 GHz |
| Dynamic Range | 110 dB from 20 MHz to 40 GHz |
| Data Speed | 550 μs per data point for fast field measurements |
| User Interface | Intuitive menu-driven 8.4-inch touchscreen with daylight and nighttime viewable modes |
| Power Measurements | High accuracy power meter measurements with external power sensors |
| Connectivity | USB and Ethernet with full remote control capability |
| Design & Compliance | Rugged, field-proven design compliant with Explosive Atmosphere MIL-PRF-28800F Section 4.5.6.3 |
| Software Support | Supported by Multiwave Smart Aligner Android application |
| Additional Features | Coaxial and waveguide measurements supported; hardware and calibrations pre-installed; easy option upgrades via activation keys |
