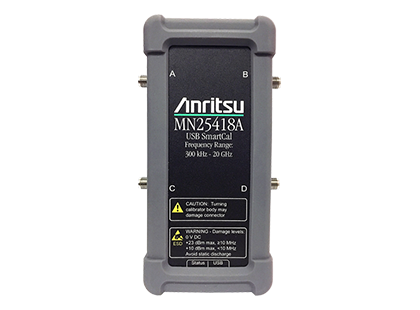

USB SmartCal Auto Calibration Module (4 Port) MN25418A
The SmartCal MN25418A is a series of 4-port auto calibration units covering a frequency range from 300 kHz to 20 GHz. The MN25418A comes with K(f) connectors on all ports. The MN25418A delivers automatic, fast and convenient multiport calibrations for any ShockLine VNA. The SmartCal automatically powers on via an USB connection and loads calibration kit coefficients from on-board memory into the ShockLine software. The SmartCal is ready to use immediately after detection by the VNA because it doesn't require warm-up.
Key Features
- Auto load of calibration kit coefficients, speeds up setup and reduces calibration error
- Prevents bad calibrations due to incorrect or poor connections
- Increases flexibility and simplifies multiport calibrations
- Simple, easy to use calibration software
- No internal heater and no wait calibration
- USB powered and controlled and nonvenient one plug interface
- Single connection calibrations and reduces wear and tear on connectors and cables
- Supports all ShockLine VNAs 1, 2, 4-port calibrations available
- SCPI command set, easy integration into automated test environments
- Automatic and fast calibrations at a low price
- Convenient size provides easier use when moving between VNAs
Technical Specifications
| Model | MN25418A |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Connectors | K(f) on all four ports |
| Power Source | USB-powered (no external power supply needed) |
| Port Mapping | Automatic port mapping to simplify multiport calibrations |
| Auto Detection | Automatically detected by ShockLine software upon connection |
